HRA21 SDA (HRA21) - Honda 21" Walk-Behind Mower, Made in Japan (SN: HRA21-1000001 - HRA21-9999999) HANDLEBAR Parts Diagram

21" Walk-Behind Mower, Made in Japan

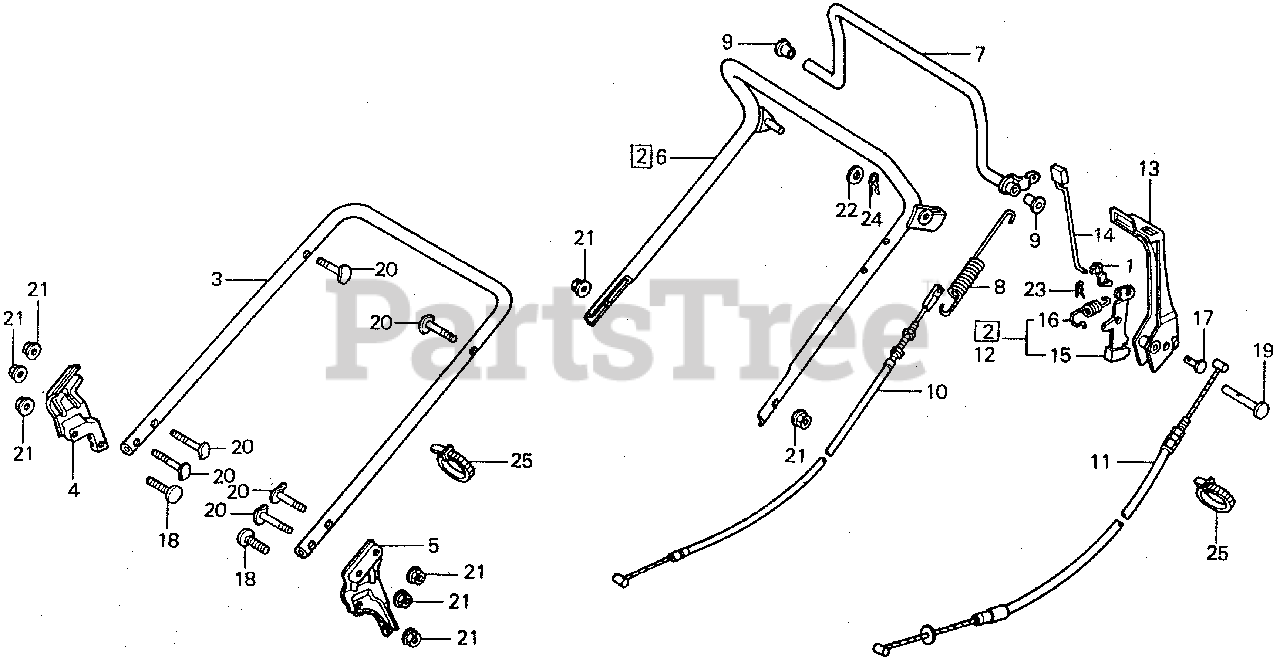

HANDLEBAR Parts Diagram

  • Title

1

Honda 16956-892-000

JOINT, ROD

$7.99

$

In Stock, only 3 left!

0

2

Honda 53010-963-000

SEE PART DETAILS - PRI; HANDLE SET (UPPER)

$

$

Not available

3

Honda 53110-963-000

PIPE, HANDLE (LOWER)

$

$

Not available

4

Honda 53115-963-000

STAY, R. HANDLE

$

$

Not available

5

Honda 53116-963-000

STAY, L. HANDLE

$

$

Not available

6

Honda 53010-963-000

SEE PART DETAILS - PRI; HANDLE SET (UPPER)

$

$

Not available

6

Honda 53150-963-000

SEE PART DETAILS - SUP; HANDLE SET (UPPER)
(Superseded to 53010-963-000)

$

$

Not available

6

Honda 53150-963-010

HANDLE SET (UPPER)

$

$

Not available

7

Honda 54410-963-000

LEVER, CLUTCH

$67.99

$

Usually ships in 3-6 days

0

8

Honda 54411-963-000

SPRING, CLUTCH (NOT AVAILABLE)

$

$

Not available

9

Honda 54412-952-770

BUSH, CLUTCH LEVER

$4.99

$

In Stock, Qty 20+

0

10

Honda 54510-963-000

CABLE, CLUTCH

$36.99

$

Usually ships in 3-6 days

0

11

Honda 54530-960-000

CABLE, ROTO-STOP CLUTCH

$

$

Not available

12

Honda 75011-963-000

SEE PART DETAILS - PRI; LEVER SET, LOCK

$

$

Currently unavailable

13

Honda 75161-963-000

LEVER, ROTO-STOP (NOT AVAILABLE)

$

$

Currently unavailable

14

Honda 75165-963-000

ROD, RATCHET PUSH (NOT AVAILABLE)

$9.49

$

Usually ships in 3-6 days

0

15

Honda 75166-963-000

SEE PART DETAILS - SUP; LEVER, LOCK

$

$

Not available

15

Honda 75166-963-020

SEE PART DETAILS - PRI; LEVER, LOCK

$

$

Not available

16

Honda 75168-963-000

SEE PART DETAILS - SUP; SPRING, RATCHET RETURN
(Superseded to 75168-963-010)

$3.49

$

Usually ships in 3-6 days

0

16

Honda 75168-963-010

SEE PART DETAILS - PRI; SPRING, RATCHET RETURN

$3.49

$

Usually ships in 3-6 days

0

17

Honda 77203-425-000

PIN, SEAT HINGE

$5.49

$

Usually ships in 3-6 days

0

18

Honda 90101-963-000

BOLT, SPECIAL (9X15)

$4.49

$

In Stock, only 2 left!

0

19

Honda 90106-960-770

PIN, CLUTCH LEVER (NOT AVAILABLE)

$

$

Currently unavailable

20

Honda 90109-963-000

BOLT, HANDLE HOLDER (NOT AVAILABLE)

$

$

Not available

21

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0481143).

$1.49

$

In Stock, Qty 20+

0

22

Honda 94101-08000

SEE PART DETAILS - PRI; WASHER, PLAIN (8MM) (Honda Code 0059097).

$1.49

$

In Stock, Qty 20+

0

23

Honda 94251-06000

PIN, LOCK (6MM) (Honda Code 0058487).

$1.49

$

In Stock, Qty 20+

0

24

Honda 94251-08000

SEE PART DETAILS - PRI; PIN, LOCK (8MM) (Honda Code 0115527).

$1.99

$

In Stock, Qty 20+

0

25

Honda 95014-62200

BAND B2, CABLE HARNESS

$2.49

$

Usually ships in 3-6 days

0
