HRA21 SDAW (HRA21) - Honda 21" Walk-Behind Mower, Made in Japan (SN: HRA21-1000001 - HRA21-9999999) PISTON + CRANKSHAFT Parts Diagram

21" Walk-Behind Mower, Made in Japan

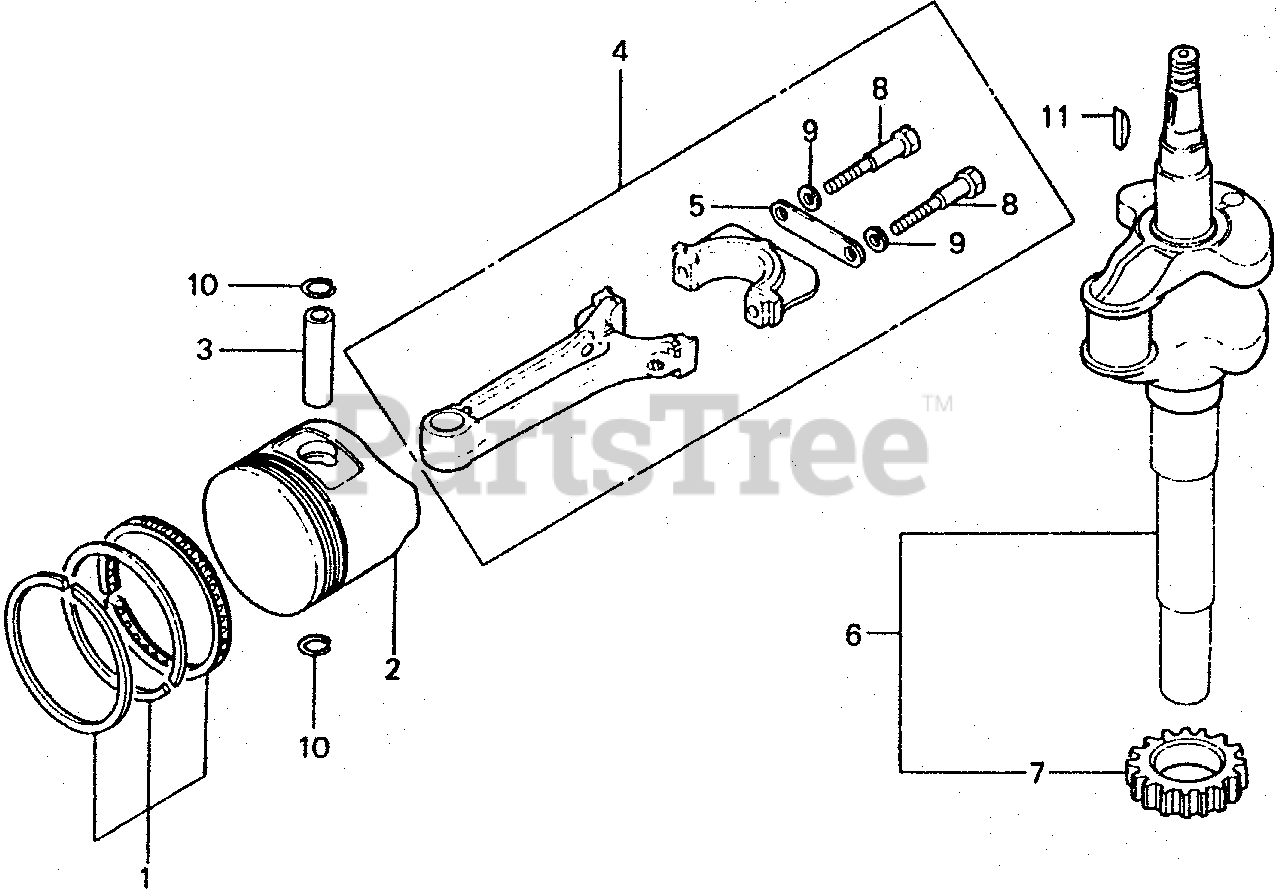

PISTON + CRANKSHAFT Parts Diagram

  • Title

1

Honda 13010-887-000

RING SET, PISTON (STD)

$32.99

$

In Stock, only 1 left!

0

1

Honda 13011-887-000

SEE PART DETAILS - PRI; RING SET, PISTON (0.25) (NOT AVAILABLE)

Note: (Optional).

$

$

Currently unavailable

1

Honda 13012-887-000

RING SET, PISTON (0.50) (NOT AVAILABLE)

Note: (Optional).

$

$

Not available

1

Honda 13013-887-000

RING SET, PISTON (0.75) (NOT AVAILABLE)

Note: (Optional).

$

$

Not available

2

Honda 13101-887-003

PISTON (STD)

$62.99

$

Usually ships in 3-6 days

0

2

Honda 13102-887-000

PISTON (0.25)

Note: (Optional).

$

$

Not available

2

Honda 13103-887-000

PISTON (0.50)

Note: (Optional).

$

$

Not available

2

Honda 13104-887-000

PISTON (0.75) (NOT AVAILABLE)

Note: (Optional).

$

$

Not available

3

Honda 13111-883-000

PIN, PISTON

$10.99

$

In Stock, only 1 left!

0

4

Honda 13200-888-030

ROD ASSY., CONNECTING

$67.99

$

Usually ships in 3-6 days

0

4

Honda 13200-888-335

ROD ASSY., CONNECTING (UNDER SIZE) (NOT AVAILABLE)

Note: (Optional).

$

$

Not available

5

Honda 13281-888-000

WASHER, CONNECTING ROD

$2.49

$

Usually ships in 3-6 days

0

6

Honda 13310-952-000

CRANKSHAFT (NOT AVAILABLE)

$

$

Currently unavailable

7

Honda 14311-888-300

GEAR, TIMING

$

$

Not available

8

Honda 90001-883-020

BOLT, CONNECTING ROD (7MM)

$3.99

$

Usually ships in 3-6 days

0

9

Honda 90432-889-003

WASHER, LOCK (7MM)

$1.99

$

Usually ships in 3-6 days

0

10

Honda 90551-883-000

SEE PART DETAILS - SUP; CLIP, PISTON PIN (15MM)
(Superseded to 94601-15000)

$1.49

$

Usually ships in 3-6 days

0

10

Honda 94601-15000

SEE PART DETAILS - PRI; CLIP, PISTON PIN (15MM)

$1.49

$

Usually ships in 3-6 days

0

11

Honda 13331-357-000

KEY, SPECIAL WOODRUFF (25X18)

$4.49

$

In Stock, Qty 12

0
