HRA21 SDAW (HRA21) - Honda 21" Walk-Behind Mower, Made in Japan (SN: HRA21-1000001 - HRA21-9999999) REDUCTION CASE + FINAL SHAFT Parts Diagram

21" Walk-Behind Mower, Made in Japan

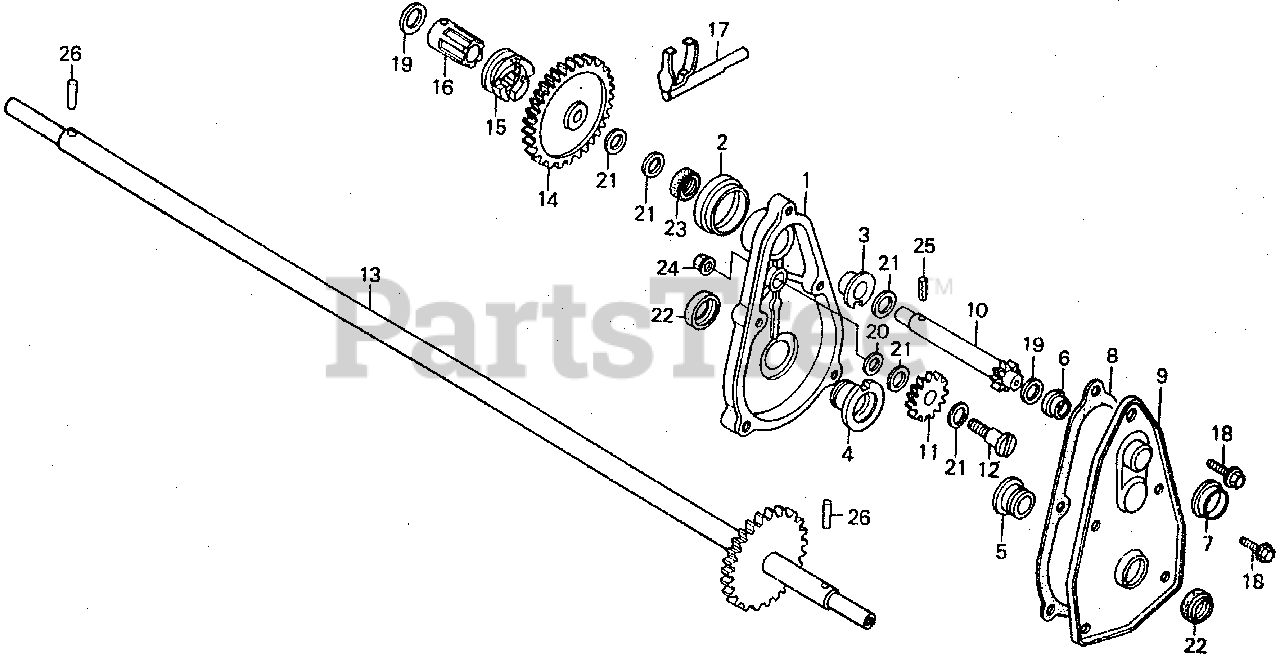

REDUCTION CASE + FINAL SHAFT Parts Diagram

  • Title

1

Honda 215A1-963-000

CASE, REDUCTION

$

$

Not available

2

Honda 21515-963-000

DUST SEAL

$

$

Not available

3

Honda 21521-963-000

BUSH, FIRST GEAR (NOT AVAILABLE)

$

$

Currently unavailable

4

Honda 21522-963-000

BUSH, CASE SIDE (NOT AVAILABLE)

$

$

Currently unavailable

5

Honda 21523-963-000

BUSH, COVER SIDE (NOT AVAILABLE)

$

$

Currently unavailable

6

Honda 21524-963-000

BUSH, L. REDUCTION COVER (NOT AVAILABLE)

$

$

Currently unavailable

7

Honda 21525-963-000

BUSH, CASE SUPPORT

$

$

Not available

8

Honda 21581-963-000

GASKET, REDUCTION CASE (NOT AVAILABLE)

$

$

Currently unavailable

9

Honda 21611-963-000

COVER, REDUCTION CASE

$

$

Not available

10

Honda 23111-963-000

SHAFT, FIRST GEAR (NOT AVAILABLE)

$41.99

$

Usually ships in 3-6 days

0

11

Honda 23221-963-000

GEAR, IDLE (NOT AVAILABLE)

$

$

Currently unavailable

12

Honda 23222-963-000

SHAFT, IDLE GEAR (NOT AVAILABLE)

$7.99

$

Usually ships in 3-6 days

0

13

Honda 23250-963-000

SHAFT, FINAL

$

$

Not available

14

Honda 23421-963-000

GEAR, DRIVEN

$

$

Not available

15

Honda 23431-VA9-H40

CLUTCH, DRIVEN

$30.99

$

Usually ships in 3-6 days

0

15

Honda 23431-960-770

CLUTCH, DRIVEN

$30.99

$

Usually ships in 3-6 days

0

16

Honda 23432-960-770

SHAFT, CLUTCH

$

$

Not available

17

Honda 23440-963-000

SHAFT, SHIFT

$

$

Not available

18

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$1.99

$

In Stock, Qty 11

0

19

Honda 90412-329-000

WASHER, THRUST (10MM)
(Superseded to 90412-KZL-840)

$0.99

$

In Stock, only 2 left!

0

20

Honda 90443-844-000

WASHER (8MM) (NOT AVAILABLE)

$0.99

$

Usually ships in 3-6 days

0

21

Honda 90459-107-000

WASHER, THRUST (12MM)

$1.99

$

Usually ships in 3-6 days

0

22

Honda 91202-963-003

DUST SEAL

$

$

Not available

23

Honda 91207-703-000

OIL SEAL (NOT AVAILABLE)

$

$

Currently unavailable

24

Honda 94050-08000

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0

25

Honda 94305-50182

PIN, SPRING (5X18)

$2.99

$

Usually ships in 3-6 days

0

26

Honda 96220-60224

ROLLER (6X22.4)

$2.99

$

Usually ships in 3-6 days

0
