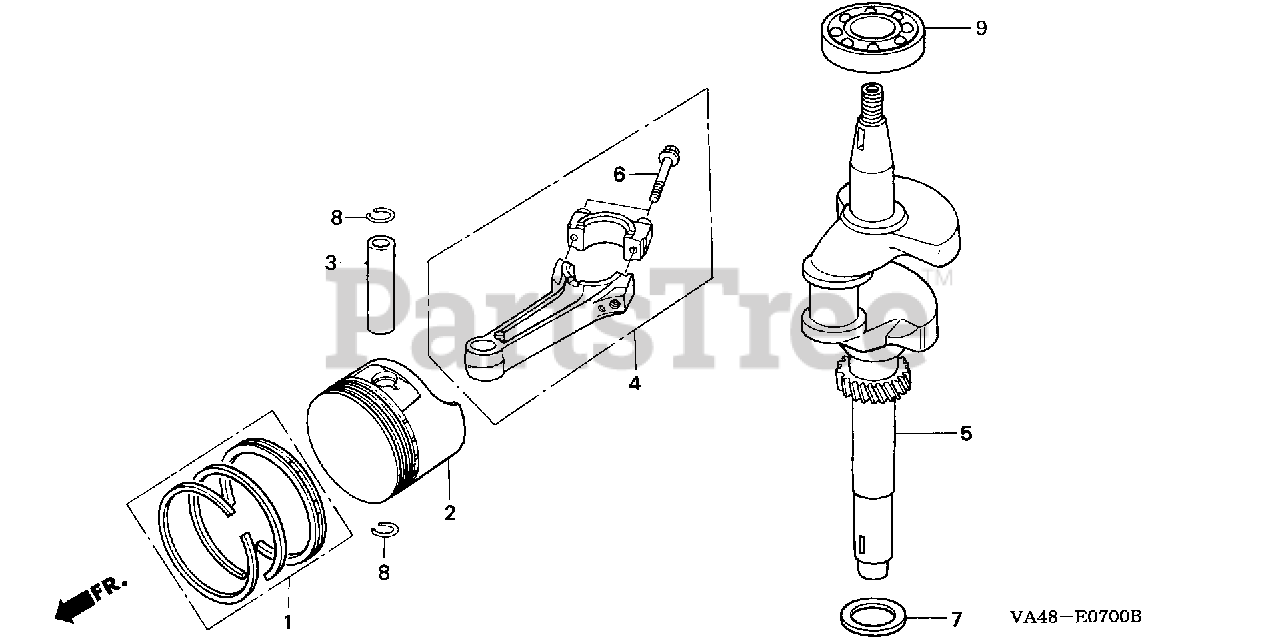

HRA215 PDA (MZAL) - Honda 21" Walk-Behind Mower, Made in USA (SN: MZAL-6000001 - MZAL-9999999) PISTON Parts Diagram

21" Walk-Behind Mower, Made in USA

PISTON Parts Diagram

  • Title

1

Honda 13010-ZG9-T00

SEE PART DETAILS - SUP; RING SET, PISTON (STD) (GOETZE)
(Superseded to 13010-ZG9-003)

$32.99

$

In Stock, only 1 left!

0

1

Honda 13010-ZG9-T01

SEE PART DETAILS - SUP; RING SET, PISTON (STD) (FEDERAL MOGUL)
(Superseded to 13010-ZG9-003)

$32.99

$

In Stock, only 1 left!

0

1

Honda 13010-ZG9-003

SEE PART DETAILS - PRI; RING SET, PISTON (STD) (NIPPON)

$32.99

$

In Stock, only 1 left!

0

1

Honda 13011-ZG9-T01

SEE PART DETAILS - SUP; RING SET, PISTON (0.25) (FEDERAL MOGUL) Use from Engine SN 7666484.
(Superseded to 13011-ZG9-003)

Note: (Optional).

$49.99

$

Usually ships in 3-6 days

0

1

Honda 13011-ZG9-003

SEE PART DETAILS - PRI; RING SET, PISTON (OS 0.25) (NIPPON)

Note: (Optional).

$49.99

$

Usually ships in 3-6 days

0

1

Honda 13011-ZG9-004

SEE PART DETAILS - SUP; RING SET, PISTON (OS 0.25) (TEIKOKU) Use up to Engine SN 7666483.
(Superseded to 13011-ZG9-003)

Note: (Optional).

$49.99

$

Usually ships in 3-6 days

0

1

Honda 13012-ZG9-T01

SEE PART DETAILS - SUP; RING SET, PISTON (0.50) (FEDERAL MOGUL) Use from Engine SN 7666484.
(Superseded to 13012-ZG9-004)

Note: (Optional).

$

$

Not available

1

Honda 13012-ZG9-004

SEE PART DETAILS - PRI; RING SET, PISTON (OS 0.50) (TEIKOKU)

Note: (Optional).

$

$

Not available

1

Honda 13013-ZG9-T00

SEE PART DETAILS - SUP; RING SET, PISTON (0.75) (GOETZE) Use up to Engine SN 7666483.
(Superseded to 13013-ZG9-003)

Note: (Optional).

$48.99

$

Usually ships in 3-6 days

0

1

Honda 13013-ZG9-T01

SEE PART DETAILS - SUP; RING SET, PISTON (OS 0.75) (FEDERAL MOGUL)
(Superseded to 13013-ZG9-003)

Note: (Optional).

$48.99

$

Usually ships in 3-6 days

0

1

Honda 13013-ZG9-003

SEE PART DETAILS - PRI; RING SET, PISTON (OS 0.75) (NIPPON)

Note: (Optional).

$48.99

$

Usually ships in 3-6 days

0

2

Honda 13101-ZG9-010

SEE PART DETAILS - PRI; PISTON (STD)

$

$

Not available

2

Honda 13102-ZG9-000

SEE PART DETAILS - SUP; PISTON (OS 0.25) Use up to Engine SN 7666483.
(Superseded to 13102-ZG9-010)

Note: (Optional).

$

$

Not available

2

Honda 13103-ZG9-000

SEE PART DETAILS - SUP; PISTON (0.50)
(Superseded to 13103-ZG9-010)

Note: (Optional).

$

$

Not available

2

Honda 13104-ZG9-010

SEE PART DETAILS - PRI; PISTON (OS 0.75)

Note: (Optional).

$

$

Not available

3

Honda 13111-ZE0-000

PIN, PISTON (Honda Code 1426576).

$8.49

$

In Stock, Qty 10

0

4

Honda 13200-ZE6-010

SEE PART DETAILS - PRI; ROD ASSY., CONNECTING (Honda Code 3214913).

$

$

Not available

4

Honda 13200-ZE6-315

ROD ASSY., CONNECTING (US 0.25) Use from Engine SN 2250473.

Note: (Optional).

$128.99

$

Usually ships in 3-6 days

0

5

Honda 13310-ZG9-P30

SEE PART DETAILS - PRI; CRANKSHAFT

$

$

Not available

6

Honda 90001-ZE1-000

BOLT, CONNECTING ROD (Honda Code 1431055).

$4.49

$

Usually ships in 3-6 days

0

8

Honda 90551-ZE0-000

SEE PART DETAILS - PRI; CLIP, PISTON PIN (13MM)

$1.99

$

In Stock, Qty 20+

0

9

Honda 91001-878-003

BEARING, RADIAL BALL (62/22) (Honda Code 0442061).

$43.99

$

In Stock, only 2 left!

0
