HRA216 SXA (MACR) - Honda 21" Walk-Behind Mower, Made in USA (SN: MACR-5000001 - MACR-6000000) AIR CLEANER Parts Diagram

21" Walk-Behind Mower, Made in USA

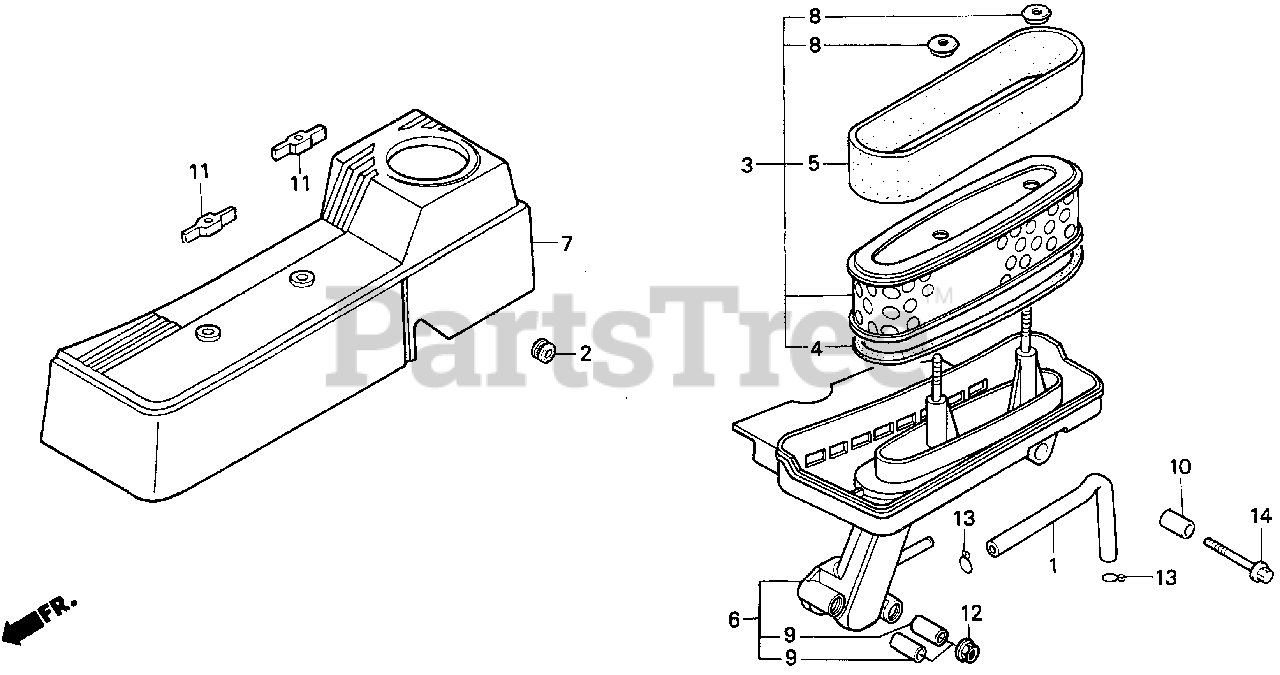

AIR CLEANER Parts Diagram

  • Title

1

Honda 15721-ZE7-000

TUBE, BREATHER

$10.99

$

In Stock, only 2 left!

0

2

Honda 16613-890-000

GROMMET, CHOKE ROD (Honda Code 0755413).

$2.49

$

Usually ships in 3-6 days

0

3

Honda 08170-ZE7-000

SEE PART DETAILS - SUP; ELEMENT, AIR CLEANER
(Superseded to 17210-ZE7-505)

$30.99

$

In Stock, Qty 6

0

3

Honda 17210-ZE7-013

SEE PART DETAILS - SUP; ELEMENT, AIR CLEANER
(Superseded to 17210-ZE7-505)

$30.99

$

In Stock, Qty 6

0

4

Honda 17217-ZE7-013

SEE PART DETAILS - PRI; GASKET, ELEMENT

$8.99

$

In Stock, only 1 left!

0

5

Honda 17218-ZE6-505

SEE PART DETAILS - PRI; FILTER (OUTER) (Honda Code 5213293).
(Superseded to 17218-ZE6-305)

$7.99

$

In Stock, Qty 8

0

6

Honda 17220-ZE7-030

SEE PART DETAILS - PRI; HOUSING, AIR CLEANER

$

$

Not available

7

Honda 17231-ZE7-000

COVER, AIR CLEANER

$

$

Not available

8

Honda 17232-891-000

GROMMET, AIR CLEANER (Honda Code 0999763).

$5.49

$

In Stock, Qty 11

0

9

Honda 17238-ZE7-010

COLLAR, AIR CLEANER Use from Engine SN 1786085.

Note: Use up to Engine SN 1007528.

$4.49

$

In Stock, only 2 left!

0

9

Honda 17238-ZE7-710

COLLAR, AIR CLEANER (Honda Code 2538445).

Note: Use from Engine SN 1007529.

$3.99

$

Usually ships in 3-6 days

0

10

Honda 17239-ZE6-300

COLLAR B, AIR CLEANER (Honda Code 1452994).

$4.49

$

In Stock, only 1 left!

0

11

Honda 90203-ZA0-800

WINGNUT (6MM) (Honda Code 1742238).

$3.99

$

In Stock, only 1 left!

0

12

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

13

Honda 95002-02120

SEE PART DETAILS - PRI; CLIP, TUBE (B12) Use from Engine SN 2086984.

$2.49

$

In Stock, only 2 left!

0

14

Honda 95701-06035-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X35) (Honda Code 2105864).

$2.49

$

In Stock, Qty 5

0
