HRA216 SXA (MACR) - Honda 21" Walk-Behind Mower, Made in USA (SN: MACR-5000001 - MACR-6000000) CUTTER HOUSING Parts Diagram

21" Walk-Behind Mower, Made in USA

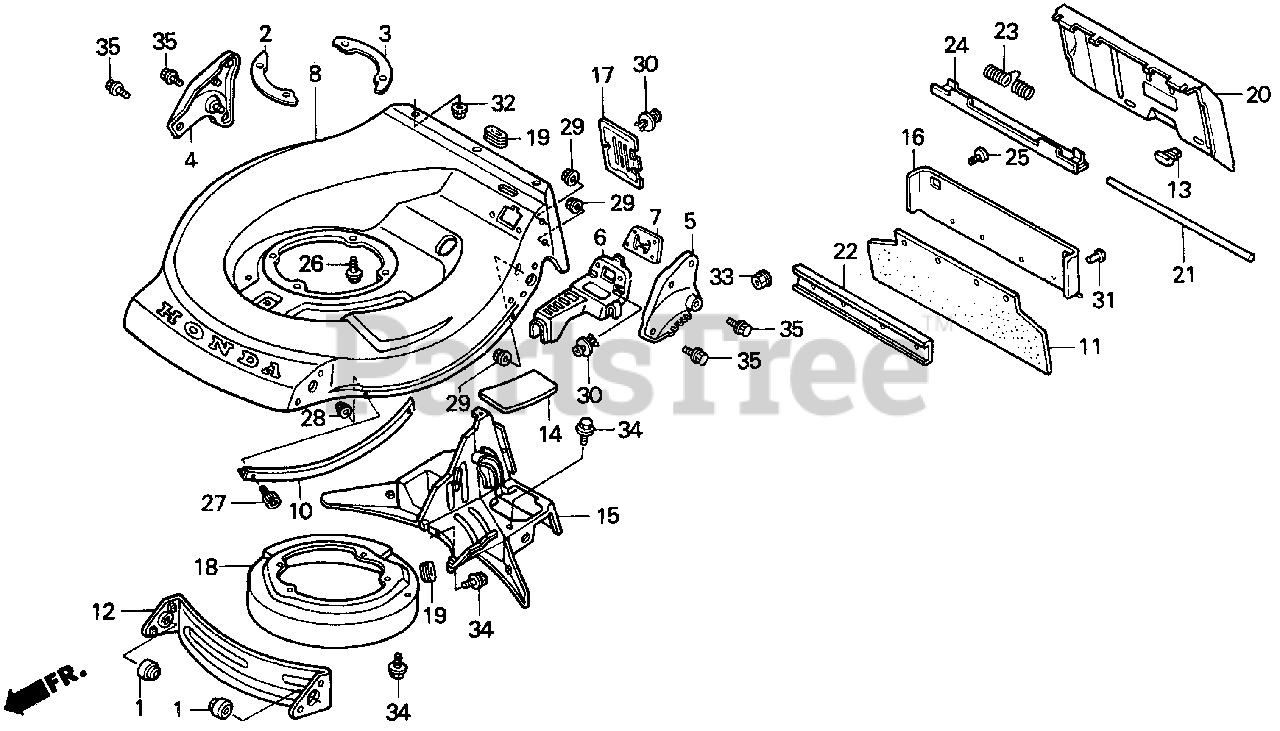

CUTTER HOUSING Parts Diagram

  • Title

1

Honda 42954-VB5-801

SEE PART DETAILS - PRI; DUST SEAL A

$5.49

$

In Stock, only 3 left!

0

2

Honda 51117-VB5-800

SPACER, ENGINE (A)

Note: Use from Frame SN 3003657.

$15.99

$

Usually ships in 3-6 days

0

2

Honda 51117-VB5-800

SPACER, ENGINE (A)

$15.99

$

Usually ships in 3-6 days

0

3

Honda 51118-VB5-800

SPACER, ENGINE (B)

Note: Use from Frame SN 3003657.

$17.99

$

Usually ships in 3-6 days

0

3

Honda 51118-VB5-800

SPACER, ENGINE (B)

$17.99

$

Usually ships in 3-6 days

0

4

Honda 53115-VB5-801

STAY, R. HANDLE

$58.99

$

Usually ships in 3-6 days

0

5

Honda 53116-VB5-801

SEE PART DETAILS - PRI; STAY, L. HANDLE

$64.99

$

Usually ships in 3-6 days

0

6

Honda 54242-VB5-800

COVER, CHANGE

$

$

Not available

7

Honda 54243-VB5-800

GROMMET, COVER

$

$

Not available

8

Honda 04602-VA4-J00

DECK SET, MOWER

$897.99

$

Usually ships in 3-6 days

0

8

Honda 76111-VA4-J00ZB

HOUSING, CUTTER *NH190M* (VINTAGE GRAY METALLIC)

$837.99

$

Usually ships in 3-6 days

0

10

Honda 76115-VB5-800

GUARD, HOUSING

$7.99

$

Usually ships in 3-6 days

0

11

Honda 76118-VB5-801

SHIELD, SAFETY

$43.99

$

In Stock, only 1 left!

0

12

Honda 76120-VB5-K20

SCROLL, FR.

$97.99

$

In Stock, only 1 left!

0

13

Honda 76122-VA4-000

STOPPER, DISCHARGE GUARD

$4.49

$

Usually ships in 3-6 days

0

14

Honda 76126-VA4-000

STEP, FOOT

$13.99

$

Usually ships in 3-6 days

0

15

Honda 76130-VB5-K20

SCROLL, RR.

$394.99

$

Usually ships in 3-6 days

0

16

Honda 76135-VB5-801

PLATE, RR. SCROLL
(Superseded to 76135-VB5-L50)

$37.99

$

Usually ships in 3-6 days

0

17

Honda 76141-VA4-800

COVER, RR.
(Superseded to 76141-VA4-801)

Note: Use up to Frame SN 3027569.

$19.99

$

In Stock, only 1 left!

0

17

Honda 76141-VA4-801

COVER, RR.

$19.99

$

In Stock, only 1 left!

0

18

Honda 76151-VB5-K20

COVER, ROTO-STOP

$73.99

$

Usually ships in 3-6 days

0

19

Honda 76231-952-770

GROMMET, CABLE

$5.99

$

Usually ships in 3-6 days

0

20

Honda 76311-VA4-000

GUARD, DISCHARGE

$

$

Not available

21

Honda 76312-VB5-800

SHAFT, HINGE (NOT AVAILABLE)

$

$

Not available

22

Honda 76313-VA9-000

PLATE, DISCHARGE GUARD

$

$

Not available

23

Honda 76314-VA5-000

SEE PART DETAILS - SUP; SPRING, GUARD RETURN
(Superseded to 76314-VA5-010)

$5.49

$

Usually ships in 3-6 days

0

23

Honda 76314-VA5-010

SEE PART DETAILS - PRI; SPRING, GUARD RETURN

$5.49

$

Usually ships in 3-6 days

0

24

Honda 81152-VA4-000

PLATE, HINGE

$61.99

$

Usually ships in 3-6 days

0

25

Honda 90101-963-000

BOLT, SPECIAL (9X15)

$3.99

$

Usually ships in 3-6 days

0

26

Honda 90102-VA4-000

BOLT, ENGINE SETTING

$3.99

$

In Stock, only 2 left!

0

27

Honda 90170-MJ1-000

BOLT, HEX. SOCKET (6X12)

$3.49

$

Usually ships in 3-6 days

0

28

Honda 90220-MA5-700

NUT, NYLON RING (6MM)

$10.99

$

Usually ships in 3-6 days

0

29

Honda 90309-428-731

SEE PART DETAILS - PRI; NUT, FLANGE (8MM)

$4.49

$

In Stock, Qty 10

0

30

Honda 90684-SA5-003

CLIP, RR. CORNER (BLACK)

$13.99

$

Usually ships in 3-6 days

0

31

Honda 90851-VA7-000

RIVET, SAFETY SHIELD (4.8MM)

$2.49

$

In Stock, Qty 6

0

32

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

33

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0481143).

$1.49

$

In Stock, Qty 20+

0

34

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use up to Engine SN 1543277.

Note: Use up to Frame SN 3009998.

$1.99

$

In Stock, Qty 20+

0

34

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use up to Engine SN 1543277.

Note: Use from Frame SN 3009999.

$1.99

$

In Stock, Qty 20+

0

34

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use up to Engine SN 1543277.

$1.99

$

In Stock, Qty 20+

0

35

Honda 95701-08014-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X14) (Honda Code 2529105).

$2.49

$

In Stock, Qty 20+

0

35

Honda 95800-08014-00

SEE PART DETAILS - SUP; BOLT, FLANGE (8X14)

$2.49

$

Usually ships in 3-6 days

0
