HRA216 SXA (MACR) - Honda 21" Walk-Behind Mower, Made in USA (SN: MACR-5000001 - MACR-6000000) JOINT Parts Diagram

21" Walk-Behind Mower, Made in USA

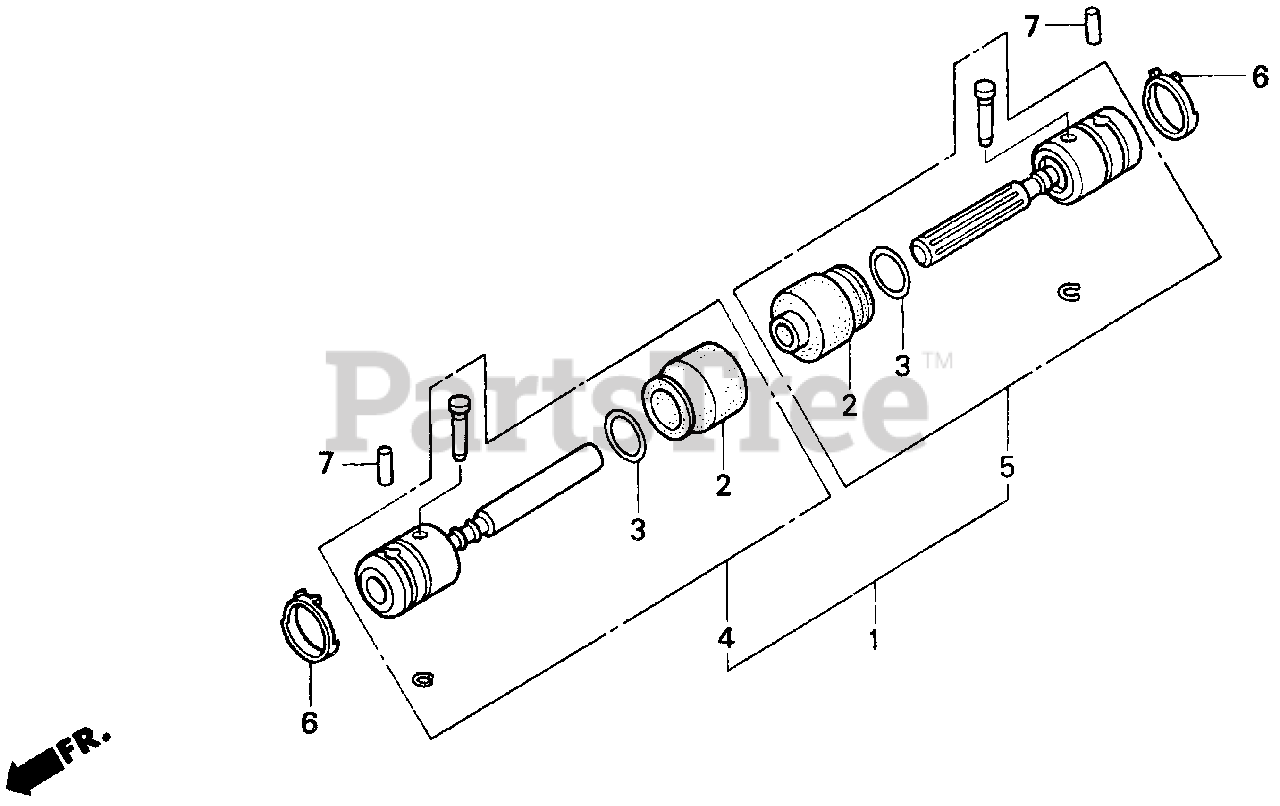

JOINT Parts Diagram

  • Title

1

Honda 22100-VB5-801

SEE PART DETAILS - SUP; JOINT ASSY.
(Superseded to 22100-VB5-807)

Note: Use up to Frame SN 3012246.

$122.99

$

Usually ships in 3-6 days

0

1

Honda 22100-VB5-801

SEE PART DETAILS - SUP; JOINT ASSY.
(Superseded to 22100-VB5-807)

Note: Use up to Frame SN 5001262.

$122.99

$

Usually ships in 3-6 days

0

1

Honda 22100-VB5-803

SEE PART DETAILS - SUP; JOINT ASSY.
(Superseded to 22100-VB5-807)

$122.99

$

Usually ships in 3-6 days

0

1

Honda 22100-VB5-804

SEE PART DETAILS - SUP; JOINT ASSY.
(Superseded to 22100-VB5-807)

$122.99

$

Usually ships in 3-6 days

0

1

Honda 22100-VB5-807

SEE PART DETAILS - PRI; JOINT ASSY.

$122.99

$

Usually ships in 3-6 days

0

2

Honda 22123-VA4-801

SEE PART DETAILS - PRI; BOOT, JOINT
(Superseded to 22123-VA4-804)

Note: Use up to Frame SN 3012246.

$5.49

$

Usually ships in 3-6 days

0

2

Honda 22123-VA4-801

SEE PART DETAILS - PRI; BOOT, JOINT
(Superseded to 22123-VA4-804)

Note: Use up to Frame SN 5001262.

$5.49

$

Usually ships in 3-6 days

0

2

Honda 22123-VB5-801

BOOT, JOINT
(Superseded to 22123-VK6-004)

Note: Use from Frame SN 3012247.

$3.99

$

In Stock, only 1 left!

0

2

Honda 22123-VB5-801

BOOT, JOINT
(Superseded to 22123-VK6-004)

Note: Use from Frame SN 5001263.

$3.99

$

In Stock, only 1 left!

0

3

Honda 22127-VA4-801

RING, SEAL
(Superseded to 22127-VA4-804)

Note: Use up to Frame SN 3012246.

$2.99

$

Usually ships in 3-6 days

0

3

Honda 22127-VA4-801

RING, SEAL
(Superseded to 22127-VA4-804)

Note: Use up to Frame SN 5001262.

$2.99

$

Usually ships in 3-6 days

0

3

Honda 22127-VB5-801

RING, SEAL
(Superseded to 22127-VK6-004)

Note: Use from Frame SN 3012247.

$1.99

$

In Stock, Qty 5

0

3

Honda 22127-VB5-801

RING, SEAL
(Superseded to 22127-VK6-004)

Note: Use from Frame SN 5001263.

$1.99

$

In Stock, Qty 5

0

4

Honda 22150-VB5-801

SEE PART DETAILS - SUP; JOINT SUB-ASSY. (A)
(Superseded to 22150-VB5-804)

Note: Use up to Frame SN 3012246.

$

$

Not available

4

Honda 22150-VB5-801

SEE PART DETAILS - SUP; JOINT SUB-ASSY. (A)
(Superseded to 22150-VB5-804)

Note: Use up to Frame SN 5001262.

$

$

Not available

4

Honda 22150-VB5-803

SEE PART DETAILS - SUP; JOINT SUB-ASSY. (A)
(Superseded to 22150-VB5-804)

$

$

Not available

5

Honda 22160-VB5-801

SEE PART DETAILS - SUP; JOINT SUB-ASSY. (B)
(Superseded to 22160-VB5-804)

Note: Use up to Frame SN 3012246.

$

$

Not available

5

Honda 22160-VB5-801

SEE PART DETAILS - SUP; JOINT SUB-ASSY. (B)
(Superseded to 22160-VB5-804)

Note: Use up to Frame SN 5001262.

$

$

Not available

5

Honda 22160-VB5-803

SEE PART DETAILS - SUP; JOINT SUB-ASSY. (B)
(Superseded to 22160-VB5-804)

$

$

Not available

6

Honda 23435-VA2-701

CLIP, CLUTCH SHAFT

$4.49

$

Usually ships in 3-6 days

0

7

Honda 96220-40178

ROLLER (4X17.8)

$1.49

$

In Stock, Qty 9

0
