HRA216 SXA (MACR) - Honda 21" Walk-Behind Mower, Made in USA (SN: MACR-5000001 - MACR-6000000) RECOIL STARTER Parts Diagram

21" Walk-Behind Mower, Made in USA

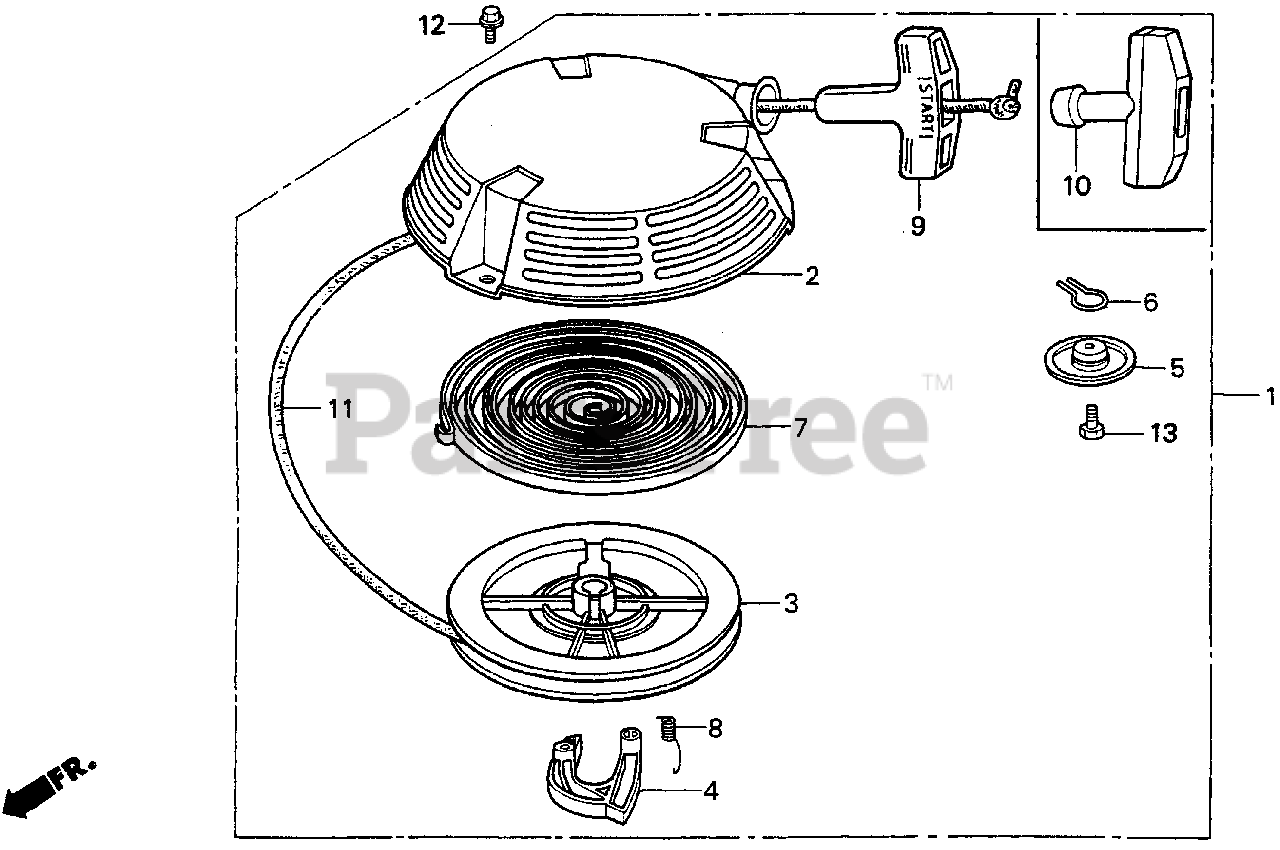

RECOIL STARTER Parts Diagram

  • Title

1

Honda 28400-ZE7-003ZC

SEE PART DETAILS - PRI; STARTER ASSY., RECOIL *R280* (POWER RED)

$105.99

$

Usually ships in 3-6 days

0

2

Honda 28410-ZE7-003ZD

CASE, RECOIL STARTER *R280* (POWER RED)

$

$

Not available

3

Honda 28420-ZE7-003

PULLEY, RECOIL STARTER (Honda Code 2289973).

$37.99

$

Usually ships in 3-6 days

0

4

Honda 28422-896-010

SEE PART DETAILS - PRI; RATCHET, STARTER (Honda Code 1033224).

$7.49

$

In Stock, only 1 left!

0

5

Honda 28431-896-000

PLATE, FRICTION (Honda Code 0927913).

$5.99

$

Usually ships in 3-6 days

0

6

Honda 28441-896-000

SPRING, FRICTION (Honda Code 0927921).

$7.99

$

Usually ships in 3-6 days

0

7

Honda 28442-896-700

SPRING, RETURN (Honda Code 0933101).

$31.99

$

In Stock, only 1 left!

0

8

Honda 28443-896-000

SPRING, RETURN (Honda Code 0927939).

$4.49

$

In Stock, only 1 left!

0

9

Honda 28461-ZE1-003

SEE PART DETAILS - SUP; KNOB, RECOIL STARTER
(Superseded to 28461-ZE1-013)

Note: Use from Engine SN 1152219.

$7.99

$

In Stock, Qty 15

0

9

Honda 28461-ZE1-013

SEE PART DETAILS - PRI; KNOB, RECOIL STARTER

Note: Use from Engine SN 1152219.

$7.99

$

In Stock, Qty 15

0

10

Honda 28461-878-810

SEE PART DETAILS - PRI; KNOB, STARTER (Honda Code 0441881).

Note: Use up to Engine SN 1152218.

$

$

Not available

11

Honda 28462-ZA7-003

SEE PART DETAILS - SUP; ROPE, RECOIL STARTER (#4X55") (Honda Code 1410844).
(Superseded to 28462-ZE6-T02)

$5.99

$

In Stock, only 1 left!

0

11

Honda 28462-ZE6-T02

SEE PART DETAILS - PRI; ROPE, LONG (55")

$5.99

$

In Stock, only 1 left!

0

12

Honda 90012-ZE6-000

BOLT, FLANGE (6X8) (Honda Code 1454743).

$2.49

$

Usually ships in 3-6 days

0

13

Honda 92101-06012-0H

SEE PART DETAILS - PRI; BOLT, HEX. (6X20) (Honda Code 3438264).

$1.99

$

Usually ships in 3-6 days

0
