HRB217 HXA (MAEA) - Honda 21" Walk-Behind Mower, Made in USA (SN: MAEA-1000001 - MAEA-9999999) THROTTLE LEVER (HXA) Parts Diagram

21" Walk-Behind Mower, Made in USA

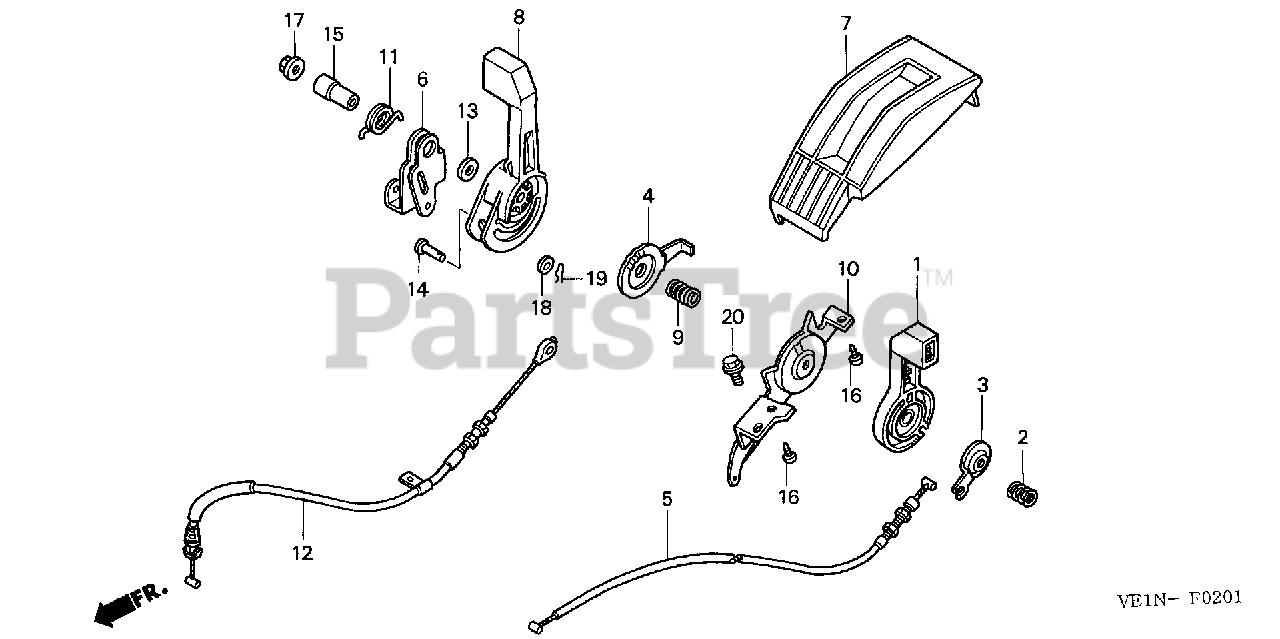

THROTTLE LEVER (HXA) Parts Diagram

  • Title

1

Honda 17851-VA3-D00

SEE PART DETAILS - SUP; LEVER, THROTTLE
(Superseded to 17851-VA3-D01)

$5.49

$

In Stock, only 1 left!

0

1

Honda 17851-VA3-D01

SEE PART DETAILS - PRI; LEVER, THROTTLE

$5.49

$

In Stock, only 1 left!

0

2

Honda 17858-VA4-000

SPRING, THROTTLE LEVER

$4.99

$

In Stock, only 1 left!

0

3

Honda 17859-VA3-800

SEAT, SPRING

$6.49

$

In Stock, only 1 left!

0

4

Honda 17859-VE1-R20

SEAT, SPRING

$3.99

$

In Stock, only 2 left!

0

5

Honda 17910-VE1-R00

CABLE, THROTTLE

$27.99

$

In Stock, only 1 left!

0

6

Honda 24412-VE0-J50

ARM, CHANGE LEVER

$11.99

$

In Stock, only 1 left!

0

7

Honda 54231-VA3-800

COVER, CONTROL

$36.99

$

In Stock, only 2 left!

0

8

Honda 54311-VE0-J50

LEVER, CHANGE

$26.99

$

In Stock, only 2 left!

0

9

Honda 54314-VA3-P00

SPRING, CHANGE LEVER

$3.49

$

In Stock, Qty 5

0

10

Honda 54315-VE1-R00

STOPPER, LEVER

$39.99

$

In Stock, only 2 left!

0

11

Honda 54318-VA3-P00

SPRING, ARM RETURN

$4.49

$

In Stock, Qty 9

0

12

Honda 04225-VE1-305

SEE PART DETAILS - PRI; CABLE, CHANGE (H.S.T.)

$54.99

$

Usually ships in 3-6 days

0

12

Honda 54630-VE1-R20

SEE PART DETAILS - SUP; CABLE, CHANGE (H.S.T.)
(Superseded to 04225-VE1-305)

$54.99

$

Usually ships in 3-6 days

0

12

Honda 54630-VE1-R21

SEE PART DETAILS - SUP; CABLE, CHANGE (H.S.T.)
(Superseded to 04225-VE1-305)

$54.99

$

Usually ships in 3-6 days

0

13

Honda 90501-VE1-R00

WASHER (10.5X30)

$1.99

$

In Stock, only 2 left!

0

14

Honda 90752-VA3-P01

PIN (6X22)

$4.49

$

In Stock, Qty 17

0

15

Honda 91551-VE1-R20

COLLAR, CHANGE LEVER

$18.99

$

In Stock, only 2 left!

0

16

Honda 93901-35210

SCREW, TAPPING (5X12)

$0.99

$

In Stock, only 3 left!

0

17

Honda 94050-06080

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 6

0

18

Honda 94101-06800

WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

19

Honda 94251-06000

PIN, LOCK (6MM)

$1.49

$

In Stock, Qty 8

0

20

Honda 95701-06010-00

BOLT, FLANGE (6X10)

$1.99

$

In Stock, Qty 20+

0
