HRC215 K1 SXA (MZAU) - Honda 21" Walk-Behind Mower, Made in USA (SN: MZAU-6100001 - MZAU-9999999) TRANSMISSION (HRC215K1, HRC216/K1 - SDA, SXA) Parts Diagram

21" Walk-Behind Mower, Made in USA

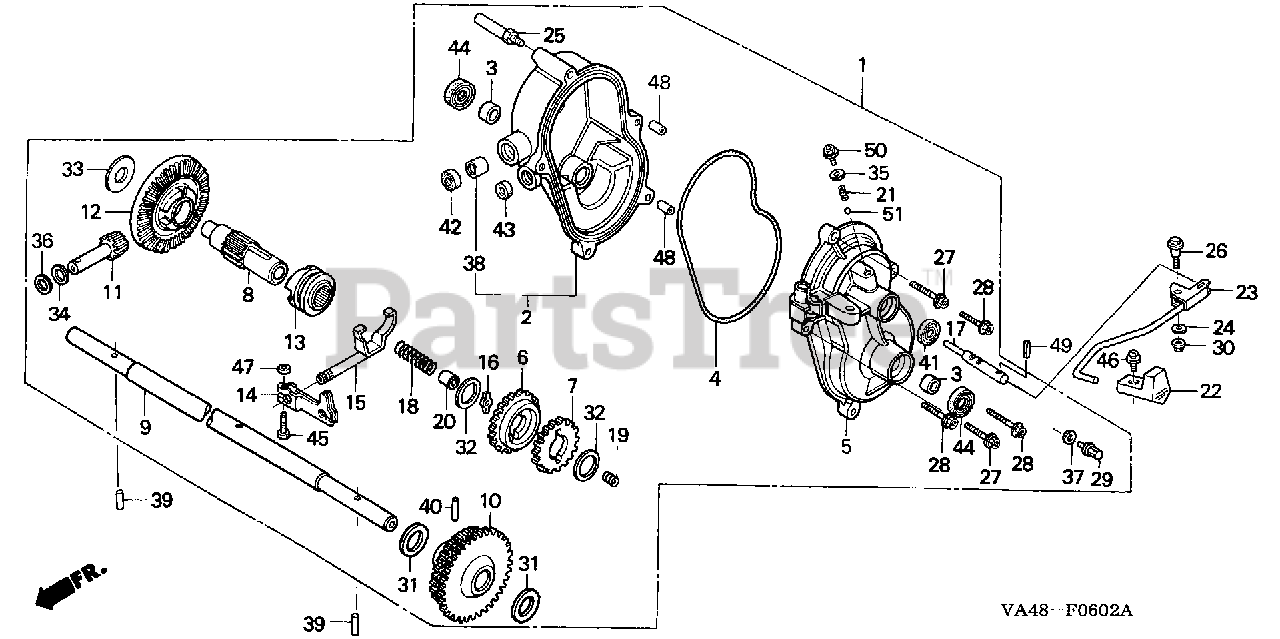

TRANSMISSION (HRC215K1, HRC216/K1 - SDA, SXA) Parts Diagram

  • Title

1

Honda 20001-VB5-800

TRANSMISSION ASSY.

$399.99

$

Usually ships in 3-6 days

0

2

Honda 215B1-VB5-800

CASE, R. TRANSMISSION

$

$

Not available

3

Honda 21521-VB5-801

BUSH, TRANSMISSION CASE

$

$

Not available

4

Honda 21592-VA4-801

SEE PART DETAILS - SUP; O-RING, TRANSMISSION CASE
(Superseded to 21592-VA4-J02)

$7.99

$

Usually ships in 3-6 days

0

5

Honda 21611-VB5-800

CASE, L. TRANSMISSION (NOT AVAILABLE)

$102.99

$

Usually ships in 3-6 days

0

6

Honda 23111-VB5-800

GEAR, HIGH DRIVE (28T)

$34.99

$

Usually ships in 3-6 days

0

7

Honda 23211-VB5-800

GEAR, LOW DRIVE

$19.99

$

Usually ships in 3-6 days

0

8

Honda 23221-VB5-800

COUNTERSHAFT

$54.99

$

Usually ships in 3-6 days

0

9

Honda 23251-VB5-802

SHAFT, FINAL

$119.99

$

Usually ships in 3-6 days

0

10

Honda 23350-VB5-800

GEAR, FINAL

$

$

Not available

11

Honda 23411-VB3-801

PINION, BEVEL

$50.99

$

Usually ships in 3-6 days

0

12

Honda 23421-VB5-800

GEAR, BEVEL (44T)

$84.99

$

Usually ships in 3-6 days

0

13

Honda 23431-VB5-800

CLUTCH, DRIVEN

$34.99

$

Usually ships in 3-6 days

0

14

Honda 23436-VA4-J02

SEE PART DETAILS - PRI; ARM, CLUTCH

$65.99

$

Usually ships in 3-6 days

0

14

Honda 23436-VA4-801

SEE PART DETAILS - SUP; ARM, CLUTCH
(Superseded to 23436-VA4-J02)

$65.99

$

Usually ships in 3-6 days

0

15

Honda 23440-VB3-800

SHAFT, SHIFT

$29.99

$

Usually ships in 3-6 days

0

16

Honda 24102-VB3-800

SHIFTER

$5.99

$

Usually ships in 3-6 days

0

17

Honda 24122-VB5-800

SLIDER, SHIFT

$

$

Not available

18

Honda 24123-VA4-800

SPRING, SHIFT

$4.49

$

Usually ships in 3-6 days

0

19

Honda 24124-VA4-800

SPRING, HIGH GEARSHIFT

$2.99

$

Usually ships in 3-6 days

0

20

Honda 24251-VA4-800

RETAINER, SHIFT SPRING

$4.99

$

Usually ships in 3-6 days

0

21

Honda 24271-VB3-800

SPRING, BALL SETTING

$

$

Not available

22

Honda 54225-VA4-J00

KNOB, CHANGE LEVER

$

$

Not available

23

Honda 54311-VB5-J00

LEVER, CHANGE

$

$

Not available

24

Honda 56468-PC1-010

PLATE, ADJUSTING

$3.99

$

Usually ships in 3-6 days

0

25

Honda 90012-VA4-800

BOLT, GUIDE

$4.99

$

Usually ships in 3-6 days

0

26

Honda 90015-730-000

BOLT, TANK SETTING

$7.49

$

Usually ships in 3-6 days

0

27

Honda 90123-VA4-800

BOLT, FLANGE (6X25) (Honda Code 1454891).

$3.49

$

Usually ships in 3-6 days

0

28

Honda 90125-VA4-800

BOLT, FLANGE (6X25)

$3.99

$

In Stock, only 1 left!

0

29

Honda 90131-ZE1-000

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG

$3.49

$

In Stock, only 4 left!

0

30

Honda 90220-MA5-700

NUT, NYLON RING (6MM)

$13.99

$

In Stock, only 2 left!

0

31

Honda 90446-357-000

WASHER, THRUST (17.2MM) (Honda Code 0322180).

$5.99

$

In Stock, only 1 left!

0

32

Honda 90451-436-000

WASHER, THRUST (19.5MM)

$4.49

$

Usually ships in 3-6 days

0

33

Honda 90452-VB5-800

WASHER, THRUST (12MM)

$7.99

$

Usually ships in 3-6 days

0

34

Honda 90452-187-000

SEE PART DETAILS - PRI; WASHER (10X21)

$3.49

$

Usually ships in 3-6 days

0

35

Honda 90463-KRM-840

SEE PART DETAILS - PRI; WASHER, SEALING (6.2X12X1.2)

$1.99

$

In Stock, only 4 left!

0

36

Honda 90481-VB5-800

SHIM, BEVEL PINION (A)

$2.99

$

Usually ships in 3-6 days

0

36

Honda 90482-VB5-800

SHIM, BEVEL PINION (B)

$2.99

$

Usually ships in 3-6 days

0

36

Honda 90483-VB5-800

SHIM, BEVEL PINION (C)

$2.99

$

Usually ships in 3-6 days

0

37

Honda 90601-ZE1-000

WASHER, DRAIN PLUG (10.2MM) (Honda Code 1436583).

$0.99

$

In Stock, Qty 20+

0

38

Honda 91012-VB5-801

BEARING, NEEDLE (10X17X20)

$19.99

$

Usually ships in 3-6 days

0

39

Honda 91101-VA4-801

ROLLER (5X23.8)

$5.99

$

In Stock, Qty 20+

0

40

Honda 91151-VB5-800

ROLLER (6X25)

$2.49

$

Usually ships in 3-6 days

0

41

Honda 91201-VA4-801

SEE PART DETAILS - PRI; OIL SEAL (10X20X5)

$6.49

$

In Stock, Qty 12

0

42

Honda 91206-VA3-J02

SEE PART DETAILS - PRI; OIL SEAL (10X17X4)

$2.99

$

In Stock, only 1 left!

0

43

Honda 91201-ZE9-003

SEE PART DETAILS - PRI; OIL SEAL (8X14X5) (Honda Code 2461713).

$6.49

$

In Stock, only 4 left!

0

43

Honda 91203-952-771

SEE PART DETAILS - SUP; OIL SEAL (8X14X5) (Honda Code 0744326).
(Superseded to 91201-ZE9-003)

$6.49

$

In Stock, only 4 left!

0

44

Honda 91205-VB5-801

OIL SEAL (17X26X6)

$7.49

$

Usually ships in 3-6 days

0

45

Honda 92101-05020-0A

SEE PART DETAILS - PRI; BOLT, HEX. (5X20)

$1.99

$

Usually ships in 3-6 days

0

46

Honda 93891-04012-07

SCREW-WASHER (4X12)

$1.99

$

Usually ships in 3-6 days

0

47

Honda 94001-05000-0S

SEE PART DETAILS - PRI; NUT, HEX. (5MM)

$3.99

$

Usually ships in 3-6 days

0

48

Honda 94301-08140

SEE PART DETAILS - PRI; PIN A, DOWEL (8X14) (Honda Code 0069310).

$3.49

$

In Stock, only 3 left!

0

49

Honda 94305-40202

PIN, SPRING (4X20)

$3.49

$

Usually ships in 3-6 days

0

50

Honda 95701-06010-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10) (Honda Code 2410876).

$1.99

$

In Stock, Qty 20+

0

51

Honda 96211-06000

SEE PART DETAILS - PRI; BALL, STEEL (#6) (3/16)

$0.99

$

In Stock, Qty 5

0
