HRC216 HXA (MZAN) - Honda 21" Walk-Behind Mower, Made in USA (SN: MZAN-6000001 - MZAN-6099999) FAN COVER (HRC216) Parts Diagram

21" Walk-Behind Mower, Made in USA

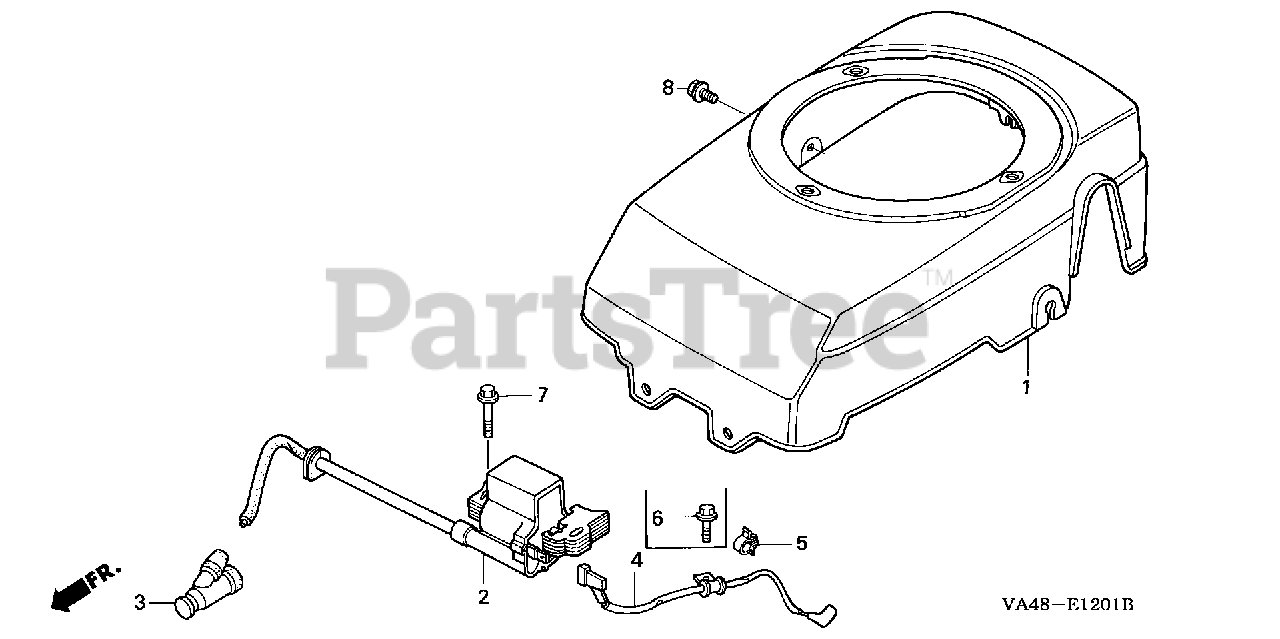

FAN COVER (HRC216) Parts Diagram

  • Title

1

Honda 19610-ZE7-L00ZB

COVER, FAN *R8* (BRIGHT RED)

$

$

Not available

2

Honda 30500-ZE7-063

SEE PART DETAILS - PRI; COIL ASSY., IGNITION

$85.99

$

In Stock, only 1 left!

0

3

Honda 30700-ZE6-773

SEE PART DETAILS - PRI; TERMINAL ASSY., IGNITION

$23.99

$

Usually ships in 3-6 days

0

4

Honda 36101-ZE7-000

SEE PART DETAILS - SUP; WIRE, STOP SWITCH

Note: Use up to Engine SN 1335375.

$

$

Currently unavailable

4

Honda 36101-ZE7-010

SEE PART DETAILS - PRI; WIRE, STOP SWITCH (NOT AVAILABLE)

Note: Use from Engine SN 1335376 to 1352134.

$

$

Not available

4

Honda 36101-ZE7-020

WIRE, STOP SWITCH

Note: Use from Engine SN 1352135.

$15.99

$

Usually ships in 3-6 days

0

5

Honda 36103-ZE1-000

HOLDER, STOP SWITCH WIRE Use up to Engine SN 2056819.

Note: Use up to Engine SN 1352134.

$2.49

$

Usually ships in 3-6 days

0

5

Honda 46392-SC2-003

CLAMP, BRAKE PIPE (GRAY)

Note: Use from Engine SN 1352135.

$4.99

$

Usually ships in 3-6 days

0

6

Honda 90019-883-000

BOLT, FLANGE (5X10) (Honda Code 0636878).

Note: Use up to Engine SN 1352134.

$2.99

$

Usually ships in 3-6 days

0

7

Honda 90121-952-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X25) Use up to Engine SN 2056819.

$2.99

$

In Stock, Qty 13

0

8

Honda 95701-06010-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10) (Honda Code 2410876).

$1.49

$

In Stock, Qty 20+

0
