HRC216 K3 HXA (MAKA) - Honda 21" Walk-Behind Mower, Made in USA (SN: MAKA-1050001 - MAKA-1999999) CARBURETOR (HDAH/HXA/HXC) Parts Diagram

21" Walk-Behind Mower, Made in USA

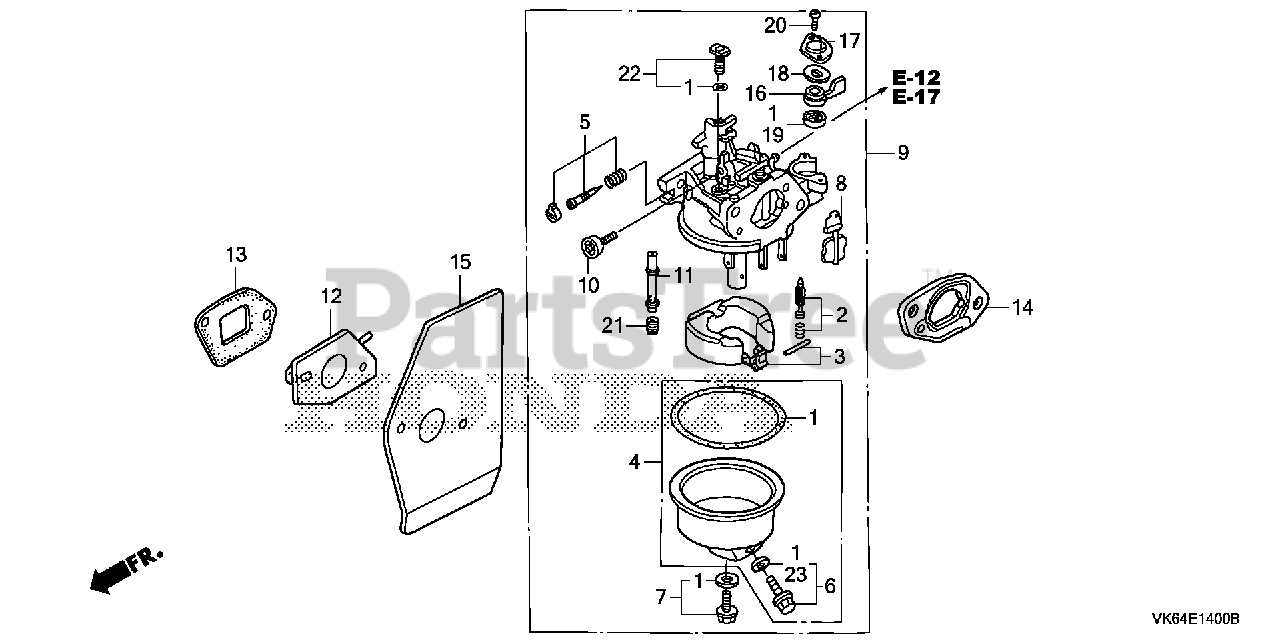

CARBURETOR (HDAH/HXA/HXC) Parts Diagram

  • Title

1

Honda 16010-ZE0-025

SEE PART DETAILS - PRI; GASKET SET

$19.99

$

In Stock, Qty 5

0

2

Honda 16011-ZE0-005

VALVE SET, FLOAT (SEAT NOT INCLUDED)

$28.99

$

In Stock, Qty 6

0

3

Honda 16013-Z0S-B01

FLOAT SET

$33.99

$

Usually ships in 3-6 days

0

4

Honda 16015-ZE0-831

CHAMBER SET, FLOAT

$37.99

$

In Stock, only 3 left!

0

5

Honda 16016-ZH7-W01

SCREW SET, PILOT

$20.99

$

In Stock, only 3 left!

0

6

Honda 16024-ZE1-811

SCREW SET, DRAIN

$10.99

$

In Stock, only 4 left!

0

7

Honda 16028-ZE0-005

SEE PART DETAILS - SUP; SCREW SET
(Superseded to 16028-ZK7-S91)

$13.99

$

In Stock, only 1 left!

0

7

Honda 16028-ZK7-S91

SEE PART DETAILS - PRI; SCREW SET

$13.99

$

In Stock, only 1 left!

0

8

Honda 16045-Z1V-G01

CHOKE SET

$27.99

$

Usually ships in 3-6 days

0

9

Honda 16100-Z1V-801

CARBURETOR ASSY. (BE66N A)
(Superseded to 16100-Z1V-802)

$128.99

$

In Stock, only 3 left!

0

10

Honda 16124-ZE0-005

SCREW, THROTTLE STOP

$17.99

$

In Stock, only 2 left!

0

11

Honda 16166-Z1V-801

NOZZLE, MAIN

$19.99

$

Usually ships in 3-6 days

0

12

Honda 16211-ZE7-000

INSULATOR, CARBURETOR

$15.99

$

In Stock, only 1 left!

0

13

Honda 16212-ZE7-M10

GASKET, INSULATOR

$3.49

$

In Stock, only 2 left!

0

13

Honda 16212-Z1V-701

GASKET, INSULATOR (NINGBO SIL GASKET)

$1.49

$

In Stock, Qty 10

0

14

Honda 16220-ZE6-010

SEE PART DETAILS - PRI; SPACER, CARBURETOR

$7.99

$

In Stock, only 4 left!

0

15

Honda 16221-ZE7-M11

GASKET, CARBURETOR

$17.99

$

In Stock, only 4 left!

0

15

Honda 16221-Z1V-701

GASKET, CARBURETOR (NINGBO SIL GASKET)

$10.99

$

Usually ships in 3-6 days

0

16

Honda 16953-ZE1-812

LEVER, PETCOCK

$10.99

$

In Stock, only 1 left!

0

17

Honda 16954-ZE1-812

PLATE, LEVER SETTING

$4.49

$

In Stock, only 1 left!

0

18

Honda 16956-ZE1-811

SEE PART DETAILS - PRI; SPRING, PETCOCK LEVER

$3.99

$

In Stock, Qty 5

0

19

Honda 16957-ZE1-812

SEE PART DETAILS - PRI; GASKET, PETCOCK

$4.49

$

In Stock, Qty 13

0

20

Honda 93500-03006-0H

SCREW, PAN (3X6)

$1.49

$

In Stock, only 4 left!

0

21

Honda 99101-ZK7-0620

JET, MAIN (#62)

Note: (Optional).

$10.99

$

Usually ships in 3-6 days

0

21

Honda 99101-ZK7-0650

JET, MAIN (#65)

Note: (Optional).

$7.49

$

Usually ships in 3-6 days

0

21

Honda 99101-ZK7-0680

JET, MAIN (#68)

$8.49

$

In Stock, only 1 left!

0

22

Honda 99204-ZE0-0350

JET SET, PILOT (#35)

$22.99

$

In Stock, only 2 left!

0

23

Honda 16141-Z0S-003

WASHER, PLAIN (6.2X10.7 DRAIN)

$0.99

$

Usually ships in 3-6 days

0
