HRC216 K3 HXA (MAKA) - Honda 21" Walk-Behind Mower, Made in USA (SN: MAKA-1050001 - MAKA-1999999) CRANKSHAFT + PISTON (HDAH/HXA/HXC) Parts Diagram

21" Walk-Behind Mower, Made in USA

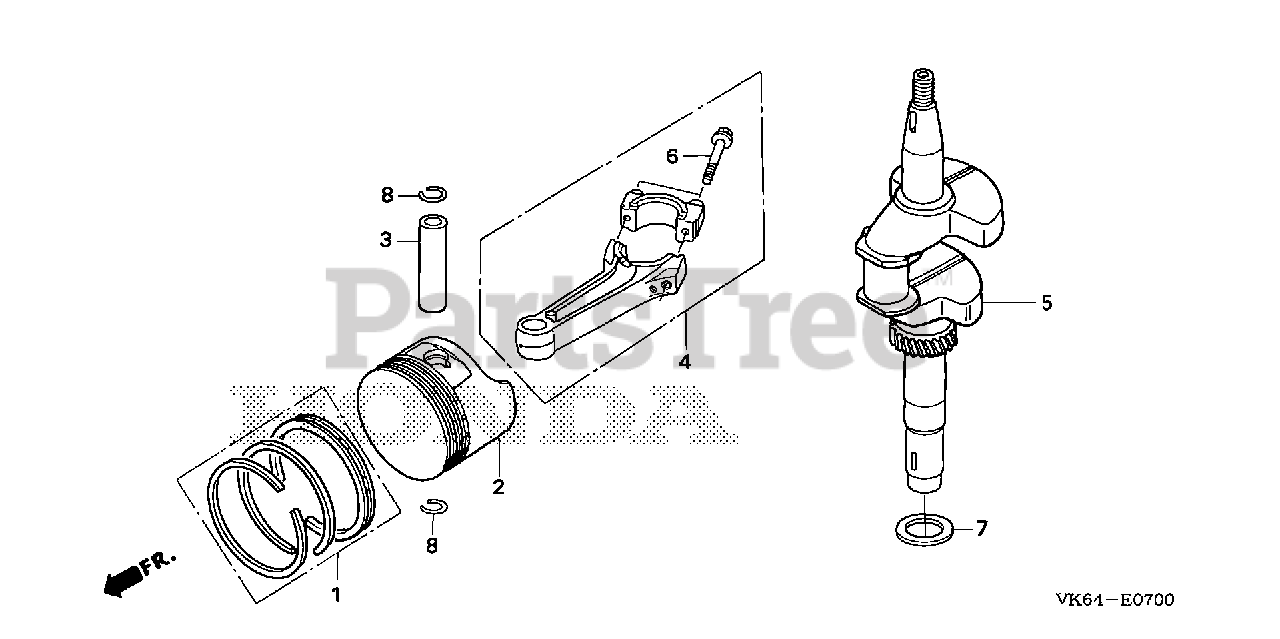

CRANKSHAFT + PISTON (HDAH/HXA/HXC) Parts Diagram

  • Title

1

Honda 13010-Z1T-701

SEE PART DETAILS - SUP; RING SET, PISTON (STD) (FUJIAN DONGYA MACHINERY)
(Superseded to 13010-Z4K-004)

$31.99

$

In Stock, only 3 left!

0

1

Honda 13010-Z4K-004

SEE PART DETAILS - PRI; RING SET, PISTON (STD) (TPR)

$31.99

$

In Stock, only 3 left!

0

1

Honda 13010-Z4P-003

RING SET, PISTON (STD) (RIKEN)

$37.99

$

Usually ships in 3-6 days

0

1

Honda 13011-Z4K-004

RING SET, PISTON (0.25) (TPR)

Note: (Optional).

$

$

Not available

1

Honda 13011-Z4P-003

RING SET, PISTON (0.25) (RIKEN)

Note: (Optional).

$39.99

$

Usually ships in 3-6 days

0

1

Honda 13012-Z4K-004

RING SET, PISTON (0.50) (TPR)

Note: (Optional).

$

$

Not available

1

Honda 13012-Z4P-003

RING SET, PISTON (0.50) (RIKEN)

Note: (Optional).

$39.99

$

Usually ships in 3-6 days

0

1

Honda 13013-Z1T-701

RING SET, PISTON (0.75) (FUJIAN DONGYA MACHINERY)
(Superseded to 13013-Z4K-004)

Note: (Optional).

$

$

Not available

1

Honda 13013-Z4K-004

RING SET, PISTON (0.75) (TPR)

Note: (Optional).

$

$

Not available

1

Honda 13013-Z4P-003

RING SET, PISTON (0.75) (RIKEN)

Note: (Optional).

$30.99

$

Usually ships in 3-6 days

0

2

Honda 13101-Z1T-010

PISTON (STD) (JIALING-HONDA)

$48.99

$

In Stock, only 1 left!

0

2

Honda 13102-ZH8-020

PISTON (0.25)

Note: (Optional).

$

$

Not available

2

Honda 13103-ZH8-020

PISTON (0.50)

Note: (Optional).

$

$

Not available

2

Honda 13104-ZH8-020

PISTON (0.75)

Note: (Optional).

$

$

Not available

3

Honda 13111-Z1T-000

PIN, PISTON

$13.99

$

In Stock, only 1 left!

0

4

Honda 13200-Z1V-600

SEE PART DETAILS - PRI; ROD ASSY., CONNECTING

$142.99

$

In Stock, only 2 left!

0

4

Honda 13200-Z1V-000

SEE PART DETAILS - SUP; ROD ASSY., CONNECTING
(Superseded to 13200-Z1V-600)

$142.99

$

In Stock, only 2 left!

0

4

Honda 13200-Z1V-610

ROD ASSY., CONNECTING

Note: Use from Engine SN 2571539.

$81.99

$

In Stock, only 1 left!

0

5

Honda 13310-ZE7-771

CRANKSHAFT

$314.99

$

In Stock, only 1 left!

0

6

Honda 90001-ZE1-000

BOLT, CONNECTING ROD

$4.49

$

In Stock, only 3 left!

0

7

Honda 90401-ZE7-W00

WASHER, THRUST (25.6MM)

$7.99

$

Usually ships in 3-6 days

0

8

Honda 90551-ZE1-000

CLIP, PISTON PIN (18MM)

$1.99

$

In Stock, Qty 20+

0
