HRC216 K3 HXA (MAKA) - Honda 21" Walk-Behind Mower, Made in USA (SN: MAKA-1050001 - MAKA-1999999) CYLINDER (HDAH/HXA/HXC) Parts Diagram

21" Walk-Behind Mower, Made in USA

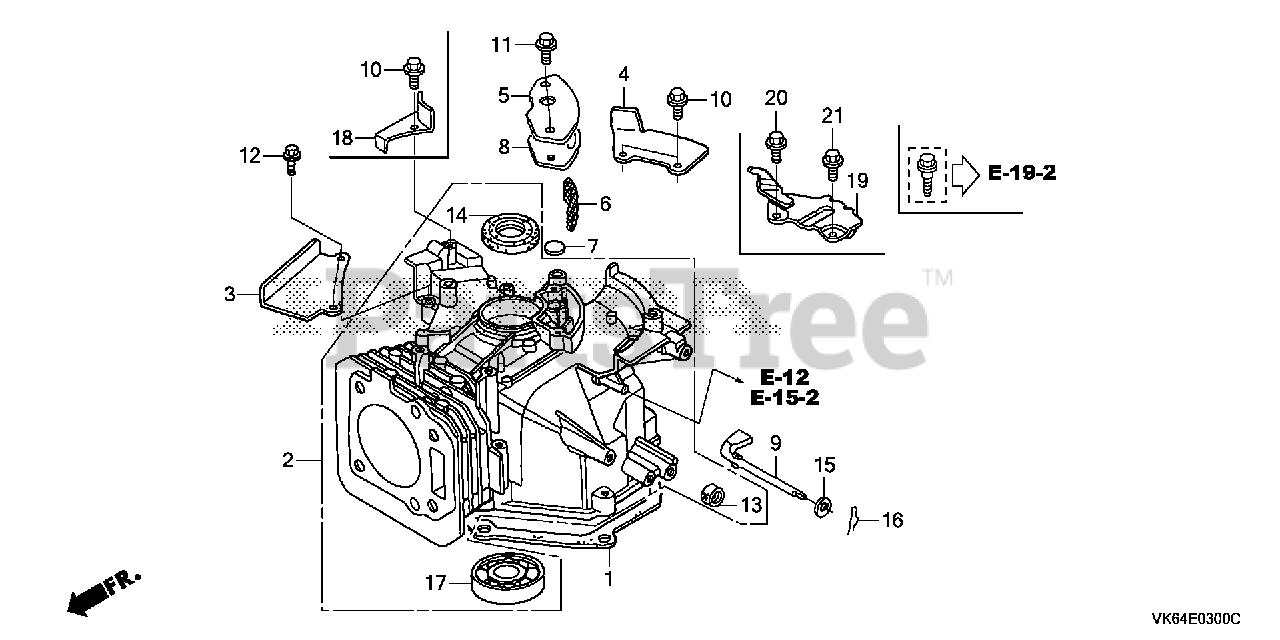

CYLINDER (HDAH/HXA/HXC) Parts Diagram

  • Title

1

Honda 11381-ZE7-M10

SEE PART DETAILS - PRI; GASKET, OIL PAN

$17.99

$

In Stock, Qty 6

0

1

Honda 11381-Z1V-701

GASKET, OIL PAN (NINGBO SIL GASKET)

$9.49

$

Usually ships in 3-6 days

0

2

Honda 12000-Z2J-405

CYLINDER ASSY.

$577.99

$

In Stock, only 2 left!

0

3

Honda 12125-Z1V-000

PLATE, GUIDE

$7.99

$

Usually ships in 3-6 days

0

5

Honda 12355-Z1V-000

COVER, BREATHER

$8.49

$

Usually ships in 3-6 days

0

6

Honda 12367-883-003

FILTER, BREATHER

$3.99

$

Usually ships in 3-6 days

0

7

Honda 12372-ZE7-000

VALVE, BREATHER

$5.49

$

Usually ships in 3-6 days

0

8

Honda 12373-ZE7-000

GASKET, BREATHER COVER

$3.99

$

Usually ships in 3-6 days

0

9

Honda 16541-ZE7-000

SHAFT, GOVERNOR ARM

$16.99

$

Usually ships in 3-6 days

0

10

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$2.49

$

In Stock, Qty 20+

0

11

Honda 90014-952-000

BOLT, FLANGE (6X14) (CT200)

$3.49

$

In Stock, Qty 20+

0

12

Honda 90022-888-010

BOLT, FLANGE (6X20) (CT200)

$3.49

$

Usually ships in 3-6 days

0

13

Honda 91231-Z1V-003

OIL SEAL (6X11X4) (ARAI)

$3.49

$

In Stock, Qty 6

0

14

Honda 91251-Z1V-003

OIL SEAL (25X38X7) (ARAI)

$11.99

$

In Stock, only 4 left!

0

15

Honda 94101-06800

WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

16

Honda 94251-08000

PIN, LOCK (8MM)

$1.99

$

In Stock, Qty 13

0

17

Honda 96100-62050-00

BEARING, RADIAL BALL (6205)

$27.99

$

In Stock, only 4 left!

0

18

Honda 12126-Z1V-000

PLATE A, GUIDE

$17.99

$

Usually ships in 3-6 days

0

19

Honda 17560-Z1V-000

STAY, TANK

$77.99

$

In Stock, only 1 left!

0

20

Honda 90014-952-000

BOLT, FLANGE (6X14) (CT200)

$3.49

$

In Stock, Qty 20+

0

21

Honda 90014-952-000

BOLT, FLANGE (6X14) (CT200)

$3.49

$

In Stock, Qty 20+

0
