HRC216 K3 HXA (MAKA) - Honda 21" Walk-Behind Mower, Made in USA (SN: MAKA-1050001 - MAKA-1999999) OIL PAN (HDAH/HXA/HXC) Parts Diagram

21" Walk-Behind Mower, Made in USA

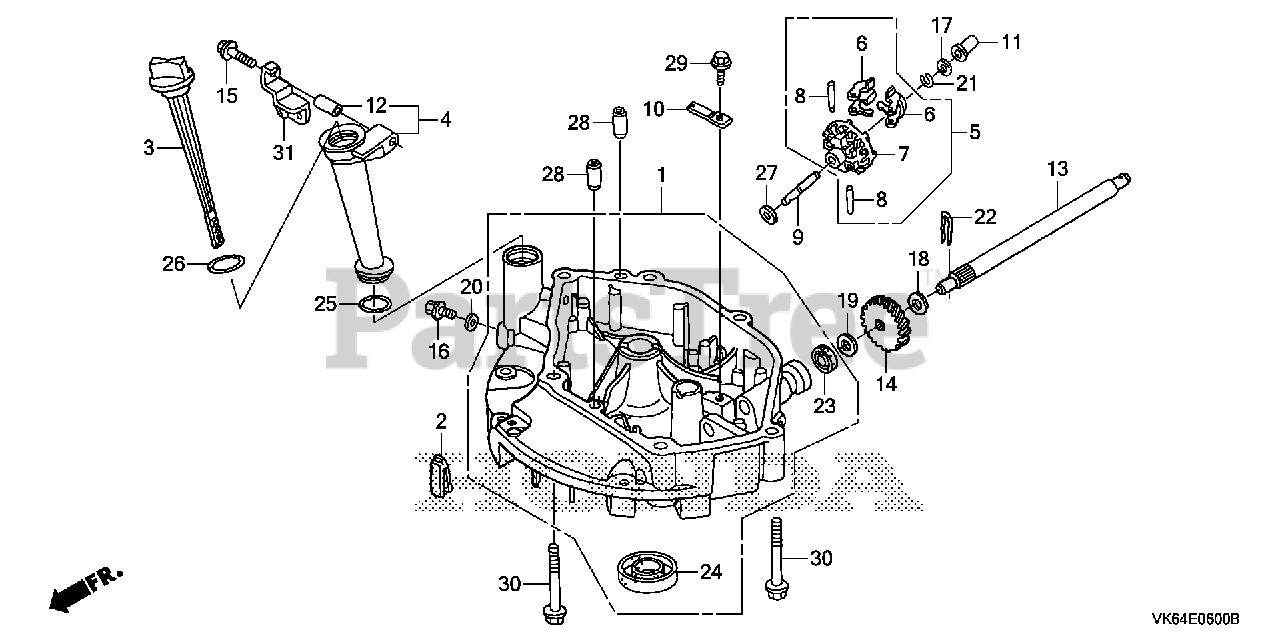

OIL PAN (HDAH/HXA/HXC) Parts Diagram

  • Title

1

Honda 11300-Z1V-407

PAN ASSY., OIL

$168.99

$

Usually ships in 3-6 days

0

2

Honda 15335-ZE7-000

RUBBER, OIL RETURN

$4.49

$

Usually ships in 3-6 days

0

3

Honda 15620-ZE6-810

DIPSTICK, OIL

$12.99

$

In Stock, only 3 left!

0

4

Honda 15630-ZE6-810

EXTENSION, OIL FILLER

$54.99

$

In Stock, only 2 left!

0

5

Honda 16510-ZE6-000

GOVERNOR ASSY.

$24.99

$

In Stock, only 1 left!

0

6

Honda 16511-ZE1-000

WEIGHT, GOVERNOR

$3.99

$

Usually ships in 3-6 days

0

7

Honda 16512-ZE6-000

HOLDER, GOVERNOR WEIGHT

$15.99

$

Usually ships in 3-6 days

0

8

Honda 16513-ZE1-000

PIN, GOVERNOR WEIGHT

$2.49

$

Usually ships in 3-6 days

0

9

Honda 16515-ZE6-010

SEE PART DETAILS - PRI; SHAFT, GOVERNOR HOLDER

$7.49

$

Usually ships in 3-6 days

0

10

Honda 16525-ZE6-010

PLATE, GOVERNOR SHAFT HOLDER

$6.99

$

Usually ships in 3-6 days

0

11

Honda 16531-ZE1-000

SLIDER, GOVERNOR

$3.49

$

In Stock, only 2 left!

0

12

Honda 17240-ZE6-000

COLLAR, EXTENSION

$4.99

$

Usually ships in 3-6 days

0

13

Honda 23411-ZE7-010

SHAFT, DRIVE

$52.99

$

Usually ships in 3-6 days

0

14

Honda 23431-ZG9-T20

GEAR, DRIVEN (18T)

$63.99

$

Usually ships in 3-6 days

0

15

Honda 90017-883-000

BOLT, FLANGE (6X32) (CT200)

$3.49

$

In Stock, only 2 left!

0

16

Honda 90131-ZE1-000

BOLT, DRAIN PLUG

$3.49

$

In Stock, only 4 left!

0

17

Honda 90451-ZE1-000

WASHER, THRUST (6MM)

$1.99

$

In Stock, Qty 8

0

18

Honda 90452-166-600

WASHER, THRUST (12MM)

$2.99

$

In Stock, only 1 left!

0

19

Honda 90452-187-000

SEE PART DETAILS - PRI; WASHER (10X21)

$2.99

$

In Stock, only 2 left!

0

20

Honda 90601-ZE1-000

WASHER, DRAIN PLUG (10.2MM)

$1.49

$

In Stock, only 3 left!

0

21

Honda 90602-ZE1-000

CLIP, GOVERNOR HOLDER

$1.99

$

In Stock, Qty 11

0

22

Honda 90701-ZE6-000

PIN, LOCK (2.0)

$3.49

$

In Stock, only 2 left!

0

23

Honda 91205-Z1V-003

OIL SEAL (12X20X6.5)
(Superseded to 91205-ZE7-003)

$15.99

$

In Stock, only 1 left!

0

24

Honda 91252-Z1V-003

OIL SEAL (25.4X40X7)

$10.99

$

Usually ships in 3-6 days

0

25

Honda 91301-Z1V-003

O-RING (22.1X2.2)

$1.99

$

In Stock, Qty 5

0

26

Honda 91302-Z1V-003

O-RING (25.5X3)

$3.99

$

In Stock, only 1 left!

0

27

Honda 94101-06800

WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

28

Honda 94301-08140

PIN, DOWEL (8X14)

$2.99

$

In Stock, Qty 14

0

29

Honda 95701-06012-08

BOLT, FLANGE (6X12)

$2.49

$

Usually ships in 3-6 days

0

30

Honda 95701-08050-00

BOLT, FLANGE (8X50)

$3.49

$

In Stock, Qty 6

0
