HRC216 K3 HXA (MAKA) - Honda 21" Walk-Behind Mower, Made in USA (SN: MAKA-1050001 - MAKA-1999999) RECOIL STARTER (HRC216K3) (HDAH) (HXA/HXC) (2) Parts Diagram

21" Walk-Behind Mower, Made in USA

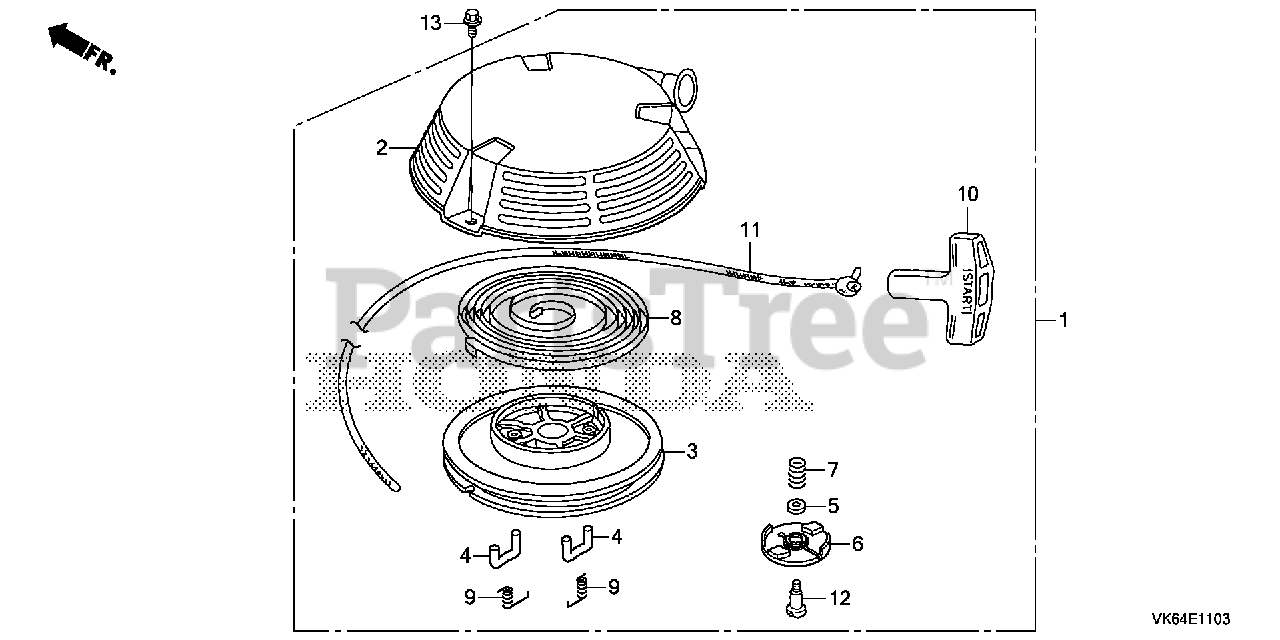

RECOIL STARTER (HRC216K3) (HDAH) (HXA/HXC) (2) Parts Diagram

  • Title

1

Honda 28400-Z1V-812ZB

STARTER ASSY., RECOIL *R280* (LONG ROPE) (POWER RED)

Note: Use from Engine SN 2021762.

$99.99

$

Usually ships in 3-6 days

0

2

Honda 28410-Z1V-701ZB

CASE, RECOIL STARTER *R280* (POWER RED)

Note: Use from Engine SN 2021762.

$59.99

$

In Stock, only 1 left!

0

3

Honda 28420-Z1V-702

REEL, RECOIL STARTER (BLACK)

Note: Use from Engine SN 2021762.

$34.99

$

In Stock, only 3 left!

0

4

Honda 28422-Z1T-701

RATCHET, STARTER

Note: Use from Engine SN 2021762.

$6.99

$

In Stock, Qty 8

0

5

Honda 28431-ZH8-801

PLATE, FRICTION

Note: Use from Engine SN 2021762.

$5.49

$

In Stock, only 2 left!

0

6

Honda 28433-Z1T-702

GUIDE, RATCHET

Note: Use from Engine SN 2021762.

$7.99

$

Usually ships in 3-6 days

0

7

Honda 28441-ZH8-801

SPRING, FRICTION

Note: Use from Engine SN 2021762.

$4.49

$

In Stock, only 1 left!

0

8

Honda 28442-ZH8-003

SPRING, RECOIL STARTER

Note: Use from Engine SN 2021762.

$18.99

$

In Stock, Qty 11

0

9

Honda 28443-Z1T-701

SPRING, RETURN

Note: Use from Engine SN 2021762.

$3.49

$

In Stock, only 2 left!

0

10

Honda 28461-ZE1-013

SEE PART DETAILS - PRI; KNOB, RECOIL STARTER

Note: Use from Engine SN 2021762.

$8.49

$

In Stock, Qty 15

0

11

Honda 28462-Z1V-811

ROPE, RECOIL STARTER (LONG TYPE)

Note: Use from Engine SN 2021762.

$8.99

$

In Stock, only 2 left!

0

12

Honda 90003-ZH8-801

SCREW, SETTING

Note: Use from Engine SN 2021762.

$4.49

$

In Stock, only 3 left!

0

13

Honda 95701-06008-00

BOLT, FLANGE (6X8)

Note: Use from Engine SN 2021762.

$3.49

$

In Stock, only 4 left!

0
