HRC216 K3 PDA (MAJA) - Honda 21" Walk-Behind Mower, Made in USA (SN: MAJA-1010001 - MAJA-9999999) CRANKSHAFT@PISTON (PDA) Parts Diagram

21" Walk-Behind Mower, Made in USA

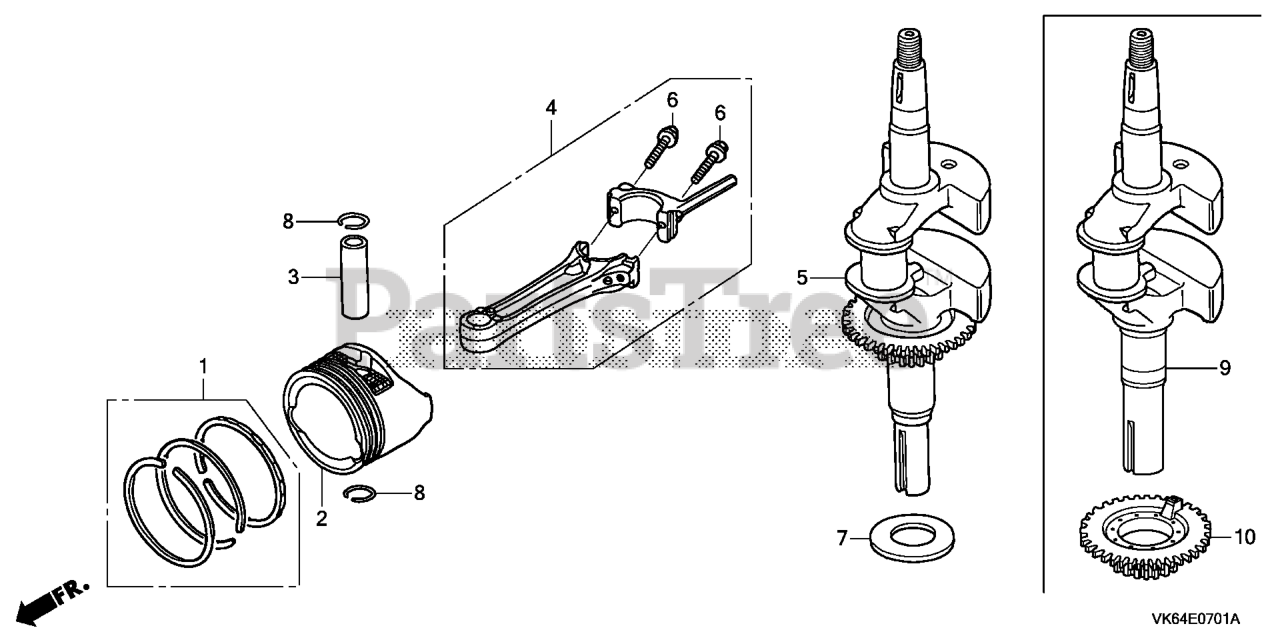

CRANKSHAFT@PISTON (PDA) Parts Diagram

  • Title

1

Honda 13010-Z2A-014

RING SET, PISTON (STD) (TPR)

$15.99

$

Usually ships in 3-6 days

0

2

Honda 13101-Z8A-900

PISTON

$30.99

$

In Stock, only 4 left!

0

3

Honda 13111-ZE0-000

PIN, PISTON (Honda Code 1426576).

Note: Use up to Engine SN 1019348.

$7.99

$

Usually ships in 3-6 days

0

3

Honda 13111-Z8B-000

PIN, PISTON

Note: Use from Engine SN 1019349.

$9.49

$

Usually ships in 3-6 days

0

4

Honda 13200-Z0J-000

ROD ASSY., CONNECTING
(Superseded to 13200-ZDS-000)

$19.99

$

In Stock, only 1 left!

0

4

Honda 13200-ZDS-000

CONN ROD ASSY.

$19.99

$

In Stock, only 1 left!

0

5

Honda 06131-Z8B-W40

CRANKSHAFT KIT(N4

Note: Use up to Engine SN 1019348.

$90.99

$

In Stock, only 2 left!

0

6

Honda 90001-ZE1-000

BOLT, CONNECTING ROD (Honda Code 1431055).

Note: Use up to Engine SN 1019348.

$3.99

$

Usually ships in 3-6 days

0

6

Honda 90001-Z1L-000

BOLT, CONNECTING ROD

$2.99

$

Usually ships in 3-6 days

0

6

Honda 90006-Z8B-000

BOLT, CONNECTING ROD

Note: Use from Engine SN 1019349.

$1.99

$

In Stock, Qty 5

0

7

Honda 90402-ZL8-000

WASHER, THRUST (Honda Code 5581012).

Note: Use up to Engine SN 1022175.

$2.49

$

In Stock, Qty 6

0

7

Honda 90402-Z0Y-000

WASHER, THRUST

Note: Use from Engine SN 1022176.

$0.99

$

In Stock, Qty 8

0

8

Honda 90551-ZE0-000

SEE PART DETAILS - PRI; CLIP, PISTON PIN (13MM)

$1.99

$

In Stock, only 3 left!

0

9

Honda 13311-Z8B-950

CRANKSHAFT

Note: Use from Engine SN 1019349.

$67.99

$

Usually ships in 3-6 days

0

10

Honda 13621-Z8B-900

PULLEY, TIMING BELT DRIVE

Note: Use from Engine SN 1019349.

$7.99

$

In Stock, only 1 left!

0
