HRC216 K3 PDA (MAJA) - Honda 21" Walk-Behind Mower, Made in USA (SN: MAJA-1010001 - MAJA-9999999) REAR WHEEL (PDA) Parts Diagram

21" Walk-Behind Mower, Made in USA

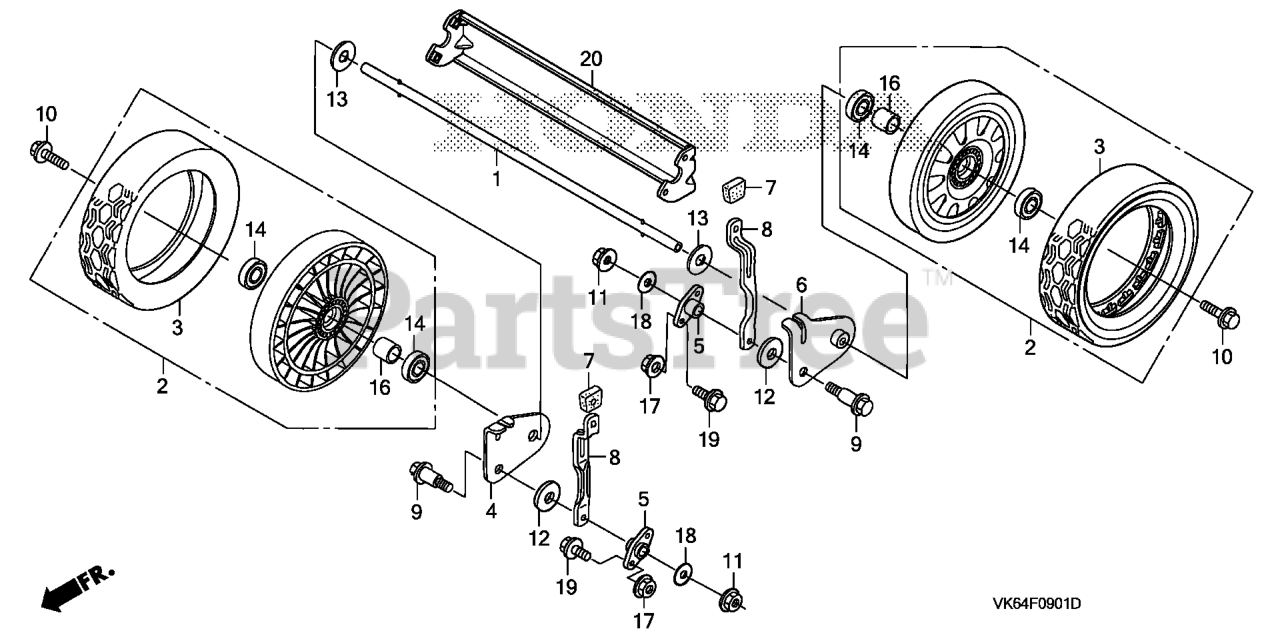

REAR WHEEL (PDA) Parts Diagram

  • Title

1

Honda 42311-VK6-700

SHAFT, RR. AXLE

$17.99

$

Usually ships in 3-6 days

0

2

Honda 42700-VK6-702ZA

WHEEL ASSY., RR. *NH462R* (VINTAGE GRAY SOLID)

$69.99

$

In Stock, only 2 left!

0

3

Honda 42751-VK6-010

TIRE (9 INCH)

$31.99

$

Usually ships in 3-6 days

0

4

Honda 42930-VK6-700

ARM, R. RR. ADJUSTING

$23.99

$

Usually ships in 3-6 days

0

5

Honda 42936-VK6-700

HOLDER, RR. AXLE

$10.99

$

Usually ships in 3-6 days

0

6

Honda 42940-VK6-700

ARM, L. RR. ADJUSTING

$22.99

$

Usually ships in 3-6 days

0

7

Honda 42952-VG3-000

SEE PART DETAILS - PRI; GRIP, ADJUSTER
(Superseded to 42952-VG3-000ZA)

Note: Use up to Frame SN 1010841.

$0.99

$

In Stock, Qty 20+

0

7

Honda 42952-VG3-000ZA

SEE PART DETAILS - PRI; GRIP, ADJUSTER *NH105* (MAT BLACK)

$0.99

$

In Stock, Qty 20+

0

8

Honda 42961-VK6-000

PLATE, RR. ADJUSTER

$7.99

$

In Stock, only 3 left!

0

9

Honda 90103-VK6-700

BOLT, RR. HEIGHT ADJUSTER

$25.99

$

Usually ships in 3-6 days

0

10

Honda 90110-VA4-000

SEE PART DETAILS - PRI; BOLT, WHEEL

$4.49

$

In Stock, Qty 12

0

11

Honda 90115-659-003

NUT, SELF-LOCK (8MM) (Honda Code 0599480).

$0.99

$

In Stock, Qty 20+

0

11

Honda 90309-428-731

SEE PART DETAILS - PRI; NUT, FLANGE (8MM)

$4.99

$

In Stock, Qty 10

0

12

Honda 90505-VB5-C00

WASHER, WHEEL SPACER (12.7X28.5X3.2)

$0.99

$

Usually ships in 3-6 days

0

13

Honda 90505-VB5-C00

WASHER, WHEEL SPACER (12.7X28.5X3.2)

$0.99

$

Usually ships in 3-6 days

0

14

Honda 91051-VK6-700

BEARING, RADIAL BALL (6201)

$6.99

$

In Stock, only 4 left!

0

16

Honda 91554-VK6-700

COLLAR, WHEEL

$

$

Currently unavailable

17

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

Note: Use up to Frame SN 1013906.

$0.99

$

In Stock, Qty 20+

0

18

Honda 94103-08000

WASHER, PLAIN (8MM)

$0.99

$

In Stock, Qty 20+

0

19

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use up to Engine SN 1543277.

$2.49

$

In Stock, Qty 20+

0

20

Honda 42937-VK6-700

PLATE, RR. AXLE

Note: Use from Frame SN 1013907.

$13.99

$

Usually ships in 3-6 days

0
