HRC7013 K1 ZXA (CPH1) - Honda Walk-Behind Mower, Made in Japan (SN: CPH1-2000001 - CPH1-9999999) AIR CLEANER Parts Diagram

Walk-Behind Mower, Made in Japan

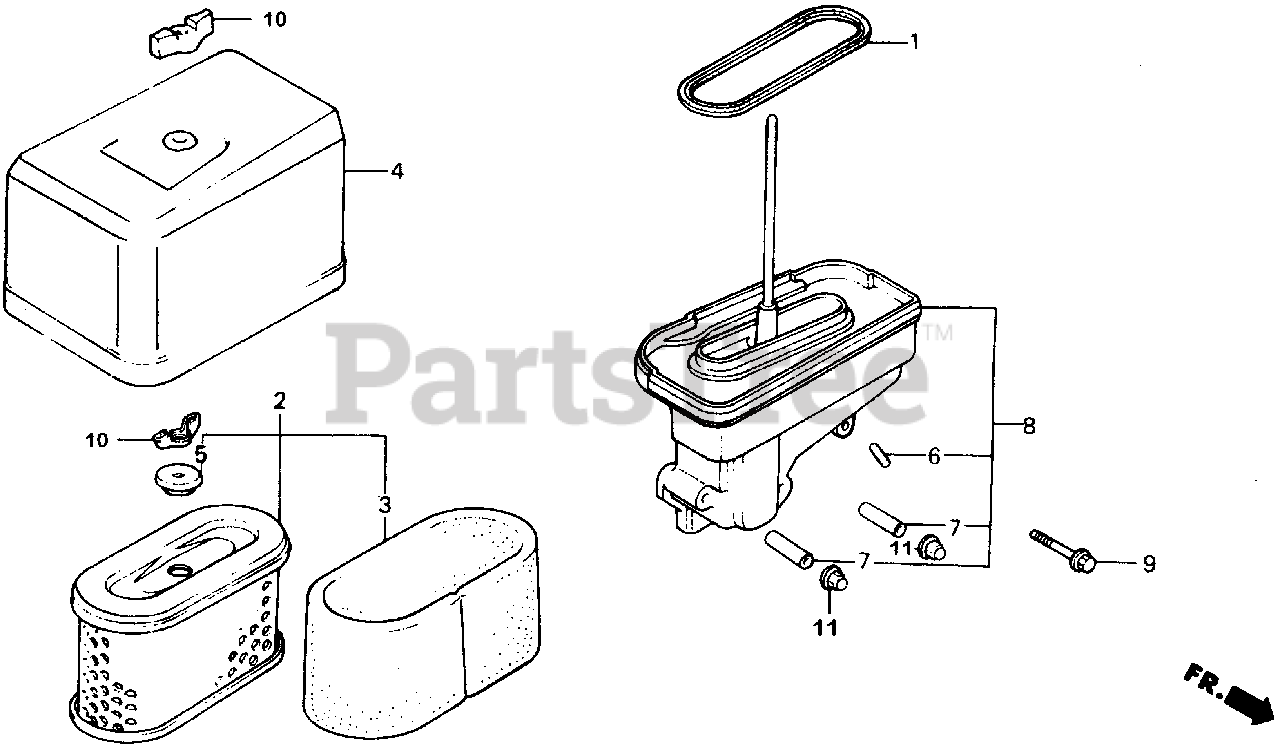

AIR CLEANER Parts Diagram

  • Title

1

Honda 16271-ZE8-000

GASKET, ELBOW

Note: Use up to Engine SN 2999999.

$5.49

$

In Stock, only 2 left!

0

2

Honda 17210-ZF5-000

SEE PART DETAILS - SUP; ELEMENT, AIR CLEANER (METAL BASE)
(Superseded to 17210-ZF5-505)

Note: Use up to Engine SN 2999999.

$37.99

$

In Stock, Qty 5

0

2

Honda 17210-ZF5-505

SEE PART DETAILS - PRI; ELEMENT, AIR CLEANER (METAL BASE)
(Superseded to 17210-ZF5-010)

Note: Use up to Engine SN 2999999.

$37.99

$

In Stock, Qty 5

0

2

Honda 17211-ZF5-V01

ELEMENT, AIR CLEANER (PLASTIC BASE)

Note: Use from Engine SN 6000001.

$29.99

$

In Stock, only 1 left!

0

3

Honda 17218-ZF5-V00

FILTER (OUTER)

Note: Use from Engine SN 6000001.

$10.99

$

In Stock, only 2 left!

0

3

Honda 17218-ZF5-000

SEE PART DETAILS - SUP; FILTER (OUTER)

Note: Use up to Engine SN 2999999.

$

$

Not available

3

Honda 17218-ZF5-505

SEE PART DETAILS - PRI; FILTER (OUTER)
(Superseded to 17218-ZF5-305)

Note: Use up to Engine SN 2999999.

$9.49

$

In Stock, only 2 left!

0

4

Honda 17230-ZE8-013

COVER, AIR CLEANER (DUAL)

Note: Use up to Engine SN 2999999.

$40.99

$

Usually ships in 3-6 days

0

4

Honda 17231-ZF5-V00

COVER, AIR CLEANER

Note: Use from Engine SN 6000001.

$46.99

$

In Stock, only 2 left!

0

5

Honda 17232-891-000

GROMMET, AIR CLEANER

Note: Use up to Engine SN 2999999.

$6.49

$

In Stock, only 4 left!

0

6

Honda 17238-ZE1-000

COLLAR, AIR CLEANER

Note: Use up to Engine SN 2999999.

$6.49

$

Usually ships in 3-6 days

0

6

Honda 91503-ZF5-V00

COLLAR, AIR CLEANER

Note: Use from Engine SN 6000001.

$5.49

$

Usually ships in 3-6 days

0

7

Honda 17238-ZE2-310

COLLAR, AIR CLEANER

Note: Use up to Engine SN 2999999.

$5.49

$

In Stock, only 4 left!

0

7

Honda 91502-ZF5-V00

COLLAR, AIR CLEANER

Note: Use from Engine SN 6000001.

$8.99

$

Usually ships in 3-6 days

0

8

Honda 17410-ZE8-013

ELBOW, AIR CLEANER

Note: Use up to Engine SN 2999999.

$51.99

$

Usually ships in 3-6 days

0

8

Honda 17410-ZF5-V00

ELBOW, AIR CLEANER

Note: Use from Engine SN 6000001.

$24.99

$

In Stock, only 2 left!

0

9

Honda 90014-ZE6-000

BOLT, FLANGE (6X35) (CT200)

$2.99

$

In Stock, Qty 6

0

10

Honda 90325-044-000

NUT, TOOL BOX SETTING

Note: Use from Engine SN 6000001.

$5.99

$

In Stock, Qty 14

0

10

Honda 90325-044-000

NUT, TOOL BOX SETTING

Note: Use up to Engine SN 2999999.

$5.99

$

In Stock, Qty 14

0

11

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0
