HRC7013 K1 ZXA (CPH1) - Honda Walk-Behind Mower, Made in Japan (SN: CPH1-2000001 - CPH1-9999999) FAN COVER Parts Diagram

Walk-Behind Mower, Made in Japan

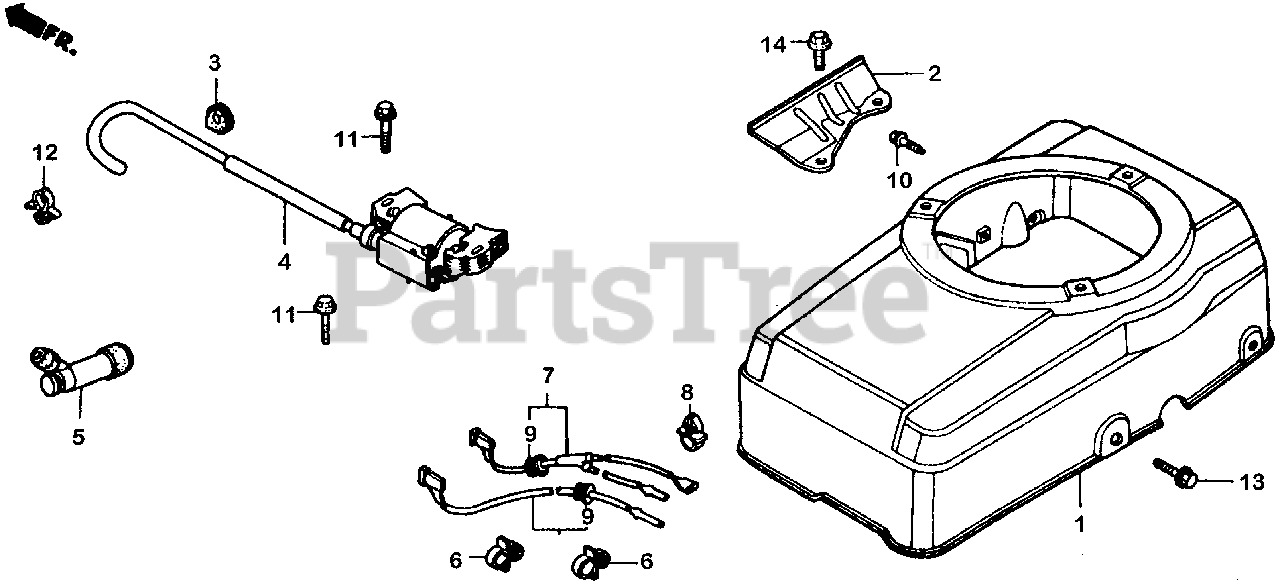

FAN COVER Parts Diagram

  • Title

1

Honda 19610-ZF5-010ZA

SEE PART DETAILS - SUP; COVER, FAN *R8* (BRIGHT RED)

$

$

Not available

1

Honda 19610-ZF5-505

SEE PART DETAILS - PRI; COVER, FAN *R8* (BRIGHT RED)

$

$

Not available

2

Honda 19612-ZF5-010

SEE PART DETAILS - PRI; PLATE, SIDE

$9.49

$

Usually ships in 3-6 days

0

3

Honda 19613-ZA8-000

GROMMET, CORD

$3.99

$

Usually ships in 3-6 days

0

4

Honda 30500-ZE9-L32

SEE PART DETAILS - SUP; COIL ASSY., IGNITION
(Superseded to 30500-Z1C-023)

$56.99

$

In Stock, only 3 left!

0

4

Honda 30500-ZE9-L33

SEE PART DETAILS - SUP; COIL ASSY., IGNITION
(Superseded to 30500-Z1C-023)

$56.99

$

In Stock, only 3 left!

0

5

Honda 30700-ZF5-013

CAP ASSY., NOISE SUPPRESSOR

$24.99

$

In Stock, only 1 left!

0

6

Honda 30701-883-000

SEE PART DETAILS - PRI; CLIP, IGNITION WIRE (8MM)

$3.99

$

In Stock, only 1 left!

0

7

Honda 36101-ZE8-810

WIRE, STOP SWITCH

$27.99

$

Usually ships in 3-6 days

0

8

Honda 36103-ZE1-000

HOLDER, STOP SWITCH WIRE

$2.49

$

Usually ships in 3-6 days

0

9

Honda 80101-166-000

GROMMET, WIRE CORD

$3.49

$

Usually ships in 3-6 days

0

10

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$1.99

$

In Stock, Qty 11

0

11

Honda 90015-883-000

BOLT, FLANGE (6X28) (CT200)

$3.99

$

In Stock, Qty 5

0

12

Honda 90684-ZA0-601

CLIP, HARNESS

$4.99

$

Usually ships in 3-6 days

0

13

Honda 95701-08016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16)

$2.49

$

In Stock, Qty 20+

0

14

Honda 95701-08020-08

BOLT, FLANGE (8X20)

$2.49

$

In Stock, Qty 6

0
