HRC7013 ZXA (CPH1) - Honda Walk-Behind Mower, Made in Japan (SN: CPH1-1000001 - CPH1-2000000) CARBURETOR Parts Diagram

Walk-Behind Mower, Made in Japan

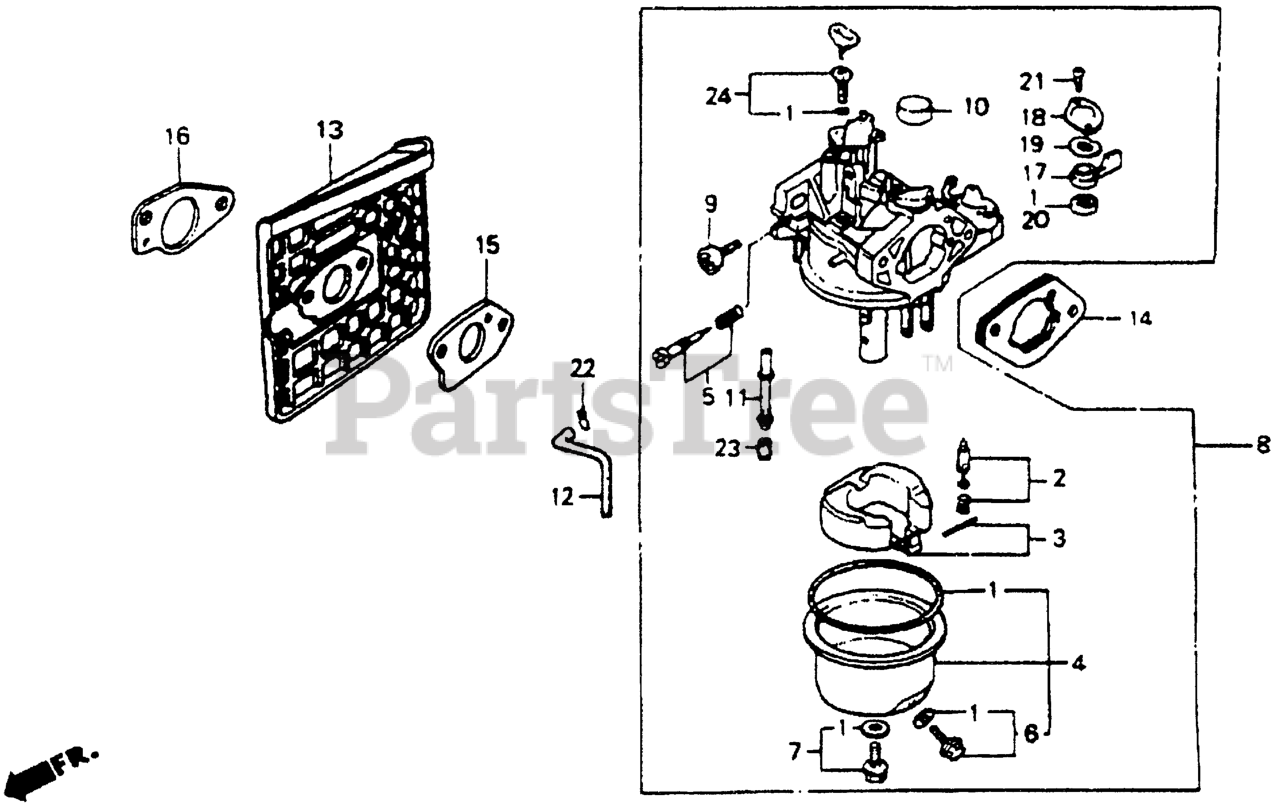

CARBURETOR Parts Diagram

  • Title

1

Honda 16010-ZE2-015

SEE PART DETAILS - PRI; GASKET SET (EXC. 16173-001-004) (CARBURETOR NO.) (EXCEPT 16173-001-004)

$18.99

$

In Stock, only 4 left!

0

2

Honda 16011-ZA0-931

VALVE SET, FLOAT (Honda Code 2059236).

$40.99

$

In Stock, only 3 left!

0

3

Honda 16013-ZA0-931

FLOAT SET (Honda Code 2059244).

$46.99

$

In Stock, only 1 left!

0

4

Honda 16015-ZE8-005

SEE PART DETAILS - PRI; CHAMBER SET, FLOAT (Honda Code 2089993).

$41.99

$

Usually ships in 3-6 days

0

5

Honda 16016-ZF6-005

SCREW SET, PILOT (CARBURETOR NO.)

$13.99

$

Usually ships in 3-6 days

0

6

Honda 16024-ZE1-811

SCREW SET, DRAIN (Honda Code 1672187). (CARBURETOR NO.)

$9.99

$

In Stock, only 4 left!

0

7

Honda 16028-ZK7-S91

SEE PART DETAILS - PRI; SCREW SET

$12.99

$

In Stock, only 3 left!

0

8

Honda 16100-ZF5-025

SEE PART DETAILS - PRI; CARBURETOR ASSY. (BE32A C) (Honda Code 5348479).

$137.99

$

Usually ships in 3-6 days

0

9

Honda 16124-ZE0-005

SCREW, THROTTLE STOP (Honda Code 1441559).

$14.99

$

In Stock, only 2 left!

0

10

Honda 16148-141-881

SEE PART DETAILS - PRI; CAP, CHOKE LEVER DUST (Honda Code 2110468).

$6.49

$

In Stock, only 1 left!

0

11

Honda 16166-ZF6-005

NOZZLE, MAIN (Honda Code 3134491).

$28.99

$

Usually ships in 3-6 days

0

12

Honda 16199-ZE8-000

TUBE, AIR VENT (75MM) (Honda Code 2278406).

$5.49

$

Usually ships in 3-6 days

0

13

Honda 16211-ZF5-003

INSULATOR, CARBURETOR (Honda Code 3134509).

$

$

Not available

14

Honda 16220-ZA0-702

SEE PART DETAILS - PRI; SPACER, CARBURETOR (Honda Code 2686533).

$11.99

$

In Stock, Qty 20+

0

15

Honda 16221-ZF6-800

SEE PART DETAILS - PRI; GASKET, CARBURETOR (Honda Code 3713161).

$2.49

$

In Stock, Qty 20+

0

16

Honda 16223-ZE9-800

SEE PART DETAILS - PRI; GASKET, INSULATOR (Honda Code 4145777).

$2.99

$

In Stock, Qty 12

0

17

Honda 16953-ZE1-405

SEE PART DETAILS - PRI; LEVER, VALVE (Honda Code 6365407).

Note: Use up to Engine SN BE32A B.

$

$

Not available

17

Honda 16953-ZE1-712

LEVER, VALVE (Honda Code 5266069).

Note: Use from Engine SN BE32A C.

$9.99

$

Usually ships in 3-6 days

0

18

Honda 16954-ZE1-812

SEE PART DETAILS - PRI; PLATE, LEVER SETTING (CARBURETOR NO.)

$3.99

$

In Stock, only 1 left!

0

19

Honda 16956-ZE1-811

SEE PART DETAILS - PRI; SPRING, PETCOCK LEVER (CARBURETOR NO.)

$3.49

$

In Stock, Qty 12

0

20

Honda 16957-ZE1-812

SEE PART DETAILS - PRI; GASKET, VALVE (Honda Code 3440708).

$3.99

$

In Stock, Qty 15

0

21

Honda 93500-03006-0H

SEE PART DETAILS - PRI; SCREW, PAN (3X6) (Honda Code 0561654).

Note: Use from Engine SN BE32A C.

$0.99

$

In Stock, only 4 left!

0

21

Honda 93500-03008-1G

SCREW, PAN (3X8) (CARBURETOR NO.)

Note: Use up to Engine SN BE32A B.

$

$

Currently unavailable

22

Honda 95002-02080

CLIP, TUBE (B8) (Honda Code 0250647).

$2.49

$

In Stock, Qty 20+

0

23

Honda 99101-ZF5-0920

JET, MAIN (#92) Use up to Engine SN BE37B A.

Note: (Optional).

$10.99

$

Usually ships in 3-6 days

0

23

Honda 99101-ZF5-0950

JET, MAIN (#95) Use up to Engine SN BE37B A.

$10.99

$

In Stock, only 2 left!

0

23

Honda 99101-ZH8-0900

SEE PART DETAILS - PRI; JET, MAIN (#90) Use from Engine SN BE81B C.

Note: (Optional).

$7.49

$

Usually ships in 3-6 days

0

24

Honda 99204-ZA0-0400

JET SET, PILOT (#40) (Honda Code 2097400).

$21.99

$

Usually ships in 3-6 days

0
