HRC7013 ZXA (CPH1) - Honda Walk-Behind Mower, Made in Japan (SN: CPH1-1000001 - CPH1-2000000) HYDRAULIC SYSTEM Parts Diagram

Walk-Behind Mower, Made in Japan

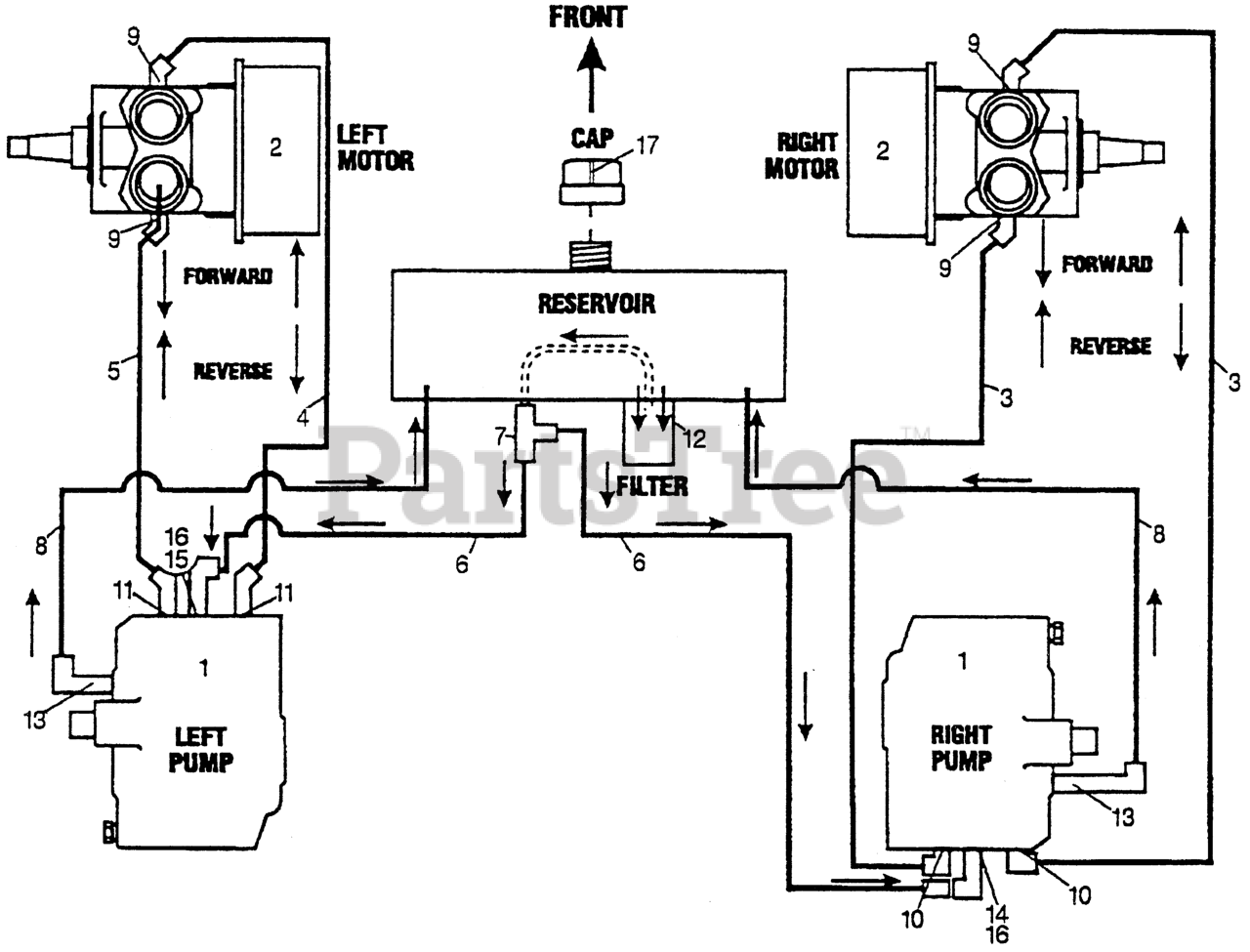

HYDRAULIC SYSTEM Parts Diagram

  • Title

NI

Honda 25010-VE4-000

SEAL KIT, PUMP

$78.99

$

Usually ships in 3-6 days

0

NI

Honda 25020-VE4-000

SEAL SET, MOTOR (WHITE)

$110.99

$

Usually ships in 3-6 days

0

1

Honda 25300-VE4-003

PUMP ASSY., HYDRAULIC (SEE KIT 25010-VE4-000--END OF BLOCK)

$1299.99

$

Usually ships in 3-6 days

0

2

Honda 25400-VE4-004

MOTOR ASSY., HYDRAULIC

$1489.99

$

Usually ships in 3-6 days

0

3

Honda 25610-VE4-003

HOSE ASSY., R. MOTOR

$96.99

$

Usually ships in 3-6 days

0

4

Honda 25620-VE4-003

HOSE ASSY. A, L. MOTOR

$

$

Not available

5

Honda 25625-VE4-003

HOSE ASSY. B, L. MOTOR

$67.99

$

Usually ships in 3-6 days

0

6

Honda 25630-VE4-003

HOSE ASSY., PUMP

$55.99

$

Usually ships in 3-6 days

0

7

Honda 25632-VE4-003

ADAPTER, TANK SUPPLY HOSE

$42.99

$

Usually ships in 3-6 days

0

8

Honda 25635-VE4-003

HOSE ASSY., PUMP RETURN

$43.99

$

Usually ships in 3-6 days

0

9

Honda 25637-VE4-003

ADAPTERM MOTOR-HOSE

$55.99

$

Usually ships in 3-6 days

0

10

Honda 25638-VE4-003

ADAPTER, R. PUMP MOTOR

$39.99

$

Usually ships in 3-6 days

0

11

Honda 25639-VE4-003

ADAPTER, L. PUMP MOTOR

$39.99

$

Usually ships in 3-6 days

0

12

Honda 25641-VE4-003

FILTER, HYDRAULIC

$25.99

$

Usually ships in 3-6 days

0

13

Honda 25644-VE4-003

ADAPTER, PUMP CASE

$62.99

$

Usually ships in 3-6 days

0

14

Honda 25645-VE4-003

ADAPTER, R. PUMP CHARGE

$19.99

$

Usually ships in 3-6 days

0

15

Honda 25646-VE4-003

ADAPTER, L. PUMP CHARGE

$28.99

$

Usually ships in 3-6 days

0

16

Honda 25647-VE4-003

ADAPTER, PUMP CHARGE HOSE

$27.99

$

Usually ships in 3-6 days

0

17

Honda 56721-VE4-013

CAP ASSY., RESERVOIR

$31.99

$

Usually ships in 3-6 days

0
