HRC7013 ZXA (CPH1) - Honda Walk-Behind Mower, Made in Japan (SN: CPH1-1000001 - CPH1-2000000) REAR DECK Parts Diagram

Walk-Behind Mower, Made in Japan

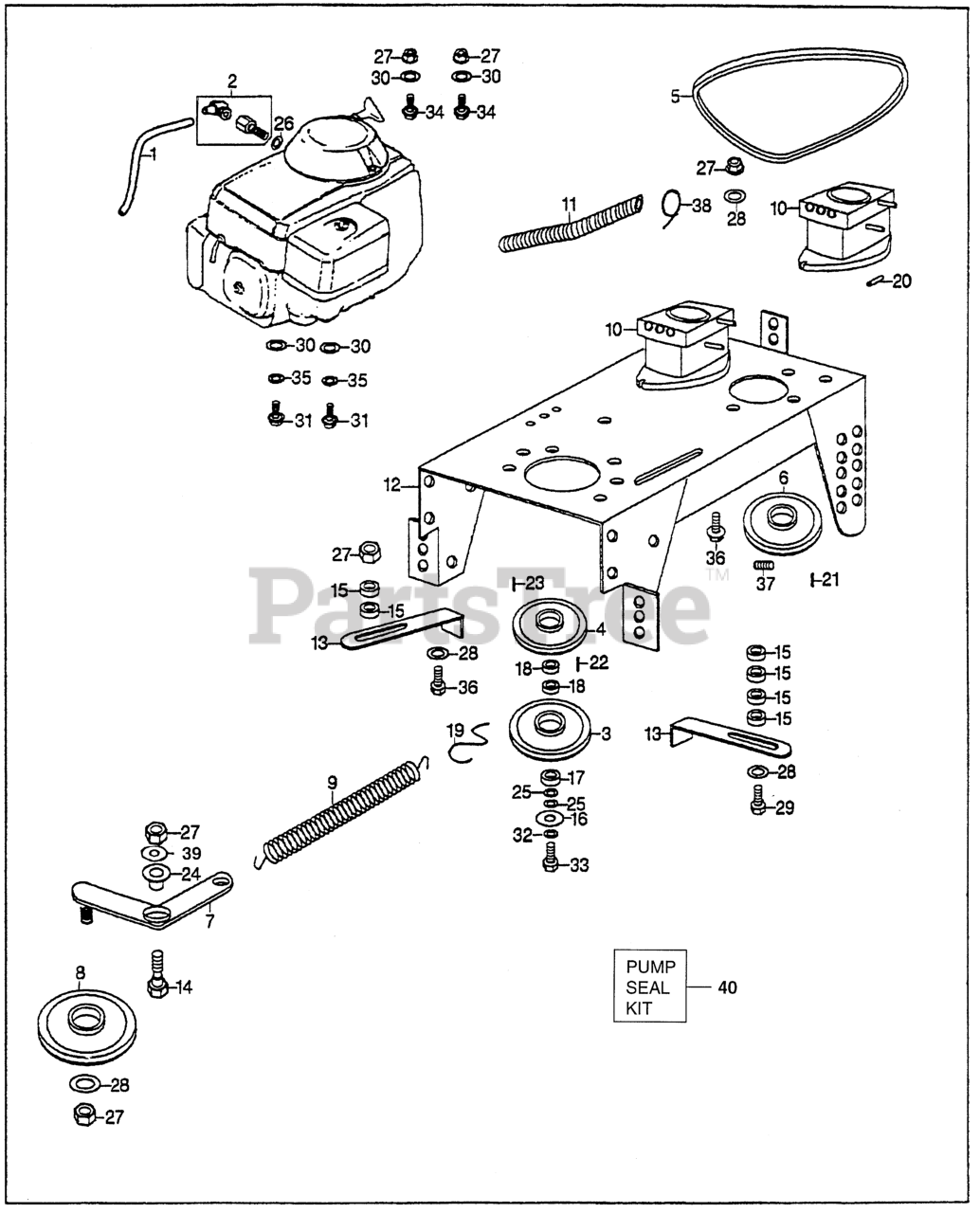

REAR DECK Parts Diagram

  • Title

1

Honda 15552-VE4-003

TUBE, OIL DRAIN

$5.49

$

Usually ships in 3-6 days

0

2

Honda 15558-772-010

VALVE, OIL SHUT-OFF (Honda Code 4166112).

$33.99

$

Usually ships in 3-6 days

0

3

Honda 04601-VE4-000

SEE PART DETAILS - PRI; PULLEY KIT, ENGINE

$234.99

$

Usually ships in 3-6 days

0

4

Honda 04601-VE4-000

SEE PART DETAILS - PRI; PULLEY KIT, ENGINE

$234.99

$

Usually ships in 3-6 days

0

5

Honda 22431-VE4-003

V-BELT, ENGINE PUMP

$43.99

$

Usually ships in 3-6 days

0

6

Honda 22435-VE4-003

PULLEY

$118.99

$

Usually ships in 3-6 days

0

7

Honda 22561-VE4-003

BELLCRANK, IDLER

$27.99

$

Usually ships in 3-6 days

0

8

Honda 22565-VE4-003

PULLEY, IDLER

$

$

Not available

9

Honda 22567-VE4-003

SEE PART DETAILS - SUP; SPRING, TENSIONER
(Superseded to 22567-VE4-013)

$15.99

$

Usually ships in 3-6 days

0

10

Honda 25300-VE4-003

PUMP ASSY., HYDRAULIC (SEE KIT 25010-VE4-000--END OF BLOCK)

$1299.99

$

Usually ships in 3-6 days

0

11

Honda 25617-VE4-003

COVER, HOSE

$17.99

$

Usually ships in 3-6 days

0

12

Honda 51110-VE4-000

BED, ENGINE

$565.99

$

Usually ships in 3-6 days

0

13

Honda 76237-VE4-003

GUIDE A, BELT

$13.99

$

Usually ships in 3-6 days

0

14

Honda 90110-VE4-003

BOLT A, SHOULDER

$7.99

$

Usually ships in 3-6 days

0

15

Honda 90514-VE4-003

SPACER

$3.49

$

Usually ships in 3-6 days

0

16

Honda 90518-VE4-003

WASHER, SPECIAL

$3.49

$

Usually ships in 3-6 days

0

17

Honda 90520-VE4-003

SPACER (7/16")

$4.49

$

Usually ships in 3-6 days

0

18

Honda 90521-VE4-003

SPACER (1/4")

$2.99

$

Usually ships in 3-6 days

0

19

Honda 90651-VE4-003

CLIP, SPRING

$2.49

$

In Stock, only 4 left!

0

20

Honda 90755-VE4-003

PIN, TAPERED

$4.49

$

Usually ships in 3-6 days

0

21

Honda 90760-VE4-003

KEY, SQUARE (5X5X28)

$12.99

$

Usually ships in 3-6 days

0

22

Honda 90766-VE4-003

KEY, SQUARE (1/4"X1/4"X1")

$16.99

$

Usually ships in 3-6 days

0

23

Honda 90767-VE4-006

KEY, TAPER

$7.99

$

Usually ships in 3-6 days

0

24

Honda 91560-VE4-003

BUSHING, SNAP

$4.99

$

Usually ships in 3-6 days

0

25

Honda 91566-VE4-003

BUSHING (1/2")

$2.49

$

Usually ships in 3-6 days

0

26

Honda 94109-20000

SEE PART DETAILS - PRI; WASHER, DRAIN PLUG (20MM) (Honda Code 0251728).

$1.99

$

In Stock, Qty 15

0

39

Honda 90507-VE4-003

WASHER (5/16")

$1.99

$

Usually ships in 3-6 days

0

40

Honda 25010-VE4-000

SEAL KIT, PUMP

$78.99

$

Usually ships in 3-6 days

0
