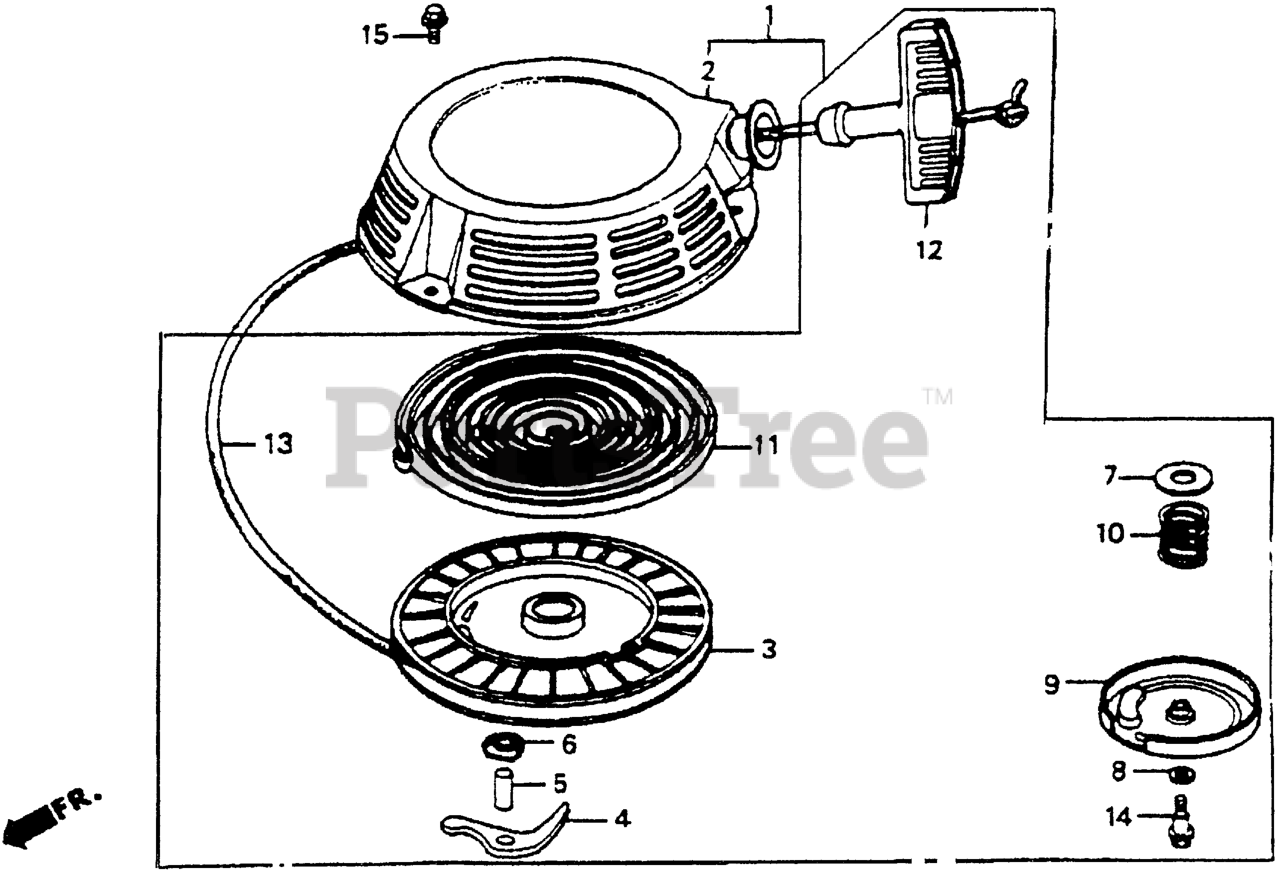

HRC7013 ZXA (CPH1) - Honda Walk-Behind Mower, Made in Japan (SN: CPH1-1000001 - CPH1-2000000) RECOIL STARTER Parts Diagram

Walk-Behind Mower, Made in Japan

RECOIL STARTER Parts Diagram

  • Title

1

Honda 28400-ZE9-003ZA

SEE PART DETAILS - PRI; STARTER ASSY., RECOIL *R8* (BRIGHT RED) (Honda Code 3415049).

Note: Use up to Engine SN 2013098.

$

$

Not available

2

Honda 28410-ZE8-003ZA

SEE PART DETAILS - PRI; CASE, RECOIL STARTER *R8* (BRIGHT RED)

Note: Use up to Engine SN 2013098.

$

$

Currently unavailable

3

Honda 28420-ZE8-812

SEE PART DETAILS - PRI; REEL, STARTER (Honda Code 4594271).

Note: Use up to Engine SN 2013098.

$67.99

$

Usually ships in 3-6 days

0

4

Honda 28422-ZE8-811

SEE PART DETAILS - PRI; RATCHET, STARTER (Honda Code 2243921).

Note: Use up to Engine SN 2013098.

$7.99

$

Usually ships in 3-6 days

0

5

Honda 28423-ZE1-711

SHAFT, RATCHET (Honda Code 1950815).

Note: Use up to Engine SN 2013098.

$10.99

$

Usually ships in 3-6 days

0

6

Honda 28424-ZE1-711

SEE PART DETAILS - SUP; PLATE, GUIDE
(Superseded to 28424-ZE1-712)

Note: Use up to Engine SN 2013098.

$5.99

$

Usually ships in 3-6 days

0

6

Honda 28424-ZE1-712

SEE PART DETAILS - PRI; PLATE, GUIDE (Honda Code 4590527).

Note: Use up to Engine SN 2013098.

$5.99

$

Usually ships in 3-6 days

0

7

Honda 28431-ZE1-711

PLATE A, FRICTION (Honda Code 1950823).

Note: Use up to Engine SN 2013098.

$3.99

$

Usually ships in 3-6 days

0

8

Honda 28432-ZG0-003

SEE PART DETAILS - PRI; PLATE B, FRICTION (Honda Code 1795459).
(Superseded to 28432-883-T20)

Note: Use up to Engine SN 2013098.

$3.49

$

In Stock, only 2 left!

0

9

Honda 28434-ZE8-811

SEE PART DETAILS - SUP; COVER, REEL STARTER (Honda Code 2278810).
(Superseded to 28434-ZE8-812)

Note: Use up to Engine SN 2013098.

$12.99

$

Usually ships in 3-6 days

0

9

Honda 28434-ZE8-812

SEE PART DETAILS - PRI; COVER, REEL STARTER (Honda Code 4581468).

Note: Use up to Engine SN 2013098.

$12.99

$

Usually ships in 3-6 days

0

10

Honda 28441-ZE1-711

SEE PART DETAILS - SUP; SPRING, FRICTION
(Superseded to 28441-883-T20)

Note: Use up to Engine SN 2013098.

$3.99

$

Usually ships in 3-6 days

0

10

Honda 28441-883-T20

SPRING, FRICTION

Note: Use up to Engine SN 2013098.

$3.99

$

Usually ships in 3-6 days

0

11

Honda 28442-ZE1-713

SEE PART DETAILS - PRI; SPRING, RETURN (Honda Code 4617403).

Note: Use up to Engine SN 2013098.

$25.99

$

Usually ships in 3-6 days

0

12

Honda 28461-889-631

SEE PART DETAILS - PRI; GRIP, STARTER (Honda Code 1956606).

Note: Use up to Engine SN 2013098.

$12.99

$

In Stock, Qty 12

0

13

Honda 28462-ZE8-811

SEE PART DETAILS - SUP; ROPE, STARTER (#6X64") (Honda Code 2106433). (N/A: USE ALT P/N 08560-ZG921-11)

Note: Use up to Engine SN 2013098.

$

$

Currently unavailable

14

Honda 90003-ZG0-003

BOLT, REEL COVER (Honda Code 1795715).

Note: Use up to Engine SN 2013098.

$3.49

$

Usually ships in 3-6 days

0

15

Honda 96001-06010-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10) (Honda Code 2154656).

Note: Use up to Engine SN 2013098.

$2.49

$

Usually ships in 3-6 days

0
