HRC7013 ZXA (CPH1) - Honda Walk-Behind Mower, Made in Japan (SN: CPH1-1000001 - CPH1-2000000) RECOIL STARTER 2 Parts Diagram

Walk-Behind Mower, Made in Japan

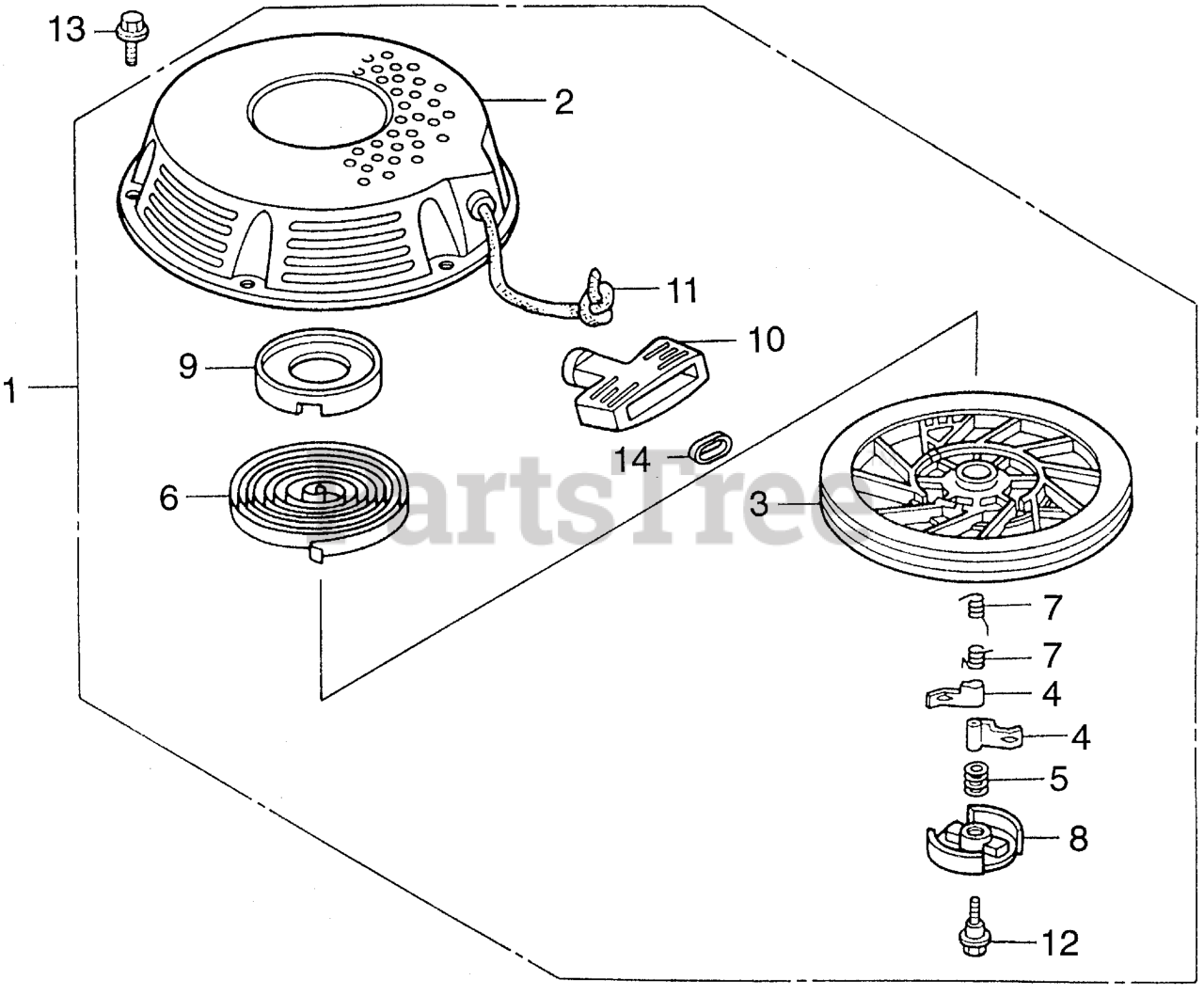

RECOIL STARTER 2 Parts Diagram

  • Title

1

Honda 28400-ZE8-004ZD

SEE PART DETAILS - PRI; STARTER ASSY., RECOIL *R280* (Honda Code 7660962). (POWER RED)

Note: Use from Engine SN 2013099.

$

$

Not available

2

Honda 28410-ZE8-004ZD

CASE, RECOIL STARTER *R280* (POWER RED)

Note: Use from Engine SN 2013099.

$

$

Not available

3

Honda 28421-ZE3-W01

PULLEY, RECOIL STARTER (Honda Code 3713328).

Note: Use from Engine SN 2013099.

$41.99

$

In Stock, only 1 left!

0

4

Honda 28422-ZE2-W01

RATCHET, STARTER (Honda Code 3678877).

Note: Use from Engine SN 2013099.

$6.99

$

In Stock, only 4 left!

0

5

Honda 28441-ZE2-W01

SPRING, FRICTION (Honda Code 3678885).

Note: Use from Engine SN 2013099.

$5.99

$

In Stock, Qty 5

0

6

Honda 28442-ZE2-W01

SPRING, STARTER RETURN (Honda Code 3678893).

Note: Use from Engine SN 2013099.

$17.99

$

In Stock, only 3 left!

0

7

Honda 28443-ZE2-W01

SPRING, RATCHET (Honda Code 3678901).

Note: Use from Engine SN 2013099.

$4.99

$

In Stock, only 3 left!

0

8

Honda 28444-ZE2-W01

RETAINER, SPRING (Honda Code 3678919).

Note: Use from Engine SN 2013099.

$13.99

$

Usually ships in 3-6 days

0

9

Honda 28445-ZE2-W01

HOLDER, SPRING (Honda Code 3678927).

Note: Use from Engine SN 2013099.

$17.99

$

Usually ships in 3-6 days

0

10

Honda 28461-ZE2-W03

SEE PART DETAILS - PRI; GRIP, STARTER

Note: Use from Engine SN 2013099.

$7.49

$

In Stock, only 4 left!

0

11

Honda 28462-ZH8-003

SEE PART DETAILS - PRI; ROPE, RECOIL STARTER (#5X55") (Honda Code 3683968).

$11.99

$

In Stock, Qty 15

0

12

Honda 90004-ZE2-W01

SCREW, CENTER (Honda Code 3679024).

Note: Use from Engine SN 2013099.

$3.99

$

In Stock, only 1 left!

0

13

Honda 96001-06010-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10) (Honda Code 2154656).

Note: Use from Engine SN 2013099.

$1.99

$

Usually ships in 3-6 days

0

14

Honda 28469-ZE2-W01

GRIP, REINFORCEMENT (Honda Code 3678976).

$6.49

$

In Stock, only 1 left!

0
