HRC7113 TXA (MZCK) - Honda Walk-Behind Mower, Made in USA (SN: MZCK-3000001 - MZCK-9999999) CHANGE LEVER Parts Diagram

Walk-Behind Mower, Made in USA

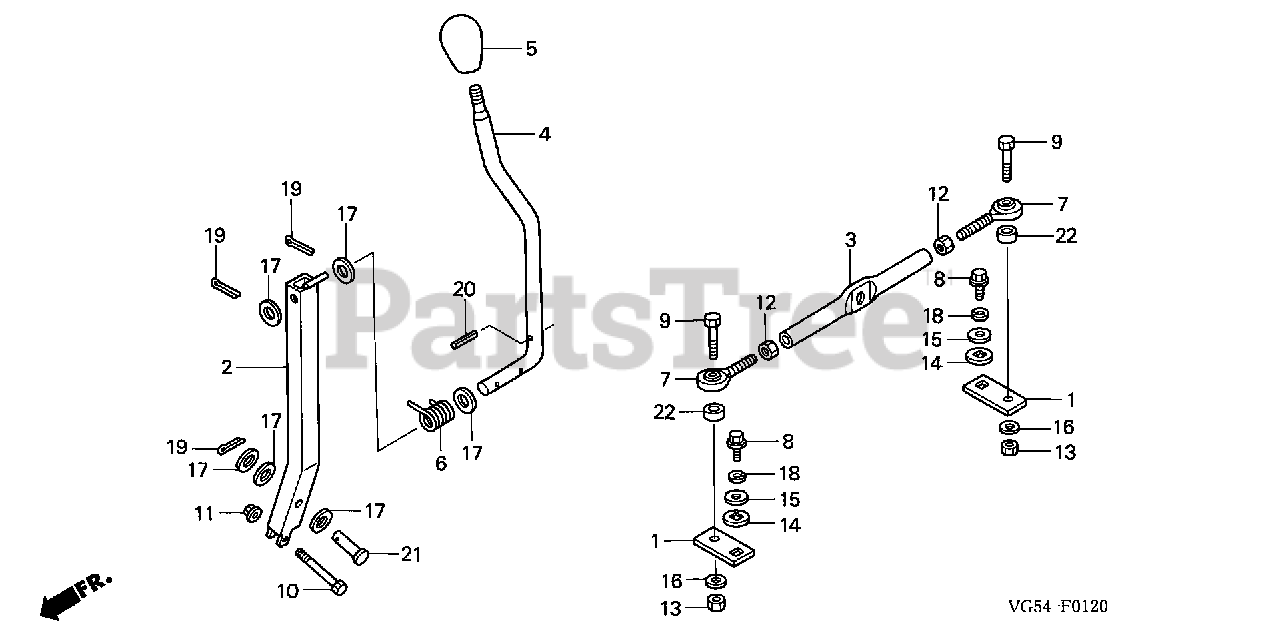

CHANGE LEVER Parts Diagram

  • Title

1

Honda 24138-772-000

ARM, CHANGE

$1.99

$

Usually ships in 3-6 days

0

2

Honda 24360-VG5-000

ARM, CHANGE

$136.99

$

Usually ships in 3-6 days

0

3

Honda 24363-VG5-000

ROD, GEARSHIFT

$55.99

$

Usually ships in 3-6 days

0

4

Honda 24411-VG5-000

LEVER, CHANGE

$40.99

$

Usually ships in 3-6 days

0

5

Honda 24415-771-000

GRIP, CHANGE LEVER

$

$

Not available

6

Honda 24416-VG5-000

SPRING, CHANGE LEVER

$2.49

$

Usually ships in 3-6 days

0

7

Honda 24644-VG5-000

END, ROD (5/16")

$19.99

$

Usually ships in 3-6 days

0

8

Honda 90102-772-000

BOLT, FLANGE (1/4")

$0.99

$

In Stock, Qty 11

0

9

Honda 90133-VG5-000

BOLT, HEX. (5/16-18X1 1/2")

$0.99

$

Usually ships in 3-6 days

0

10

Honda 90155-VG5-000

BOLT, HEX. (3/8-16X2")

$0.99

$

Usually ships in 3-6 days

0

11

Honda 90304-VE6-M00

NUT, CENTERLOCK (3/8-16)

$3.49

$

Usually ships in 3-6 days

0

12

Honda 90324-VG5-000

NUT, HEX. (5/16"-24)

$0.99

$

Usually ships in 3-6 days

0

13

Honda 90333-VG5-000

NUT, CENTERLOCK (5/16"-18")

$1.49

$

Usually ships in 3-6 days

0

14

Honda 90502-771-000

WASHER, CHANGE ARM

$1.49

$

Usually ships in 3-6 days

0

15

Honda 90510-VG5-000

WASHER, FLAT (1/4")

$0.99

$

Usually ships in 3-6 days

0

16

Honda 90511-VG5-000

WASHER, FLAT (5/16")

$0.99

$

Usually ships in 3-6 days

0

17

Honda 90517-VG5-000

WASHER, FLAT (3/4")

$0.99

$

Usually ships in 3-6 days

0

18

Honda 90530-VG5-000

WASHER, LOCK (1/4")

$0.99

$

Usually ships in 3-6 days

0

19

Honda 90756-VE6-M00

PIN, COTTER (1/8"X1 1/4") (NOT AVAILABLE)

$

$

Currently unavailable

20

Honda 90782-VG5-000

PIN, SPRING LOCK (1 /4"X1 1/4")

$1.99

$

Usually ships in 3-6 days

0

21

Honda 90785-VG5-000

PIN, CLEVIS (3/4"- 2 3/4")

$7.99

$

Usually ships in 3-6 days

0

22

Honda 91551-VG5-000

COLLAR (5/16")

$1.99

$

Usually ships in 3-6 days

0
