HRC7113 TXA (MZCK) - Honda Walk-Behind Mower, Made in USA (SN: MZCK-3000001 - MZCK-9999999) ENGINE BED Parts Diagram

Walk-Behind Mower, Made in USA

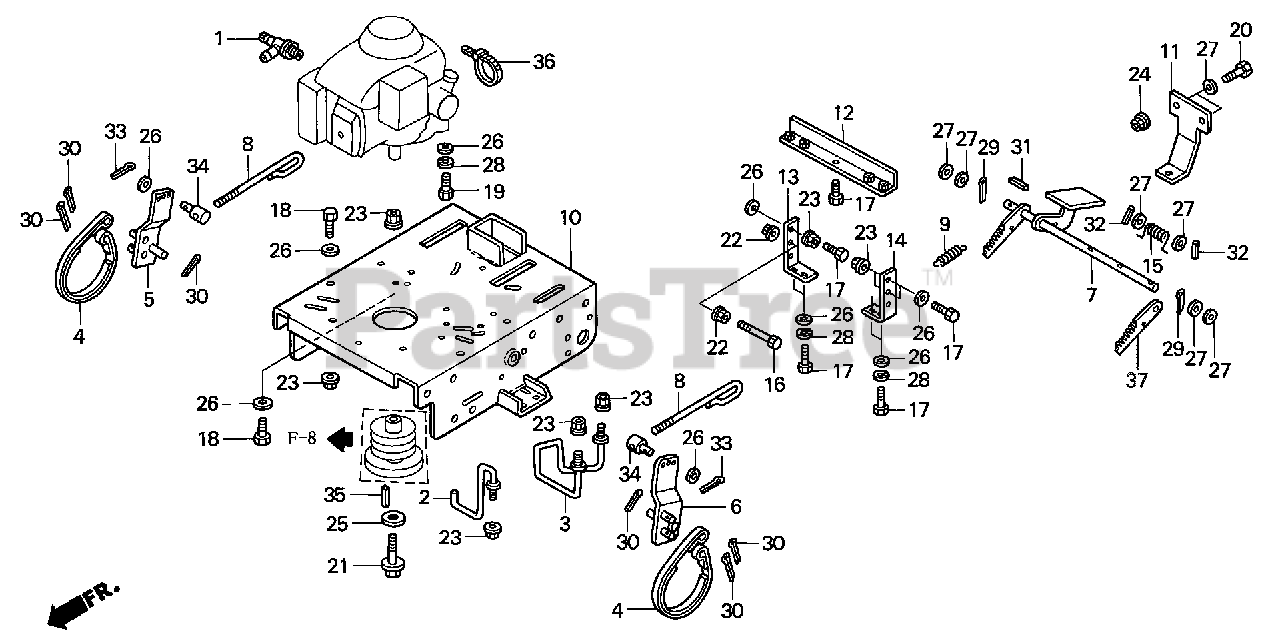

ENGINE BED Parts Diagram

  • Title

1

Honda 15558-VG5-000

VALVE, OIL SHUT-OFF

$42.99

$

Usually ships in 3-6 days

0

2

Honda 22442-VG5-000

STOPPER B, BELT

$70.99

$

Usually ships in 3-6 days

0

3

Honda 22448-VG5-000

ROD A, BELT STOPPER

$26.99

$

Usually ships in 3-6 days

0

4

Honda 43124-VG5-000

BAND, BRAKE

$60.99

$

Usually ships in 3-6 days

0

5

Honda 43410-VG5-000

ARM, R. BRAKE

$72.99

$

Usually ships in 3-6 days

0

6

Honda 43420-VG5-000

ARM, L. BRAKE

$86.99

$

Usually ships in 3-6 days

0

7

Honda 47110-VG5-000

LEVER, PARKING BRAKE

$84.99

$

Usually ships in 3-6 days

0

8

Honda 47261-VG5-000

ROD, BRAKE

$6.99

$

Usually ships in 3-6 days

0

9

Honda 47294-VG5-000

SPRING, PARKING BRAKE RETURN

$4.99

$

Usually ships in 3-6 days

0

10

Honda 51110-VG5-000

BED, ENGINE

$322.99

$

Usually ships in 3-6 days

0

11

Honda 51129-VG5-000

SUPPORT, ENGINE BED

$26.99

$

Usually ships in 3-6 days

0

12

Honda 51135-VG5-000

PLATE, TRANSMISSION MOUNTING

$52.99

$

Usually ships in 3-6 days

0

13

Honda 51138-VG5-000

BRACKET, R. TRANSMISSION MOUNTING

$13.99

$

Usually ships in 3-6 days

0

14

Honda 51139-VG5-000

BRACKET, L. TRANSMISSION MOUNTING

$13.99

$

Usually ships in 3-6 days

0

15

Honda 76294-VG4-000

SPRING, L. GUARD RETURN

$1.99

$

Usually ships in 3-6 days

0

16

Honda 90115-VG5-000

BOLT, HEX. (1/4-20X2") (NOT AVAILABLE)

$

$

Currently unavailable

17

Honda 90131-VG5-000

BOLT, HEX. (5/16-18X1")

$0.99

$

Usually ships in 3-6 days

0

18

Honda 90133-VG5-000

BOLT, HEX. (5/16-18X1 1/2")

$0.99

$

Usually ships in 3-6 days

0

19

Honda 90141-VG5-000

BOLT, HEX. (5/16-24X1")

$0.99

$

Usually ships in 3-6 days

0

20

Honda 90152-VG5-L00

BOLT, HEX. (3/8-16X1 1/4")

$0.99

$

Usually ships in 3-6 days

0

21

Honda 90186-VG5-000

BOLT, FLANGE (7/16-20X2")

$2.99

$

Usually ships in 3-6 days

0

22

Honda 90361-VG5-000

NUT, WHIZ-LOCK (1/4"-20)

$0.99

$

Usually ships in 3-6 days

0

23

Honda 90363-VG5-000

NUT, WHIZ-LOCK (5/16"-18)

$0.99

$

Usually ships in 3-6 days

0

24

Honda 90365-VG5-000

NUT, WHIZ-LOCK (3/8"-16)

$0.99

$

In Stock, Qty 9

0

25

Honda 90509-VG5-000

WASHER (7/16")

$1.49

$

Usually ships in 3-6 days

0

26

Honda 90511-VG5-000

WASHER, FLAT (5/16")

$0.99

$

Usually ships in 3-6 days

0

27

Honda 90512-VG5-000

WASHER, FLAT (3/8")

$0.99

$

In Stock, only 2 left!

0

28

Honda 90531-VG5-000

WASHER, LOCK (5/16")

$0.99

$

Usually ships in 3-6 days

0

29

Honda 90752-VG5-000

PIN, COTTER (7/64"X3/4")

$0.99

$

Usually ships in 3-6 days

0

30

Honda 90756-VE6-M00

PIN, COTTER (1/8"X1 1/4") (NOT AVAILABLE)

$

$

Currently unavailable

31

Honda 90761-VG5-000

PIN, ROLL (3/16X1 1/2")

$1.99

$

Usually ships in 3-6 days

0

32

Honda 90762-VG5-000

PIN, ROLL (3/16X2")

$0.99

$

Usually ships in 3-6 days

0

33

Honda 90766-VG5-000

SEE PART DETAILS - SUP; PIN, COTTER (3/32" X 3/4")

$

$

Currently unavailable

34

Honda 90779-VG5-000

PIN, PIVOT (5/16)

$5.99

$

Usually ships in 3-6 days

0

35

Honda 90787-VG5-000

KEY (1/4X1/4X3")

$2.99

$

Usually ships in 3-6 days

0

36

Honda 91453-VG5-000

TIE, FUEL TUBE

$0.99

$

Usually ships in 3-6 days

0

37

Honda 47161-VG5-300

ARM, PARKING BRAKE

$13.99

$

Usually ships in 3-6 days

0
