HRC7113 TXA (MZCK) - Honda Walk-Behind Mower, Made in USA (SN: MZCK-3000001 - MZCK-9999999) PISTON + CONNECTING ROD Parts Diagram

Walk-Behind Mower, Made in USA

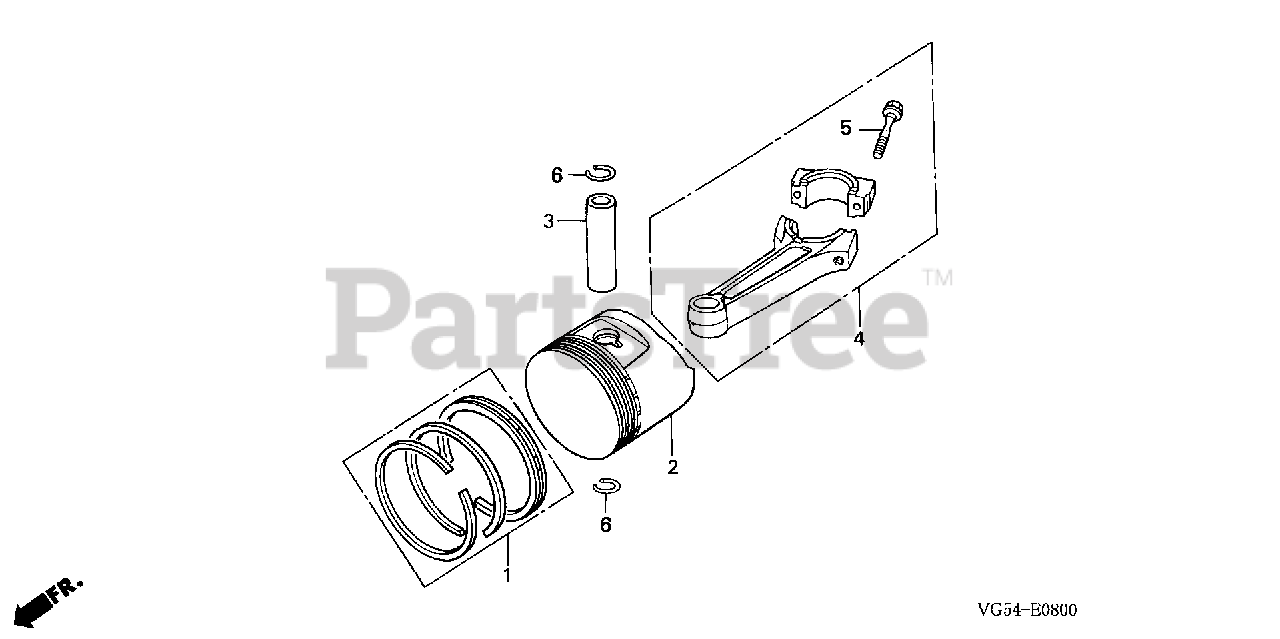

PISTON + CONNECTING ROD Parts Diagram

  • Title

1

Honda 13010-ZF6-003

SEE PART DETAILS - PRI; RING SET, PISTON (STD)

$56.99

$

In Stock, Qty 5

0

1

Honda 13011-ZF6-003

SEE PART DETAILS - PRI; RING SET, PISTON (OS 0.25)

$89.99

$

Usually ships in 3-6 days

0

1

Honda 13012-ZF6-003

SEE PART DETAILS - SUP; RING SET, PISTON (OS 0.50)

$

$

Not available

1

Honda 13012-ZF6-005

SEE PART DETAILS - PRI; RING SET, PISTON (OS 0.50)

$88.99

$

Usually ships in 3-6 days

0

1

Honda 13013-ZF6-003

RING SET, PISTON (0.75)

$89.99

$

Usually ships in 3-6 days

0

2

Honda 13101-ZF6-W00

PISTON (STD)

$84.99

$

Usually ships in 3-6 days

0

2

Honda 13102-ZF6-W00

PISTON (OS 0.25)

$150.99

$

Usually ships in 3-6 days

0

2

Honda 13103-ZF6-W00

PISTON (OS 0.50)

$

$

Not available

2

Honda 13104-ZF6-W00

PISTON (0.75)

$

$

Not available

3

Honda 13111-ZF6-000

SEE PART DETAILS - PRI; PIN, PISTON

$17.99

$

In Stock, only 2 left!

0

4

Honda 13200-ZE9-010

SEE PART DETAILS - SUP; ROD ASSY., CONNECTING
(Superseded to 13200-Z1E-000)

$171.99

$

In Stock, only 1 left!

0

4

Honda 13200-ZE9-020

SEE PART DETAILS - SUP; ROD ASSY., CONNECTING
(Superseded to 13200-Z1E-000)

$171.99

$

In Stock, only 1 left!

0

4

Honda 13200-ZE9-315

ROD ASSY., CONNECTING

$

$

Not available

5

Honda 90001-ZE8-000

BOLT, CONNECTING ROD

$5.49

$

In Stock, only 3 left!

0

6

Honda 90601-ZE3-000

CLIP, PISTON PIN (20MM)

$2.99

$

In Stock, Qty 12

0
