HRK 45 (59A40090727) - Cub Cadet Yanmar Tractor Hydraulic Chute Rotating Kit General Assembly Parts Diagram

Tractor Hydraulic Chute Rotating Kit

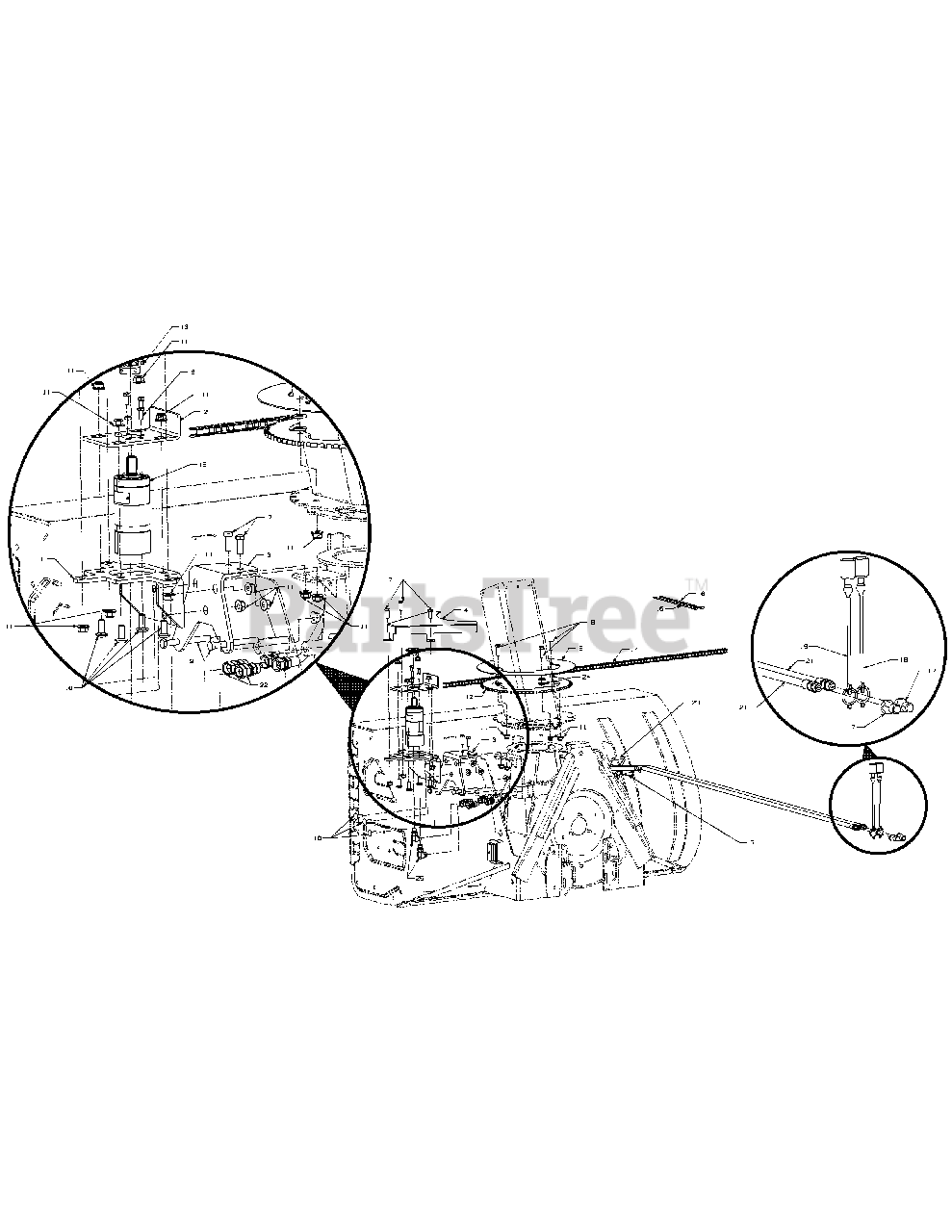

General Assembly Parts Diagram

  • Title

1

Cub Cadet YS-603-07028

Motor Support Bracket Ass.

$

$

Not available

2

Cub Cadet YS-703-07026

Motor Adjustment Mount

$

$

Not available

3

Cub Cadet YS-703-07027

Hydro Motor Support Mount

$

$

Not available

4

Cub Cadet YS-703-07058

Chute Chain Cover

$

$

Not available

5

Cub Cadet YS-703-07105

Hydro Rotating Sprocket Cover

$

$

Not available

6

Cub Cadet YS-710-0195

Hex Screw, 1/4-20 x .625
(Superseded to 910-0195)

$3.49

$

In Stock, only 1 left!

0

7

Cub Cadet YS-710-0514

Hex Screw, 3/8-16 x 1.00
(Superseded to 710-0514)

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet YS-710-3005

Hex Screw, 3/8-16 x 1.25
(Superseded to 710-3005)

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet YS-710-3085

Hex Screw, 3/8-16 x 3.50
(Superseded to 710-3085)

$4.49

$

In Stock, Qty 10

0

10

Cub Cadet YS-710-3097

Carriage Bolt, 3/8-16 x 1.0
(Superseded to 710-3097)

$6.49

$

In Stock, Qty 5

0

11

Cub Cadet YS-712-04065

Flange Lock Nut, 3/8-16
(Superseded to 712-04065)

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet YS-713-04070

Chute Ring Sprocket

$

$

Not available

13

Cub Cadet YS-713-04071

11-Tooth Sprocket

$

$

Not available

14

Cub Cadet YS-713-04073

Roller Chain

$

$

Not available

15

Cub Cadet YS-718-04544

Hydro Motor

$

$

Not available

16

Cub Cadet YS-726-0230

Cable Tie
(Superseded to 726-0230)

$25.99

$

In Stock, only 2 left!

0

17

Cub Cadet YS-727-04243

Hydraulic Coupling

$

$

Not available

18

Cub Cadet YS-727-04249

Female Plug

$

$

Not available

19

Cub Cadet YS-727-04250

Female Plug

$

$

Not available

20

Cub Cadet YS-727-04265

Sleeve Hose

$

$

Not available

21

Cub Cadet YS-727-04272

Hydraulic Hose

$

$

Not available

22

Cub Cadet YS-727-04273

Hydraulic Fitting

$

$

Not available

23

Cub Cadet YS-732-04598

Hose Guide Bracket

$

$

Not available

24

Cub Cadet YS-736-3004

Flat Washer, .406 x .875 x .105
(Superseded to 936-3004)

$

$

Not available

25

Cub Cadet YS-737-04185

Hydraulic Fitting

$

$

Not available

Cub Cadet YS-750-05176

Spacer 3/8X1.0X2.25

Note: Not Shown

$

$

Not available
