HRL 5500 (UT-03776) - Homelite Generator Generator Parts Diagram

Generator

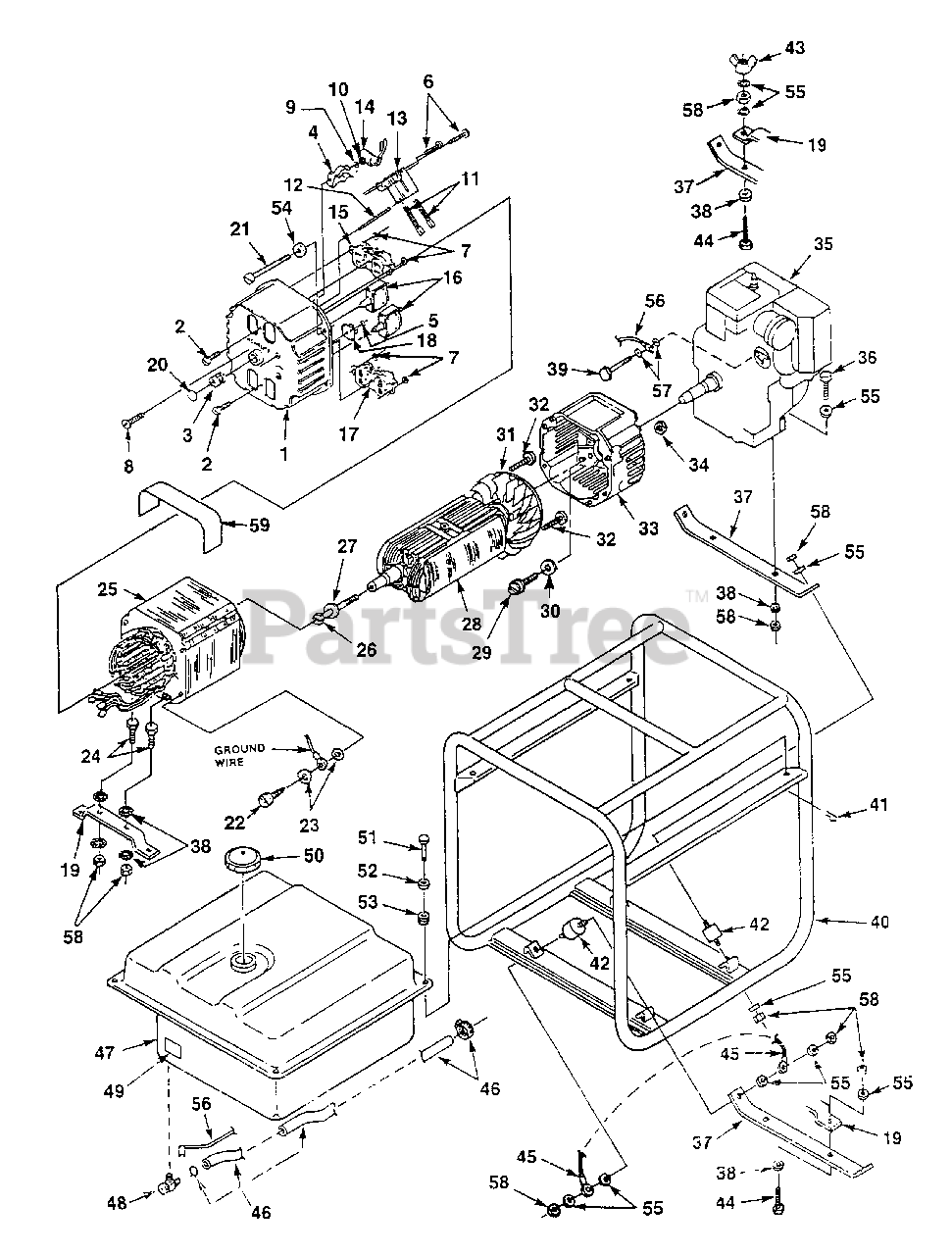

Generator Parts Diagram

  • Title

1

Homelite A02440A

BRUSH HEAD- Complete

$

$

Not available

2

Homelite 80630

SCREW- Mach. Pan Hd. (6-32 x 1/2")

$

$

Not available

3

Homelite 03044

BEARING- Needle

$

$

Not available

4

Homelite 02435

CLIP- Spring

$

$

Not available

5

Homelite 02436

WASHER- Shaft Retention

$

$

Not available

6

Homelite 82526

SCREW- Pan Hd (6-19 x 3/4")

$

$

Not available

7

Homelite 02437

WASHER- Shaft Retention

$6.99

$

Usually ships in 3-7 days

0

8

Homelite 80571

SCREW- Mach. Pan Hd. (6-32 x 3/4")

$

$

Not available

9

Homelite 83119

WASHER- Lock Ext. (#6)

$

$

Currently unavailable

10

Homelite 81002

NUT- Hex

$

$

Not available

Homelite A03035

BRUSH & RETAINER KIT
(Superseded to UP03736)

$

$

Not available

11

Homelite 02664

BRUSH
(Superseded to UP03736)

$

$

Not available

12

Homelite 02857

PIN- Retainer

$5.99

$

Usually ships in 3-7 days

0

13

Homelite 02365

HOLDER- Brush
(Superseded to UP03449)

$42.99

$

Usually ships in 3-7 days

0

14

Homelite A02860

CAPACITOR W/Lead

$

$

Currently unavailable

15

Homelite 50991A

RECEPTACLE- Duplex (NEMA 5-15R)
(Superseded to UP03497)

$

$

Not available

16

Homelite 02511

BREAKER-Circuit (25 AMP)
(Superseded to UP06388)

$

$

Not available

17

Homelite 02863A

RECEPTACLE- 240V (NEMA 6-20R)

$

$

Not available

18

Homelite 95672

RECTIFIER

$43.99

$

Usually ships in 3-7 days

0

19

Homelite 028451

BRACKET- Generator Mounting

$

$

Not available

20

Homelite 02438

PLUG- Expansion

$

$

Not available

21

Homelite 4885301

BOLT- Stator
(Superseded to UP03430)

$25.99

$

Usually ships in 3-7 days

0

22

Homelite 82538

SCREW

$2.49

$

Usually ships in 3-7 days

0

23

Homelite 83121

WASHER- Lock (Int./Ext.)

$

$

Not available

24

Homelite 80083

SCREW (5/16 x 3/4")

$

$

Not available

25

Homelite A02433S

STATOR & CORE
(Superseded to A02433AS)

$

$

Currently unavailable

26

Homelite 4885214

BOLT- Rotor

$

$

Not available

27

Homelite 03433

WASHER- Lock (5/16")
(Superseded to 653671)

$5.49

$

Usually ships in 3-7 days

0

28

Homelite A02430AS

ROTOR & CORE

$

$

Not available

29

Homelite 80187

SCREW- Cap Hex Hd.
(Superseded to PS80187)

$2.49

$

Usually ships in 3-7 days

0

30

Homelite 83078

WASHER- Lock (Int./Ext.)

$

$

Not available

31

Homelite A04013

FAN ASSEMBLY
(Superseded to UP03737)

$

$

Not available

32

Homelite 82526

SCREW- Pan Hd.

$

$

Not available

33

Homelite 020267

END BELL
(Superseded to UP06695)

$

$

Not available

34

Homelite 81204

NUT- Hex Locking

$6.49

$

Usually ships in 3-7 days

0

35

ENGINE

$

$

Not available

36

Homelite 80197

SCREW- Cap Hex Hd.

$

$

Not available

37

Homelite 49265

SUPPORT- Engine
(Superseded to UP03535)

$35.99

$

Usually ships in 3-7 days

0

38

Homelite 83033

WASHER (Ext./Int.)
(Superseded to 83081)

$

$

Not available

39

Homelite 80049

SCREW

$

$

Not available

40

Homelite A065561

ROLL CAGE

$

$

Currently unavailable

41

Homelite 49412

PIN- Cotter

$

$

Not available

42

Homelite 49367

ISOLATOR- Vibration
(Superseded to UP03483)

$

$

Not available

43

Homelite 81015

NUT- Wing

$

$

Not available

44

Homelite 80088

SCREW- Mach. Hex Hd.

$

$

Not available

45

Homelite A49399

GROUND STRAP

$

$

Currently unavailable

46

Homelite A49306

FUEL LINE ASSEMBLY
(Superseded to UP03517)

$

$

Not available

47

Homelite 489312

FUEL TANK

$

$

Currently unavailable

48

Homelite 49005

VALVE- Fuel

$

$

Not available

49

Homelite 49340A

DECAL- Fuel Valve
(Superseded to UP07235)

$

$

Not available

50

Homelite 04758

CAP- Fuel

$

$

Not available

51

Homelite 49329

PIN- Clevis

$

$

Not available

52

Homelite 84006

WASHER- Flat

$

$

Not available

53

Homelite 49351

GROMMET- Isolator

$

$

Not available

54

Homelite 84124

WASHER- Flat
(Superseded to UP03418)

$5.99

$

Usually ships in 3-7 days

0

55

Homelite 83081

WASHER- Lock (Int.)

$

$

Not available

56

Homelite A03322

GROUND STRAP

$

$

Currently unavailable

57

Homelite 83070

WASHER- Lock

$

$

Not available

58

Homelite 81162

NUT- Hex (5/16-18)

$

$

Not available

59

Homelite 06748

DECAL- Stator

$34.99

$

Usually ships in 3-7 days

0
