HRM215 K4 SXA (MZBB) - Honda 21" Walk-Behind Mower, Made in USA (SN: MZBB-6500001 - MZBB-6507200) FAN COVER Parts Diagram

21" Walk-Behind Mower, Made in USA

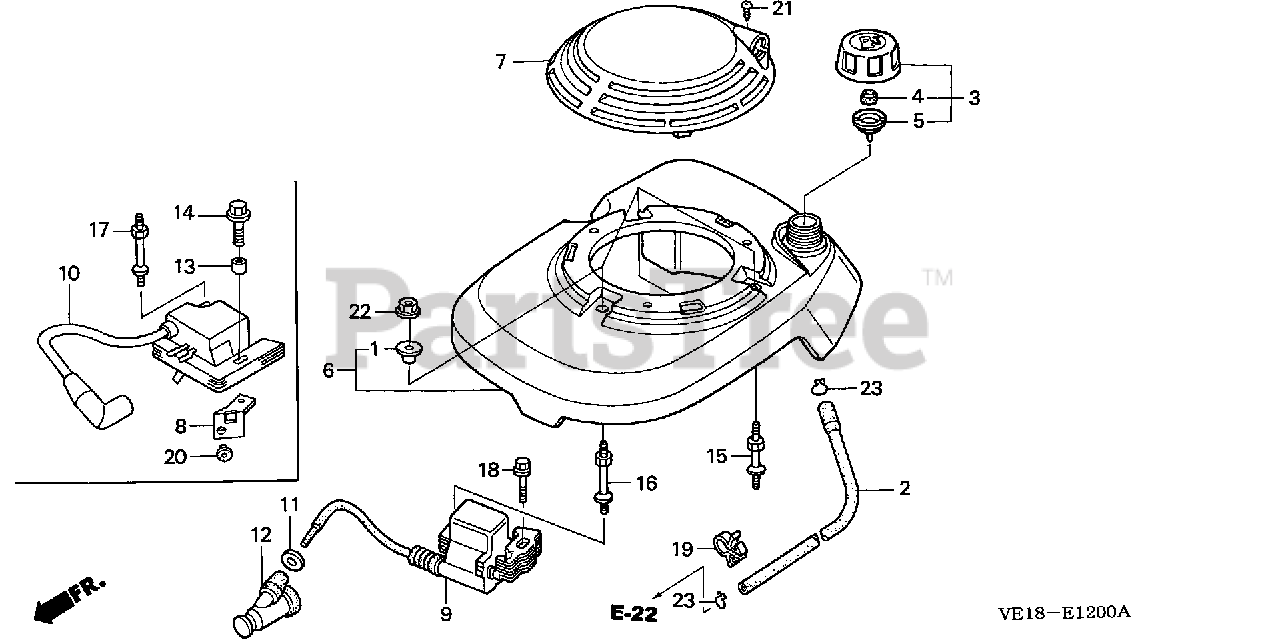

FAN COVER Parts Diagram

  • Title

1

Honda 17216-PE2-003

COLLAR, AIR CLEANER (TOYO ROKI)

$8.49

$

In Stock, only 1 left!

0

2

Honda 17522-ZG9-M10

TUBE, FUEL TANK (135MM)

$6.49

$

In Stock, Qty 8

0

3

Honda 17620-ZG9-000

SEE PART DETAILS - PRI; CAP ASSY., FUEL TANK

$11.99

$

In Stock, only 3 left!

0

4

Honda 17622-888-010

SPONGE, FUEL CAP BREATHER

$1.99

$

In Stock, Qty 5

0

5

Honda 17624-ZE7-000

GASKET, FUEL CAP

$4.99

$

Usually ships in 3-6 days

0

6

Honda 19610-ZG9-M71

COVER, FAN

$

$

Not available

7

Honda 19615-ZG9-M00ZB

HOOD, FAN COVER *R8* (SMOOTH) (BRIGHT RED)

$62.99

$

Usually ships in 3-6 days

0

9

Honda 30500-ZE7-063

SEE PART DETAILS - PRI; COIL ASSY., IGNITION

$85.99

$

In Stock, only 1 left!

0

9

Honda 30500-ZG9-M04

SEE PART DETAILS - SUP; COIL ASSY., IGNITION
(Superseded to 30500-ZE7-063)

$85.99

$

In Stock, only 1 left!

0

11

Honda 30505-ZE6-000

GROMMET, IGNITION WIRE

$2.49

$

Usually ships in 3-6 days

0

12

Honda 30700-ZE6-023

CAP ASSY., NOISE SUPPRESSOR

$22.99

$

In Stock, only 1 left!

0

15

Honda 90041-ZG9-M00

BOLT A, STUD

$4.49

$

Usually ships in 3-6 days

0

16

Honda 90042-ZG9-M00

BOLT B, STUD

$

$

Not available

18

Honda 90121-952-000

BOLT, FLANGE (6X25) (CT200)

$2.99

$

In Stock, Qty 13

0

19

Honda 90682-959-661

CLIP B, CABLE (9MM BLACK)

$3.99

$

In Stock, only 4 left!

0

21

Honda 93913-24580

SCREW, TAPPING (4X20)

$0.99

$

In Stock, Qty 8

0

22

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

23

Honda 95002-02100

CLIP, TUBE (B10)

$2.49

$

In Stock, Qty 16

0
