HRM3000 K1 A (MBFF) - Honda Autonomous Mower, Made in France (SN: MBFF-1000001 - MBFF-9999999) FRAME Parts Diagram

Autonomous Mower, Made in France

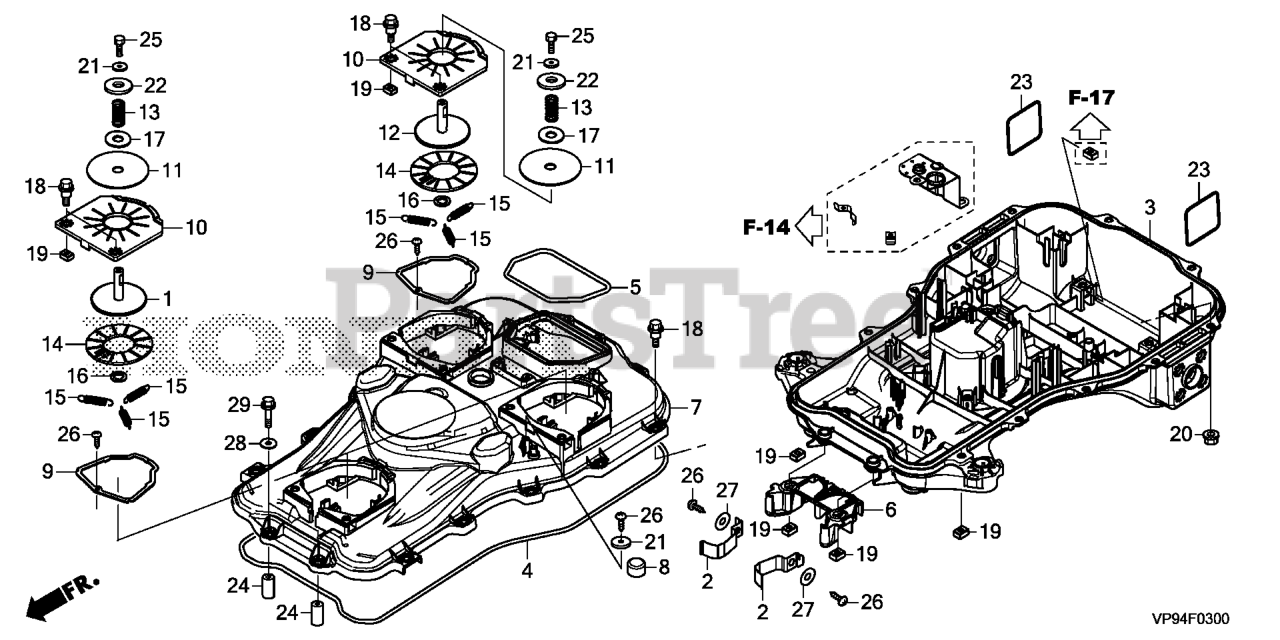

FRAME Parts Diagram

  • Title

1

Honda 31110-VP9-010

MAGNET, OBSTRUCTION

$35.99

$

Usually ships in 3-6 days

0

2

Honda 31584-VP9-020

SOCKET, L. CHARGE

$26.99

$

Usually ships in 3-6 days

0

3

Honda 50101-VP9-000

FRAME (LOWER)

$76.99

$

Usually ships in 3-6 days

0

4

Honda 50103-VP9-000

SEAL A, FRAME

$9.49

$

Usually ships in 3-6 days

0

5

Honda 50104-VP9-000

SEAL B, FRAME

$8.99

$

Usually ships in 3-6 days

0

6

Honda 50105-VP9-000

COVER, SOCKET

$8.49

$

Usually ships in 3-6 days

0

7

Honda 50111-VP9-000

FRAME (UPPER)

$63.99

$

Usually ships in 3-6 days

0

8

Honda 50112-VP9-003

CAP, BREATHER

$5.49

$

Usually ships in 3-6 days

0

9

Honda 50354-VP9-000

PLATE, SPRING

$8.49

$

Usually ships in 3-6 days

0

10

Honda 50356-VP9-010

PLATE, MOUNT

$6.99

$

Usually ships in 3-6 days

0

11

Honda 50357-VP9-000

WASHER, LIFT

$2.49

$

Usually ships in 3-6 days

0

12

Honda 50365-VP9-000

SHAFT B, MOUNT

$28.99

$

Usually ships in 3-6 days

0

13

Honda 63173-VP9-000

SPRING, COVER MAIN

$9.49

$

Usually ships in 3-6 days

0

14

Honda 63202-VP9-010

WASHER, MOUNT

$7.99

$

Usually ships in 3-6 days

0

15

Honda 63203-VP9-000

SPRING, MOUNT

$6.49

$

Usually ships in 3-6 days

0

16

Honda 63204-VP9-000

WASHER, SPRING

$2.49

$

Usually ships in 3-6 days

0

17

Honda 63205-VP7-C50

RUBBER, MOUNT

$3.99

$

Usually ships in 3-6 days

0

18

Honda 90002-Z0D-000

BOLT, FLANGE (6MM)

$3.49

$

In Stock, only 3 left!

0

19

Honda 90301-VP7-000

NUT, SPECIAL (6MM)

$0.99

$

Usually ships in 3-6 days

0

20

Honda 90302-VP7-000

NUT, FLANGE (6MM)

$7.99

$

Usually ships in 3-6 days

0

21

Honda 90502-VP7-000

WASHER, PLAIN (5MM)

$0.99

$

Usually ships in 3-6 days

0

22

Honda 90506-VP9-000

WASHER, PLAIN (12MM)

$23.99

$

Usually ships in 3-6 days

0

23

Honda 91351-VP7-000

O-RING, MOTOR MOUNT

$5.99

$

Usually ships in 3-6 days

0

24

Honda 91557-Z28-300

COLLAR, CARRY GRIP

$2.99

$

Usually ships in 3-6 days

0

25

Honda 92101-05012-0G

BOLT, HEX. (5X12)

$1.49

$

In Stock, only 4 left!

0

26

Honda 93913-14220

SCREW, TAPPING (4X12)

$1.49

$

Usually ships in 3-6 days

0

27

Honda 94103-05800

WASHER, PLAIN (5MM) (Honda Code 0795971).

$1.49

$

Usually ships in 3-6 days

0

28

Honda 94103-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$0.99

$

In Stock, only 2 left!

0

29

Honda 95701-06035-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X35) (Honda Code 2170801).

$2.49

$

In Stock, only 4 left!

0
