HRM3000 K1 A (MBFF) - Honda Autonomous Mower, Made in France (SN: MBFF-1000001 - MBFF-9999999) WORK MOTOR@HEIGHT ADJUST MOTOR Parts Diagram

Autonomous Mower, Made in France

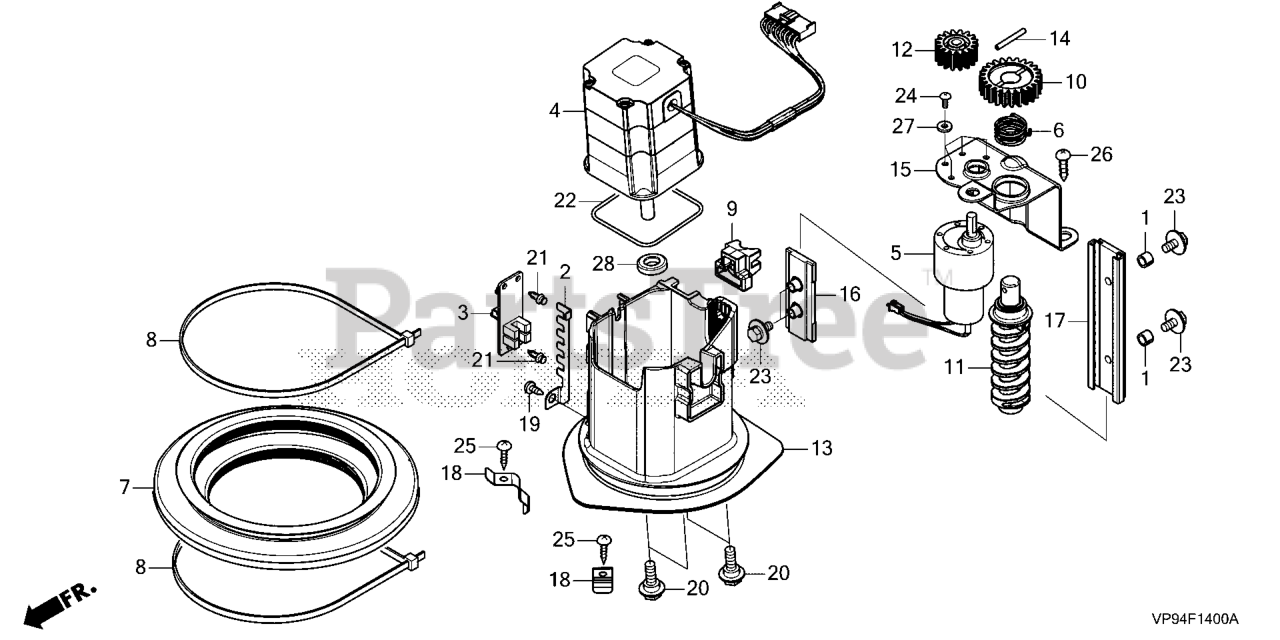

WORK MOTOR@HEIGHT ADJUST MOTOR Parts Diagram

  • Title

1

Honda 16598-ZG1-750

COLLAR, CONTROL COVER

$2.49

$

In Stock, Qty 7

0

2

Honda 35162-VP9-000

PLATE, HEIGHT SENSOR

$3.99

$

Usually ships in 3-6 days

0

3

Honda 35760-VP9-003

SENSOR ASSY., HOUSING POSITION

$40.99

$

Usually ships in 3-6 days

0

4

Honda 36010-VP9-003

MOTOR ASSY., WORK

$443.99

$

Usually ships in 3-6 days

0

5

Honda 36020-VP9-003

MOTOR ASSY., HEIGHT ADJUST

$210.99

$

Usually ships in 3-6 days

0

6

Honda 42668-VP9-000

SPRING, RATCHET RETURN

$38.99

$

Usually ships in 3-6 days

0

7

Honda 50108-VP9-000

BOOT, MOTOR HOUSING

$43.99

$

Usually ships in 3-6 days

0

8

Honda 50109-VP9-003

BAND, BOOT

$3.49

$

Usually ships in 3-6 days

0

9

Honda 73211-VP9-000

GEAR, DRIVEN

$4.49

$

Usually ships in 3-6 days

0

10

Honda 73212-VP9-000

GEAR, MOTOR DRIVEN

$3.99

$

Usually ships in 3-6 days

0

11

Honda 73251-VP9-000

GEAR, DRIVE

$19.99

$

Usually ships in 3-6 days

0

12

Honda 73253-VP9-000

GEAR, MOTOR DRIVE

$3.99

$

Usually ships in 3-6 days

0

13

Honda 76111-VP9-J00

HOUSING, MOTOR

Note: Use from Frame SN 2030333.

$

$

Currently unavailable

13

Honda 76111-VP9-000

HOUSING, MOTOR

Note: Use up to Frame SN 2030332.

$22.99

$

Usually ships in 3-6 days

0

14

Honda 76124-VP9-000

SHAFT, HEIGHT ADJUST

$6.99

$

Usually ships in 3-6 days

0

15

Honda 76415-VP9-000

BRACKET, HEIGHT ADJUST MOTOR

$12.99

$

Usually ships in 3-6 days

0

16

Honda 76423-VP9-003

CARRIAGE, HEIGHT ADJUST

$48.99

$

Usually ships in 3-6 days

0

17

Honda 76427-VP9-003

RAIL, HEIGHT ADJUST

$41.99

$

Usually ships in 3-6 days

0

18

Honda 76428-VP9-000

PLATE, HOUSING TENSION

$44.99

$

Usually ships in 3-6 days

0

19

Honda 90102-SP1-003

SCREW, TAPPING (4X8) (PO) (Honda Code 3674413).

$4.49

$

In Stock, only 3 left!

0

20

Honda 90102-VP7-000

BOLT, SPECIAL (6MM)

$4.99

$

Usually ships in 3-6 days

0

21

Honda 90851-VP9-000

RIVET, PUSH (3.5X7)

$1.49

$

Usually ships in 3-6 days

0

22

Honda 91351-VP9-000

O-RING, MOTOR MOUNT

$7.99

$

Usually ships in 3-6 days

0

23

Honda 93405-05012-08

BOLT-WASHER (5X12)

$2.49

$

Usually ships in 3-6 days

0

24

Honda 93500-03005-0A

SEE PART DETAILS - PRI; SCREW, PAN (3X5)

$1.49

$

Usually ships in 3-6 days

0

25

Honda 93913-14220

SCREW, TAPPING (4X12)

$1.49

$

Usually ships in 3-6 days

0

26

Honda 93913-25410

SCREW, TAPPING (5X16) (PO)

$1.99

$

Usually ships in 3-6 days

0

27

Honda 94101-03800

WASHER, PLAIN (3MM)

$1.49

$

In Stock, only 4 left!

0

28

Honda 06360-VP9-000

OIL SEAL KIT

$

$

Currently unavailable
