HRR216 K5 VKAA (MZCG) - Honda 21" Walk-Behind Mower, Made in USA (SN: MZCG-7800001 - MZCG-7999999) HANDLEBAR Parts Diagram

21" Walk-Behind Mower, Made in USA

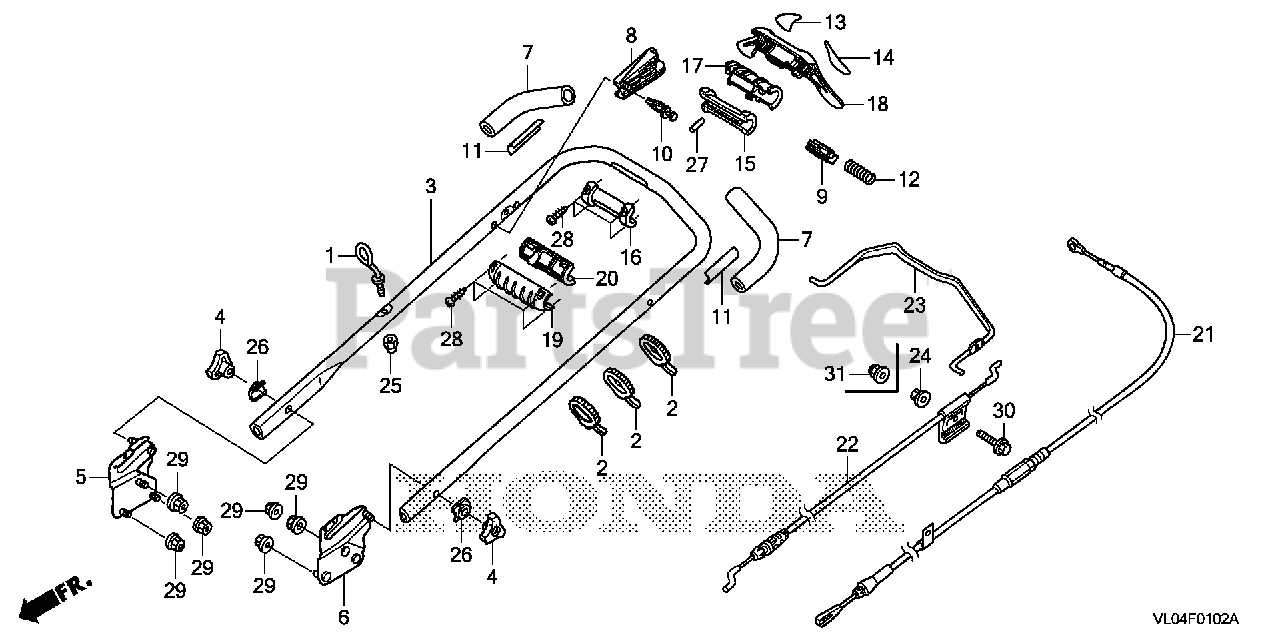

HANDLEBAR Parts Diagram

  • Title

1

Honda 28475-VE1-T00

GUIDE, ROPE

$5.99

$

Usually ships in 3-6 days

0

2

Honda 32901-VB5-A00

TIE, CABLE (157.5MM)

$0.99

$

In Stock, Qty 13

0

3

Honda 53111-VL0-L00ZA

PIPE, HANDLE *NH105* (MAT BLACK)

$58.99

$

Usually ships in 3-6 days

0

4

Honda 53125-VG3-000

GRIP, HANDLE JOINT

$9.49

$

In Stock, Qty 6

0

5

Honda 53130-VL0-L00

STAY, R. HANDLE

$10.99

$

In Stock, only 1 left!

0

6

Honda 53135-VL0-L00

STAY, L. HANDLE

$10.99

$

Usually ships in 3-6 days

0

7

Honda 53165-VL0-C00

GRIP, HANDLE

$3.49

$

Usually ships in 3-6 days

0

8

Honda 54315-VH7-K00

STOPPER, LEVER

$1.49

$

In Stock, Qty 9

0

9

Honda 54315-VH7-L00

LEVER, SELECT

$2.49

$

In Stock, Qty 6

0

10

Honda 54316-VH7-K00

PIN, LOCK

$0.99

$

In Stock, only 3 left!

0

11

Honda 54322-VL0-B00

HOLD, GRIP

$0.99

$

In Stock, only 4 left!

0

12

Honda 54411-VH7-L00

SPRING, SELECT LEVER

$0.99

$

Usually ships in 3-6 days

0

13

Honda 54421-VL0-L00

GRIP, R. PAD

$10.99

$

In Stock, only 3 left!

0

14

Honda 54426-VL0-L00

GRIP, L. PAD

$17.99

$

In Stock, Qty 7

0

15

Honda 54434-VL0-B00

BRACKET, GRIP (UPPER)

$6.99

$

In Stock, Qty 5

0

16

Honda 54437-VL0-B00

BRACKET, GRIP (LOWER)

$3.49

$

In Stock, Qty 20+

0

17

Honda 54442-VH7-L00

COVER, BRACKET (UPPER)

$2.49

$

In Stock, Qty 5

0

18

Honda 54443-VH7-L00

GRIP, CLUTCH (UPPER)

$7.99

$

In Stock, Qty 12

0

19

Honda 54446-VH7-L00

GRIP, CLUTCH (LOWER)

$4.99

$

In Stock, Qty 20+

0

20

Honda 54447-VH7-L00

COVER, BRACKET (LOWER)

$2.99

$

In Stock, Qty 5

0

21

Honda 54510-VH7-L00

CABLE, CLUTCH

$44.99

$

In Stock, only 2 left!

0

22

Honda 54530-VH7-K00

CABLE, BRAKE

$18.99

$

In Stock, only 2 left!

0

23

Honda 75191-VH7-K00ZA

LEVER, BRAKE *NH105* (MAT BLACK)

$15.99

$

Usually ships in 3-6 days

0

25

Honda 90303-VG3-000

NUT, NYLON LOCK (6MM)

$0.99

$

In Stock, Qty 20+

0

26

Honda 90501-898-000

WASHER, FRAME JOINT

$3.49

$

In Stock, Qty 8

0

27

Honda 91151-VL0-B00

ROLLER (5X37)
(Superseded to 91151-VH7-H50)

$0.99

$

In Stock, Qty 16

0

28

Honda 93911-14280

SCREW, TAPPING (4X12)

$0.99

$

In Stock, Qty 10

0

29

Honda 94050-08080

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0

30

Honda 95701-06045-07

BOLT, FLANGE (6X45)

$3.49

$

In Stock, Qty 6

0

31

Honda 90303-V10-000

NUT, NYLON LOCK (6MM)

$0.99

$

In Stock, Qty 9

0
