HRS21 SA (VA2) - Honda 21" Walk-Behind Mower, Made in Japan (SN: VA2-1000001 - VA2-6000000) REAR WHEEL (S TYPE) Parts Diagram

21" Walk-Behind Mower, Made in Japan

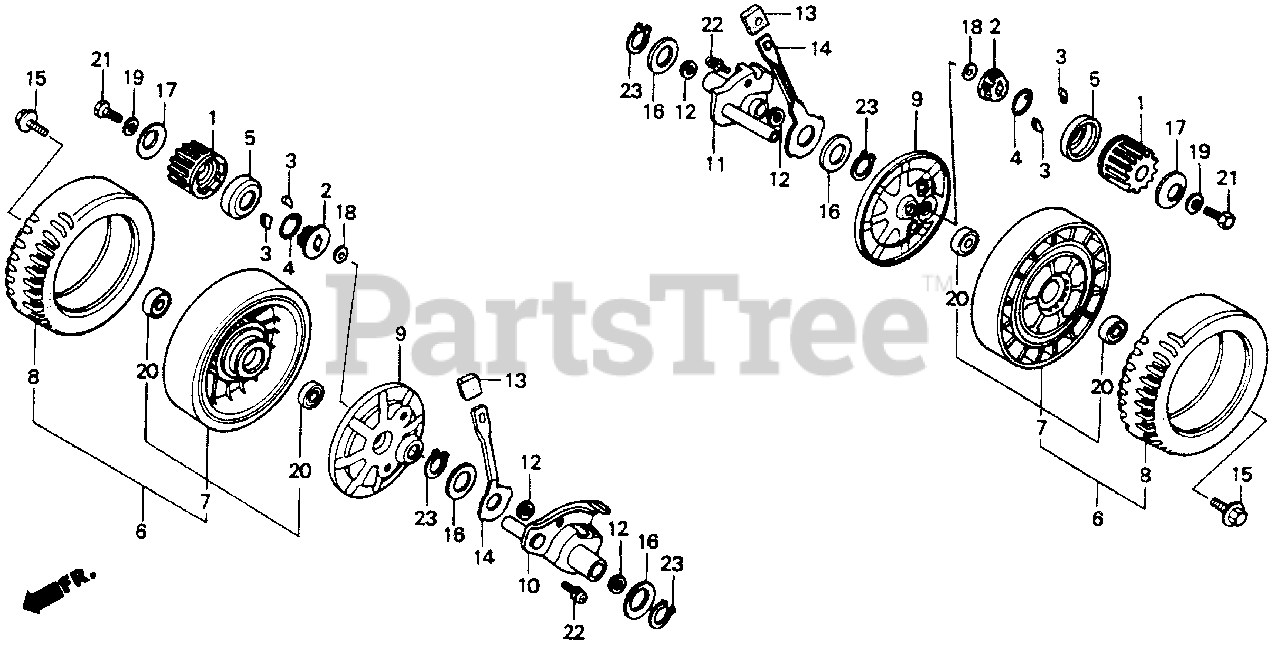

REAR WHEEL (S TYPE) Parts Diagram

  • Title

1

Honda 23510-VA2-700

GEAR, PINION

$

$

Not available

2

Honda 23512-952-771

HOLDER, RATCHET

$

$

Not available

3

Honda 23513-952-770

RATCHET

$7.49

$

Usually ships in 3-6 days

0

4

Honda 23514-960-770

SPRING, RATCHET RETURN

$3.99

$

In Stock, only 2 left!

0

5

Honda 23515-960-770

CAP, PINION GEAR

$

$

Not available

6

Honda 42810-VA2-701

SEE PART DETAILS - SUP; WHEEL, RR.
(Superseded to 42810-VA2-703)

Note: Use up to Frame SN 1072629.

$64.99

$

Usually ships in 3-6 days

0

6

Honda 42810-VA2-703

SEE PART DETAILS - PRI; WHEEL, RR.

$64.99

$

Usually ships in 3-6 days

0

7

Honda 42812-VA2-701

SEE PART DETAILS - SUP; HUB, WHEEL
(Superseded to 42812-VA2-703)

Note: Use up to Frame SN 1072629.

$

$

Not available

7

Honda 42812-VA2-702

HUB, WHEEL
(Superseded to 42812-VA2-703)

Note: Use from Frame SN 1072630.

$

$

Not available

8

Honda 42751-VA3-J00

SEE PART DETAILS - PRI; TIRE (8 INCH)

$29.99

$

Usually ships in 3-6 days

0

9

Honda 42865-VA2-700

COVER, WHEEL (NOT AVAILABLE)

$

$

Not available

10

Honda 42930-VA2-700

ARM, R. RR. ADJUSTING (NOT AVAILABLE)

$

$

Not available

11

Honda 42940-VA2-700

ARM, L. RR. ADJUSTING (NOT AVAILABLE)

$

$

Not available

12

Honda 42944-VA2-702

DUST SEAL (12MM)

$4.49

$

In Stock, only 2 left!

0

13

Honda 42952-952-000

GRIP, ADJUSTER

$4.99

$

In Stock, only 4 left!

0

14

Honda 42961-VA2-700

PLATE, RR. ADJUSTING (NOT AVAILABLE)

$11.99

$

Usually ships in 3-6 days

0

15

Honda 90110-VA4-000

BOLT, WHEEL

$3.99

$

In Stock, Qty 14

0

16

Honda 90403-952-770

WASHER, PLAIN (22MM)

$2.99

$

In Stock, only 2 left!

0

17

Honda 90452-708-000

WASHER (12MM)

$1.49

$

Usually ships in 3-6 days

0

19

Honda 90486-028-000

WASHER, SPARK ADVANCER SETTING

$2.99

$

Usually ships in 3-6 days

0

20

Honda 91055-VA2-700

BEARING, RADIAL BALL

$11.99

$

In Stock, only 1 left!

0

21

Honda 92101-06012

BOLT, HEX. (6X12)
(Superseded to 92101-06012-0A)

$1.99

$

Usually ships in 3-6 days

0

21

Honda 92101-06012-0A

BOLT, HEX. (6X12)

$1.99

$

Usually ships in 3-6 days

0

22

Honda 93892-04014-08

SCREW-WASHER (4X14)

$1.49

$

In Stock, only 2 left!

0

23

Honda 94511-22000

CIRCLIP (OUTER) (22MM)

$1.99

$

In Stock, Qty 20+

0
