HRS21 SVA (VA2) - Honda 21" Walk-Behind Mower, Made in Japan (SN: VA2-1000001 - VA2-6000000) CAMSHAFT Parts Diagram

21" Walk-Behind Mower, Made in Japan

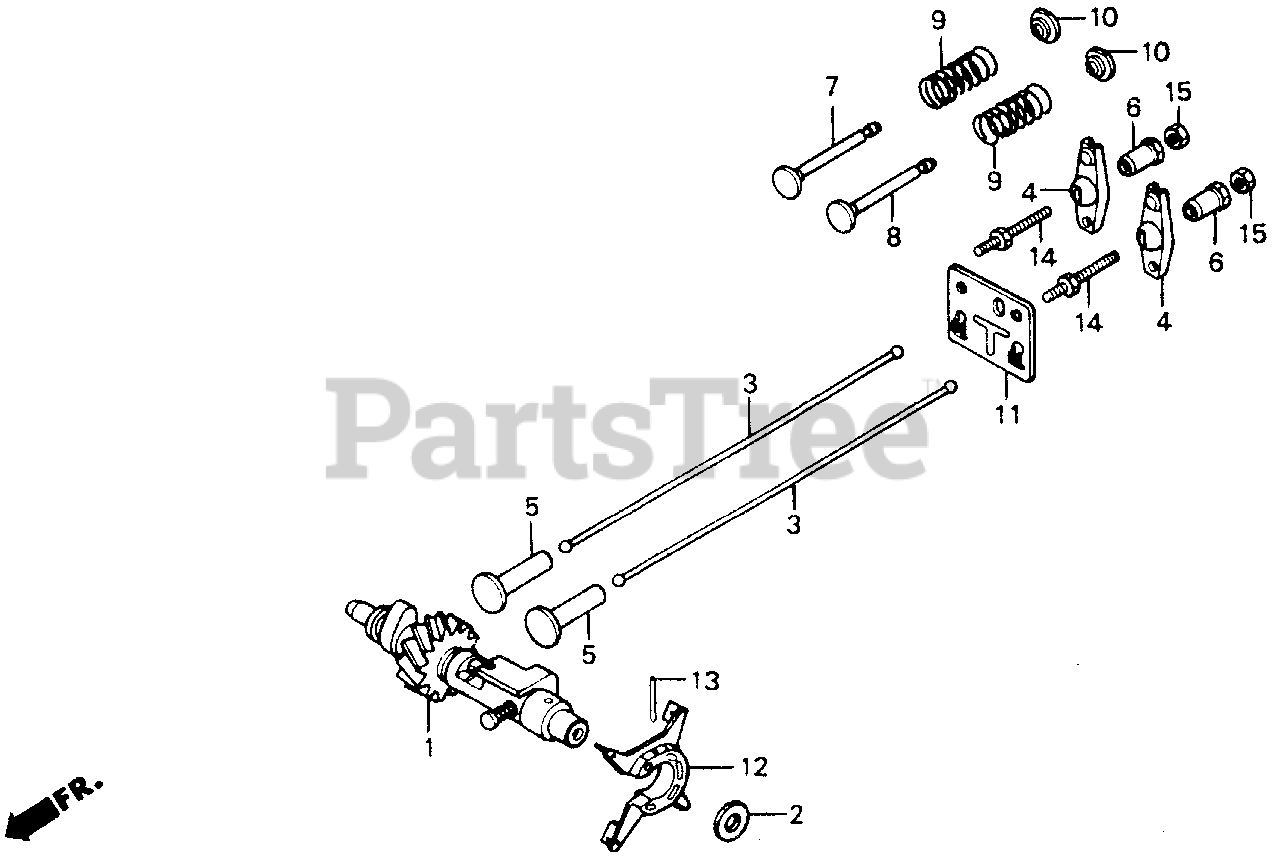

CAMSHAFT Parts Diagram

  • Title

1

Honda 14100-ZE5-000

CAMSHAFT ASSY.

$

$

Not available

2

Honda 14113-ZE5-000

WASHER, CAMSHAFT SIDE

$

$

Not available

3

Honda 14410-ZE5-000

ROD, PUSH

$8.49

$

Usually ships in 3-6 days

0

4

Honda 14431-ZE1-000

ARM, VALVE ROCKER

$8.49

$

Usually ships in 3-6 days

0

5

Honda 14441-ZE5-000

LIFTER, VALVE (NOT AVAILABLE)

$

$

Not available

6

Honda 14451-ZE1-013

PIVOT, ROCKER ARM
(Superseded to 14451-Z4M-000)

$7.49

$

In Stock, Qty 7

0

7

Honda 14711-ZE5-000

VALVE, IN. (NOT AVAILABLE)

$

$

Not available

8

Honda 14721-ZE5-000

VALVE, EX.

$39.99

$

Usually ships in 3-6 days

0

9

Honda 14751-ZE5-000

SPRING, VALVE

$3.49

$

Usually ships in 3-6 days

0

10

Honda 14771-ZE1-000

RETAINER, IN. VALVE SPRING
(Superseded to 14771-Z0T-900)

$1.49

$

In Stock, Qty 5

0

11

Honda 14791-ZE5-000

PLATE, PUSH ROD GUIDE

Note: Use up to Engine SN 1012207.

$

$

Not available

11

Honda 14791-ZE5-010

PLATE, PUSH ROD GUIDE

Note: Use from Engine SN 1012208.

$

$

Not available

12

Honda 15331-ZE5-000

SLINGER, OIL

$

$

Not available

13

Honda 15333-ZE5-000

PIN, OIL SLINGER

$3.49

$

Usually ships in 3-6 days

0

14

Honda 90012-ZE0-010

BOLT, PIVOT (8MM)

$9.49

$

Usually ships in 3-6 days

0

15

Honda 90206-ZE1-000

NUT, PIVOT ADJUSTING

$4.99

$

In Stock, Qty 6

0
