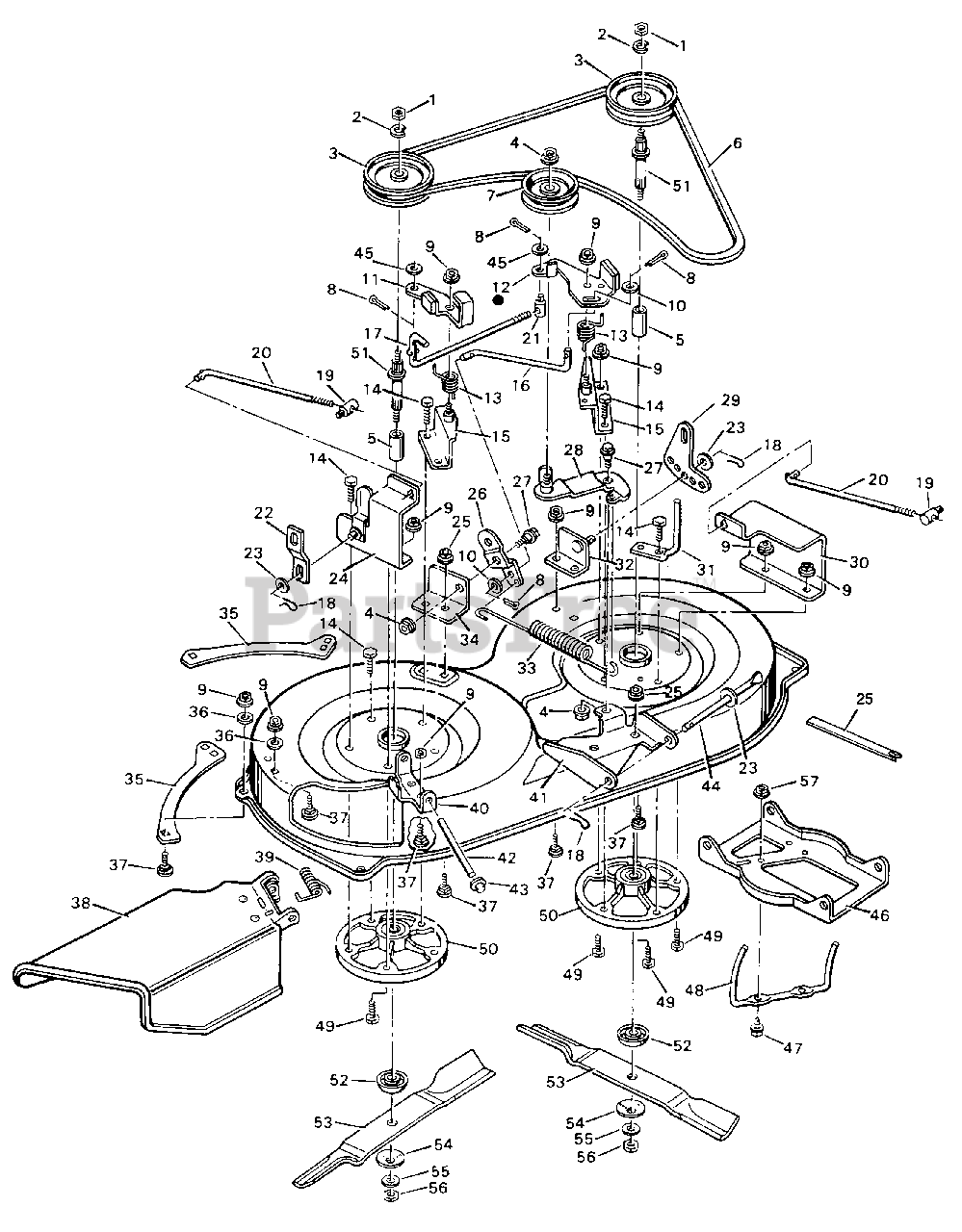

HRT 1240 G (UT-33024) - Homelite Tractor Mower Parts Diagram

Tractor

Mower Parts Diagram

  • Title

1

Homelite JA995045

NUT- Centerlock

$5.49

$

Usually ships in 3-7 days

0

2

Homelite 0354672

WASHER- Lock

$

$

Currently unavailable

3

Homelite JA994942

PULLEY- Jackshaft

$

$

Currently unavailable

4

Homelite 0354673

NUT- Lock (flange)

$

$

Currently unavailable

5

Homelite JA994934

SPACER

$

$

Currently unavailable

6

Homelite 0354674

BELT- Blade drive

$

$

Currently unavailable

7

Homelite 0354675

PULLEY- Idler

$

$

Currently unavailable

8

Homelite JA460014

PIN- Cotter

$

$

Not available

9

Homelite JA445775

NUT- Lock (flange)
(Superseded to UP06674)

$

$

Not available

10

Homelite 84065

WASHER
(Superseded to UP04241)

$

$

Not available

11

Homelite 0354676

BRAKE ASSEMBLY (Right)

$

$

Currently unavailable

12

Homelite 0354677

BRAKE ASSEMBLY (Left)

$

$

Currently unavailable

13

Homelite 0354678

SPRING- Torsion

$

$

Currently unavailable

14

Homelite JA409915

BOLT- Hex

$

$

Currently unavailable

15

Homelite 0354679

BRAKE BRACKET ASSEMBLY

$

$

Currently unavailable

16

Homelite 0354680

BRAKE ROD

$

$

Currently unavailable

17

Homelite 0354681

ROD- Cross link

$

$

Currently unavailable

18

Homelite JA460312

PIN- Hair

$

$

Not available

19

Homelite 0354682

NUT- Adjustable

$

$

Currently unavailable

20

Homelite 0354683

ROD- Adjuster

$

$

Currently unavailable

21

Homelite 0354543

NUT- Adjustable

$

$

Currently unavailable

22

Homelite 0354685

LINK- Suspension

$

$

Currently unavailable

23

Homelite JA453017

WASHER

$

$

Not available

24

Homelite 0354686

RIGHT LIFTER BRACKET ASSY.

$

$

Currently unavailable

25

Homelite 0354922

INDICATOR- Plastic

$

$

Currently unavailable

26

Homelite 0354687

BRACKET- Pivot

$

$

Currently unavailable

27

Homelite 0354542

BOLT- Carriage

$

$

Currently unavailable

28

Homelite 0354688

IDLER ARM ASSEMBLY

$

$

Currently unavailable

29

Homelite 0354689

PLATE- Adjuster

$

$

Currently unavailable

30

Homelite 0354690

COVER- Pulley

$

$

Currently unavailable

31

Homelite 0354691

GUIDE- Belt

$

$

Currently unavailable

32

Homelite 0354692

LEFT LIFTER BRACKET ASSY.

$

$

Currently unavailable

33

Homelite 0354693

SPRING- Extension

$

$

Currently unavailable

34

Homelite 0354694

BRACKET- Pivot

$

$

Currently unavailable

35

Homelite JA990007

PLATE

$

$

Currently unavailable

36

Homelite JA453011

WASHER
(Superseded to PS84010)

$

$

Not available

37

Homelite JA441602

BOLT- Carriage

$2.99

$

Usually ships in 3-7 days

0

38

Homelite JA994939

CHUTE DEFLECTOR ASSEMBLY

$

$

Currently unavailable

39

Homelite JA994932

SPRING- Torsion

$

$

Currently unavailable

40

Homelite JA990006

BRACKET- Hinge

$

$

Currently unavailable

41

Homelite 0354695

BRACKET- Front hanger

$

$

Currently unavailable

42

Homelite JA994930

ROD- Deflector

$

$

Currently unavailable

43

Homelite JA994935

CAP- Push on

$

$

Currently unavailable

44

Homelite 0354696

ROD- Hanger

$

$

Currently unavailable

45

Homelite 0354621

WASHER

$

$

Currently unavailable

46

Homelite 0354698

HANGER- Front

$

$

Currently unavailable

47

Homelite 0354699

SCREW

$

$

Currently unavailable

48

Homelite 0354920

GUIDE- Belt

$

$

Not available

49

Homelite JA400188

BOLT- Hex
(Superseded to 80085)

$1.49

$

Usually ships in 3-7 days

0

50

Homelite JA994941

HOUSING- Spindle

$

$

Currently unavailable

51

Homelite JA994931

SPINDLE

$

$

Currently unavailable

52

Homelite JA994933

ADAPTER- Blade

$

$

Currently unavailable

53

Homelite 0354921

BLADE

Note: (2 required)

$

$

Currently unavailable

54

Homelite JA994927

WASHER- Belleville

$

$

Not available

55

Homelite JA994928

WASHER

$

$

Currently unavailable

56

Homelite JA995046

NUT- Hex

$

$

Currently unavailable

57

Homelite JA445768

NUT- Hex

$

$

Not available
