HRT 1240 G (UT-33024) - Homelite Tractor Steering Parts Diagram

Tractor

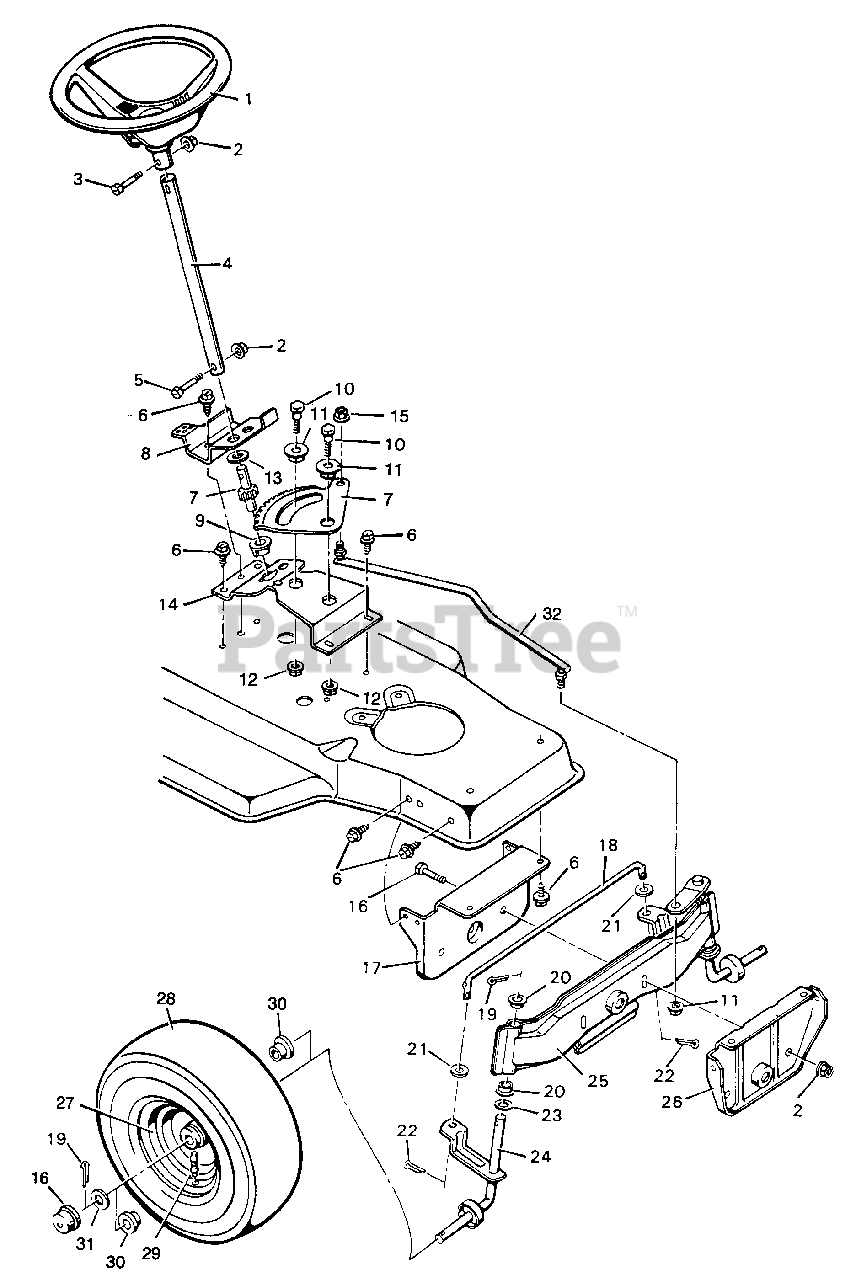

Steering Parts Diagram

  • Title

1

Homelite 0354583

WHEEL- Steering

$

$

Currently unavailable

2

Homelite 0354584

NUT- Hex

$

$

Currently unavailable

3

Homelite 0354585

BOLT- Hex

$

$

Currently unavailable

4

Homelite 0354586

POST- Steering

$

$

Currently unavailable

5

Homelite 0354587

BOLT- Hex

$

$

Currently unavailable

6

Homelite 0354520

SCREW

$

$

Currently unavailable

7

Homelite 0354589

GEAR- Sector & Pinion

$

$

Currently unavailable

8

Homelite 0354588

BRACKET- Sector

$

$

Currently unavailable

9

Homelite 0354590

BEARING

$

$

Currently unavailable

10

Homelite JA400188

BOLT- Hex
(Superseded to 80085)

$1.49

$

Usually ships in 3-7 days

0

11

Homelite 0354609

BEARING

$

$

Currently unavailable

12

Homelite 0354610

NUT- Lock (flange)

$

$

Currently unavailable

13

Homelite 0354611

WASHER

$

$

Currently unavailable

14

Homelite 0354593

BRACKET- Sector

$

$

Currently unavailable

15

Homelite 0354548

NUT- Lock (flange)

$

$

Currently unavailable

16

Homelite 0354595

BOLT- Hex

$

$

Currently unavailable

17

Homelite 0354596

SUPPORT- Axle (rear)

$

$

Currently unavailable

18

Homelite 0354597

ROD- Tie

$

$

Currently unavailable

19

Homelite JA460030

PIN- Cotter

$

$

Not available

20

Homelite 0354598

BEARING

$

$

Currently unavailable

21

Homelite JA453011

WASHER
(Superseded to PS84010)

$

$

Not available

22

Homelite JA460014

PIN- Cotter

$

$

Not available

23

Homelite 0354599

WASHER

$

$

Currently unavailable

24

Homelite 0354601

SPINDLE ASSEMBLY (Right)

$

$

Currently unavailable

25

Homelite 0354602

SPINDLE ASSEMBLY- Axle & Left

$

$

Currently unavailable

26

Homelite 0354603

SUPPORT- Front axle

$

$

Currently unavailable

27

Homelite 0354608

WHEEL & TIRE ASSEMBLY

Note: When ordering a tire, make sure to give the brand of the tire so that the tread pattern on the tire will match.

$

$

Currently unavailable

28

Homelite 0354604

TIRE

$

$

Currently unavailable

Homelite 0354605

TUBE

$

$

Currently unavailable

29

Homelite 0354606

STEM-Valve

$

$

Currently unavailable

30

Homelite 0354607

BEARING- Wheel

$

$

Currently unavailable

31

Homelite 0354581

WASHER

$

$

Currently unavailable

32

Homelite 0354594

LINK- Drag

$

$

Currently unavailable
