HRX217 K3 VKAA (MAGA) - Honda 21" Walk-Behind Mower, Made in USA (SN: MAGA-2020001 - MAGA-2199999) TRANSMISSION Parts Diagram

21" Walk-Behind Mower, Made in USA

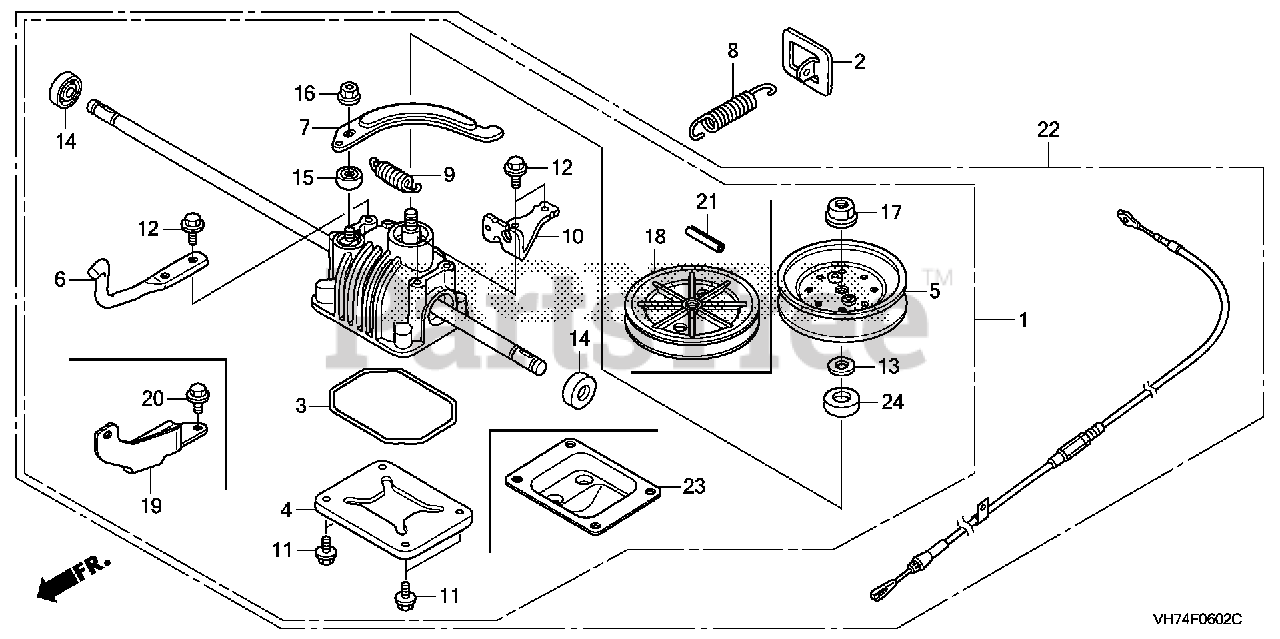

TRANSMISSION Parts Diagram

  • Title

1

Honda 20001-VL0-M00

SEE PART DETAILS - PRI; TRANSMISSION ASSY.

Note: Use from Frame SN 1529195.

$229.99

$

Usually ships in 3-6 days

0

2

Honda 21557-VE2-800

PLATE, TENSION SPRING

$24.99

$

In Stock, only 2 left!

0

3

Honda 21581-VL0-B00

O-RING, CASE

Note: Use up to Frame SN 1675703.

$1.99

$

In Stock, only 4 left!

0

3

Honda 21581-VL0-M00

O-RING, CASE

Note: Use from Frame SN 1675704.

$9.99

$

In Stock, Qty 10

0

4

Honda 21611-VL0-B00

COVER, REDUCTION

Note: Use up to Frame SN 1675703.

$3.99

$

Usually ships in 3-6 days

0

7

Honda 22533-VH7-L00

ARM, CONTROL

Note: Use up to Frame SN 1675703.

$57.99

$

In Stock, only 1 left!

0

7

Honda 22533-VL0-M00

ARM, CONTROL

Note: Use from Frame SN 1675704.

$9.99

$

In Stock, only 3 left!

0

8

Honda 24468-VE1-T00

SPRING, WHEEL TENSION

$76.99

$

Usually ships in 3-6 days

0

9

Honda 43151-VL0-B00

SPRING, RETURN

$5.49

$

Usually ships in 3-6 days

0

10

Honda 51125-VL0-B00

HOLDER, WIRE

Note: Use up to Frame SN 1675703.

$9.99

$

Usually ships in 3-6 days

0

10

Honda 51125-VL0-M00

HOLDER, WIRE

Note: Use from Frame SN 1675704.

$15.99

$

In Stock, only 1 left!

0

11

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$2.49

$

In Stock, Qty 20+

0

12

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$2.49

$

In Stock, Qty 20+

0

14

Honda 91251-VL0-B00

OIL SEAL (12.7X28.6X6.4)

Note: Use up to Frame SN 1675703.

$4.99

$

In Stock, Qty 7

0

14

Honda 91251-VL0-M00

OIL SEAL (12.7X22.2X6.4)

Note: Use from Frame SN 1675704.

$32.99

$

In Stock, only 4 left!

0

15

Honda 91252-VL0-B00

OIL SEAL (10X19X7)

$1.99

$

In Stock, only 3 left!

0

16

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

18

Honda 22421-VH7-L00

PULLEY, DRIVEN

$12.99

$

In Stock, only 2 left!

0

19

Honda 22521-VL0-B01

ARM, TENSIONER

Note: Use up to Frame SN 1675703.

$4.49

$

Usually ships in 3-6 days

0

19

Honda 22521-VL0-M00

ARM, TENSIONER

Note: Use from Frame SN 1675704.

$35.99

$

In Stock, only 3 left!

0

20

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$2.49

$

In Stock, Qty 20+

0

21

Honda 90752-VH7-L00

PIN, SPRING (5X36)

$0.99

$

Usually ships in 3-6 days

0

22

Honda 06200-VH7-305

TRANSMISSION KIT

Note: Use up to Frame SN 1529194.

$285.99

$

In Stock, only 2 left!

0

23

Honda 21611-VL0-M00

COVER, REDUCTION

Note: Use from Frame SN 1675704.

$5.49

$

Usually ships in 3-6 days

0

24

Honda 91251-VL0-B00

OIL SEAL (12.7X28.6X6.4)

$4.99

$

In Stock, Qty 7

0
