HRX217 K4 VLAA (MAGA) - Honda 21" Walk-Behind Mower, Made in USA (SN: MAGA-1900001 - MAGA-2369999) BATTERY + MAIN HARNESS Parts Diagram

21" Walk-Behind Mower, Made in USA

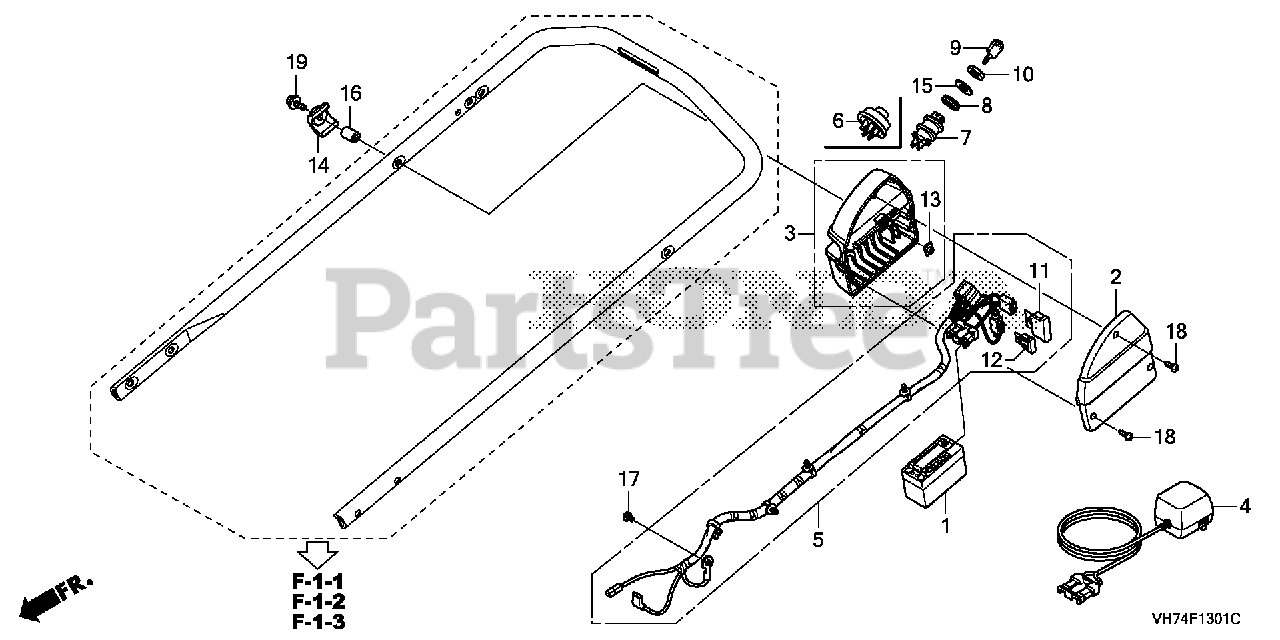

BATTERY + MAIN HARNESS Parts Diagram

  • Title

1

Honda 06315-VL0-W10

SEE PART DETAILS - PRI; BATTERY KIT (MSDS)
(Superseded to 06315-VL0-W11)

$60.99

$

In Stock, only 2 left!

0

1

Honda 31500-VL0-W01

SEE PART DETAILS - SUP; BATTERY ASSY. (MSDS)
(Superseded to 06315-VL0-W11)

$60.99

$

In Stock, only 2 left!

0

1

Honda 31500-VL0-W11

SEE PART DETAILS - SUP; BATTERY KIT (MSDS)
(Superseded to 06315-VL0-W10)

$

$

Not available

2

Honda 31513-VL0-W00

COVER, BATTERY

$5.99

$

Usually ships in 3-6 days

0

3

Honda 31550-VL0-W00

BOX, BATTERY

$29.99

$

Usually ships in 3-6 days

0

4

Honda 31570-VL0-W01

CHARGER ASSY., BATTERY (120V-AC/60HZ)

Note: (Optional).

$

$

Not available

5

Honda 32100-VH7-V00

HARNESS ASSY., MAIN

$50.99

$

In Stock, only 1 left!

0

7

Honda 35100-VL0-W01

SWITCH ASSY., MOMENT

$32.99

$

In Stock, only 2 left!

0

8

Honda 35102-VL0-W00

BASE, MOMENT SWITCH

$13.99

$

Usually ships in 3-6 days

0

9

Honda 35111-VL0-W01

KEY

$5.99

$

In Stock, Qty 6

0

10

Honda 35114-VL0-W00

NUT, SWITCH

$0.99

$

In Stock, Qty 6

0

11

Honda 38201-VH7-B00

FUSE A

$0.99

$

In Stock, Qty 7

0

12

Honda 38206-V15-003

FUSE, BLADE (3A)

$2.99

$

In Stock, only 2 left!

0

13

Honda 61304-958-003

NUT, SPECIAL (6X7)

$4.99

$

In Stock, only 3 left!

0

14

Honda 90501-V25-000

WASHER, FRAME JOINT

$0.99

$

In Stock, Qty 11

0

15

Honda 90501-VL0-W00

WASHER, SWITCH

$0.99

$

In Stock, Qty 7

0

16

Honda 91559-VH7-B00

COLLAR, BATTERY MOUNTING

$2.99

$

In Stock, only 4 left!

0

17

Honda 93500-05008-0A

SCREW, PAN (5X8)

$1.49

$

In Stock, Qty 5

0

18

Honda 93911-14480

SCREW, TAPPING (4X16)

$1.49

$

In Stock, Qty 16

0

19

Honda 95701-06035-07

BOLT, FLANGE (6X35)

$2.99

$

In Stock, only 1 left!

0
