HRZ216 TDAA (MAFA) - Honda 21" Walk-Behind Mower, Made in USA (SN: MAFA-1000001 - MAFA-1099999) FRONT WHEEL Parts Diagram

21" Walk-Behind Mower, Made in USA

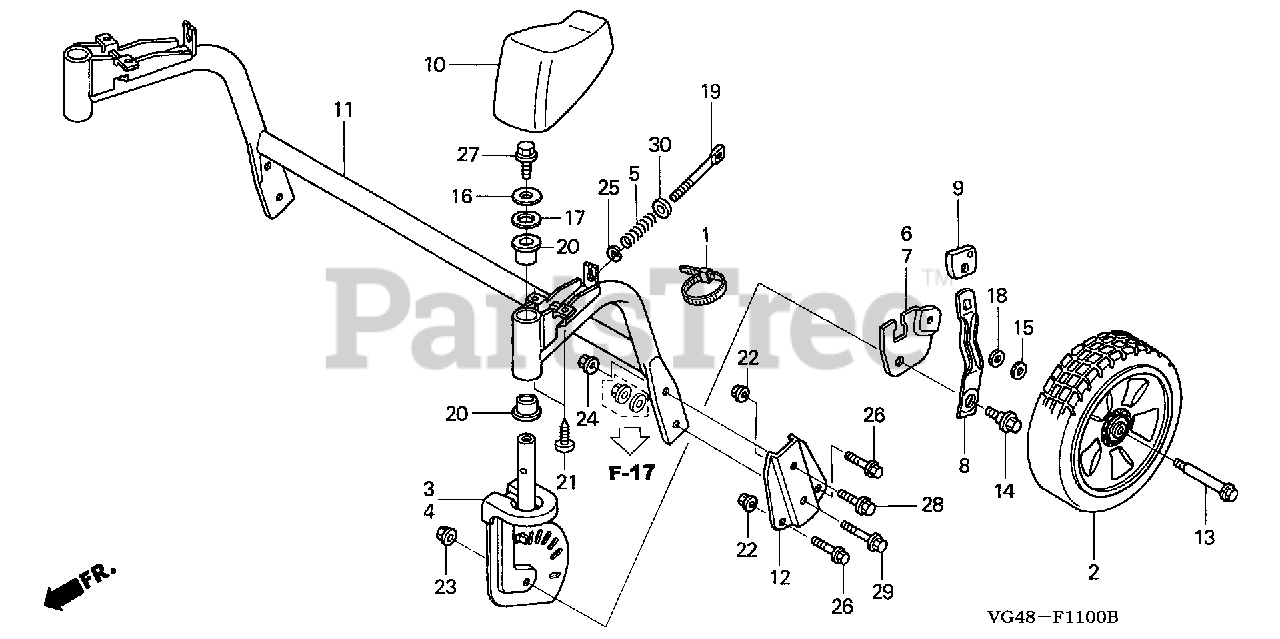

FRONT WHEEL Parts Diagram

  • Title

1

Honda 32901-VB5-A00

TIE, CABLE (157.5MM)

$0.99

$

In Stock, Qty 20+

0

2

Honda 42710-VG3-000

WHEEL, RR.
(Superseded to 42710-VG3-010)

$13.99

$

In Stock, only 3 left!

0

3

Honda 42725-VG4-T00ZA

SEE PART DETAILS - PRI; CASTER, R. FR. *NH190M* (VINTAGE GRAY METALLIC)

$79.99

$

Usually ships in 3-6 days

0

4

Honda 42735-VG4-T00ZA

CASTER, L. FR. *NH190M* (VINTAGE GRAY METALLIC)

$79.99

$

Usually ships in 3-6 days

0

5

Honda 42739-VG4-T00

SPRING, CASTER LOCK

$1.99

$

Usually ships in 3-6 days

0

6

Honda 42911-VG3-000

ARM, R. FR. ADJUSTING

$3.99

$

In Stock, only 4 left!

0

7

Honda 42921-VG3-000

ARM, L. FR. ADJUSTING

$3.99

$

In Stock, only 4 left!

0

8

Honda 42951-VG3-000

PLATE, FR. ADJUSTER

$1.99

$

In Stock, Qty 20+

0

9

Honda 42952-VG3-000

GRIP, ADJUSTER
(Superseded to 42952-VG3-000ZA)

$0.99

$

In Stock, Qty 20+

0

10

Honda 44314-VG4-T00

COVER, FR. WHEEL PIPE

$5.49

$

In Stock, only 2 left!

0

11

Honda 44315-VG4-T00ZA

PIPE, FR. WHEEL *NH190M* (VINTAGE GRAY METALLIC)

$90.99

$

Usually ships in 3-6 days

0

12

Honda 44318-VG4-T00ZA

BRACKET, FR. WHEEL PIPE *NH190M* (VINTAGE GRAY METALLIC)

$7.49

$

Usually ships in 3-6 days

0

13

Honda 90101-VG4-T00

BOLT, FR. WHEEL SHAFT

$1.99

$

Usually ships in 3-6 days

0

14

Honda 90102-VG4-T00

BOLT, ADJUSTER ARM

$1.99

$

Usually ships in 3-6 days

0

15

Honda 90455-VA2-000

WASHER, WHEEL

$4.49

$

In Stock, Qty 20+

0

16

Honda 90471-SB0-000

WASHER, PLAIN (8MM)

$8.99

$

Usually ships in 3-6 days

0

17

Honda 90501-VG4-T00

WASHER, CASTER

$0.99

$

Usually ships in 3-6 days

0

18

Honda 90505-VG3-000

WASHER, THRUST (13X27X1)

$0.99

$

In Stock, Qty 20+

0

19

Honda 90751-VG4-T00

PIN, LOCK

$

$

Not available

20

Honda 91552-VG4-T00

BUSH, CASTER

$3.49

$

Usually ships in 3-6 days

0

21

Honda 93901-35210

SCREW, TAPPING (5X12)

$0.99

$

In Stock, Qty 10

0

22

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

23

Honda 94050-08000

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0

24

Honda 94050-08070

NUT, FLANGE (8MM)

$1.99

$

In Stock, only 1 left!

0

25

Honda 94540-05010

E-RING (5MM)

$2.49

$

In Stock, only 3 left!

0

26

Honda 95701-06014-07

BOLT, FLANGE (6X14)

$1.99

$

Usually ships in 3-6 days

0

27

Honda 95701-08016-00

BOLT, FLANGE (8X16)

$2.49

$

In Stock, Qty 20+

0

28

Honda 95701-08016-07

BOLT, FLANGE (8X16)

$2.49

$

In Stock, Qty 5

0

29

Honda 95701-08025-07

BOLT, FLANGE (8X25)

$1.49

$

Usually ships in 3-6 days

0

30

Honda 90502-VG4-T00

WASHER, PLAIN (3/16)

$0.99

$

Usually ships in 3-6 days

0
