HS 1100 - Husqvarna Tow-Behind Sweeper (1997-04) Handle Parts Diagram

Tow-Behind Sweeper

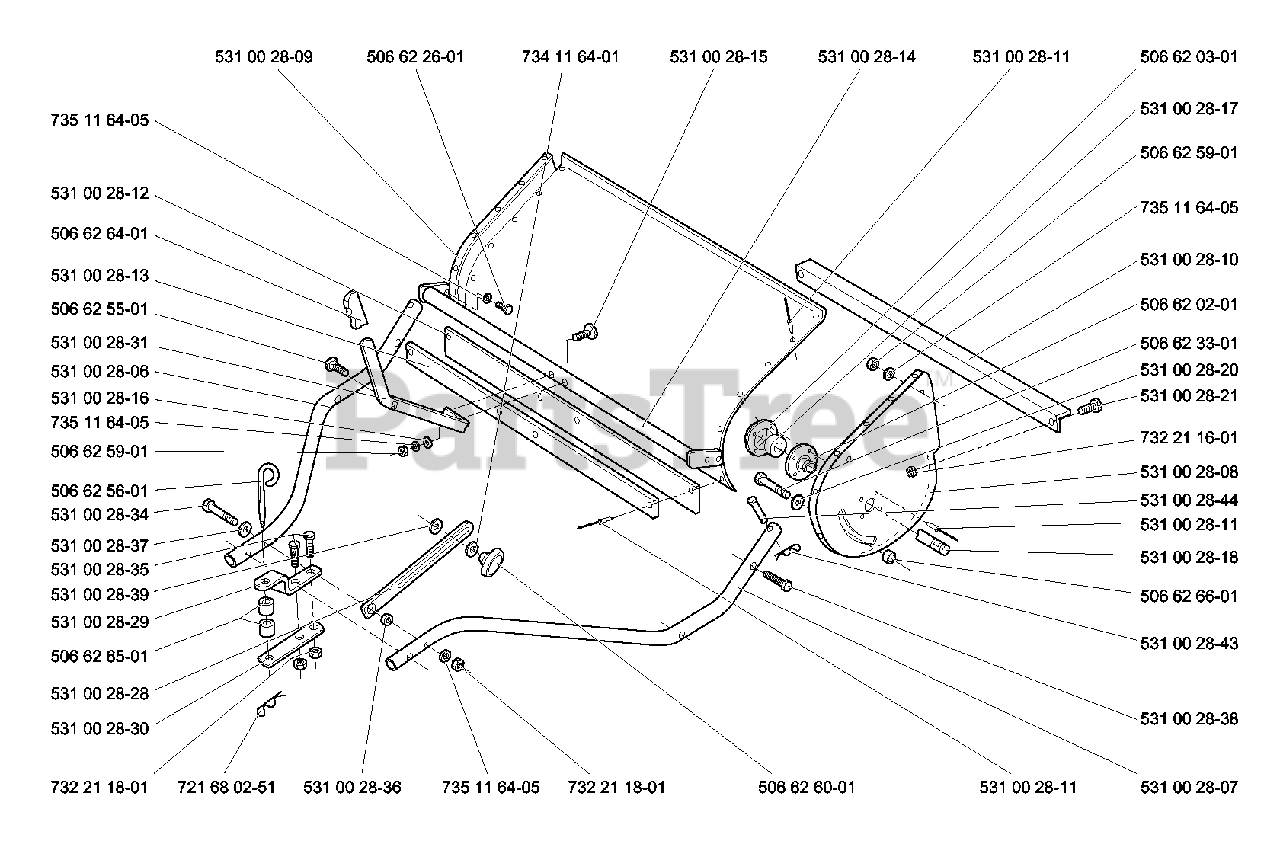

Handle Parts Diagram

  • Title

506620201

Husqvarna 506620201

Brush Bushing Assy

$

$

Not available

506620301

Husqvarna 506620301

Ballbearing 5916 1.D
(Superseded to 601002178)

$

$

Not available

506622601

Husqvarna 506622601

Hex Bolt 5/16äx3/4ä
(Superseded to 874780512)

$3.99

$

In Stock, Qty 20+

0

506623301

Husqvarna 506623301

Hex Bolt
(Superseded to 874610652)

$

$

Not available

506625501

Husqvarna 506625501

Carriage Bolt
(Superseded to 872140506)

$3.99

$

In Stock, Qty 20+

0

506625601

Husqvarna 506625601

Hitch Pin

$

$

Not available

506625901

Husqvarna 506625901

Hex Nut
(Superseded to 873220500)

$6.49

$

Usually ships in 3-10 days

0

506626001

Husqvarna 506626001

Knob,Wing

$

$

Not available

506626401

Husqvarna 506626401

Grip

$

$

Not available

506626501

Husqvarna 506626501

Hitch Adjustment Tube

$

$

Not available

506626601

Husqvarna 506626601

Spacer

$

$

Not available

531002806

Husqvarna 531002806

Tube, R.H.

$

$

Not available

531002807

Husqvarna 531002807

Tube, L.H.

$

$

Not available

531002808

Husqvarna 531002808

Plate, L.H.

$

$

Not available

531002809

Husqvarna 531002809

Plate, R.H.

$

$

Not available

531002810

Husqvarna 531002810

Support

$

$

Not available

531002811

Husqvarna 531002811

Repl by 722 78 70-03
(Superseded to 722787003)

$2.49

$

Usually ships in 3-10 days

0

531002812

Husqvarna 531002812

Skirt 42

$

$

Not available

531002813

Husqvarna 531002813

Support

$

$

Not available

531002814

Husqvarna 531002814

Rod

$

$

Not available

531002815

Husqvarna 531002815

Screw

$

$

Not available

531002816

Husqvarna 531002816

Washer

$

$

Not available

531002817

Husqvarna 531002817

Ball Bearing
(Superseded to 601002178)

$

$

Not available

531002818

Husqvarna 531002818

Shaft

$

$

Not available

531002820

Husqvarna 531002820

Repl by 531 00 46-35
(Superseded to 531004635)

$

$

Not available

531002821

Husqvarna 531002821

Screw

$

$

Not available

531002828

Husqvarna 531002828

Arm

$

$

Not available

531002829

Husqvarna 531002829

Bracket

$

$

Not available

531002830

Husqvarna 531002830

Bracket

$

$

Not available

531002831

Husqvarna 531002831

Arm

$

$

Not available

531002834

Husqvarna 531002834

Screw

$

$

Not available

531002835

Husqvarna 531002835

Screw

$

$

Not available

531002836

Husqvarna 531002836

Spacer

$

$

Not available

531002837

Husqvarna 531002837

Washer

$

$

Not available

531002838

Husqvarna 531002838

Screw
(Superseded to 522751501)

$

$

Not available

531002839

Husqvarna 531002839

Washer, Tooth Lock

$1.99

$

Usually ships in 3-10 days

0

531002843

Husqvarna 531002843

Hairpin Cotter

$

$

Not available

721680251

Husqvarna 721680251

R-Clip

$5.99

$

Usually ships in 3-10 days

0

732211601

Husqvarna 732211601

Locknut M6

$4.99

$

Usually ships in 3-10 days

0

732211801

Husqvarna 732211801

Locknut M8

$5.99

$

In Stock, Qty 13

0

734116401

Husqvarna 734116401

Washer Brb 8.4x17

$6.49

$

In Stock, only 4 left!

0

735116405

Husqvarna 735116405

Washer

$

$

Not available
