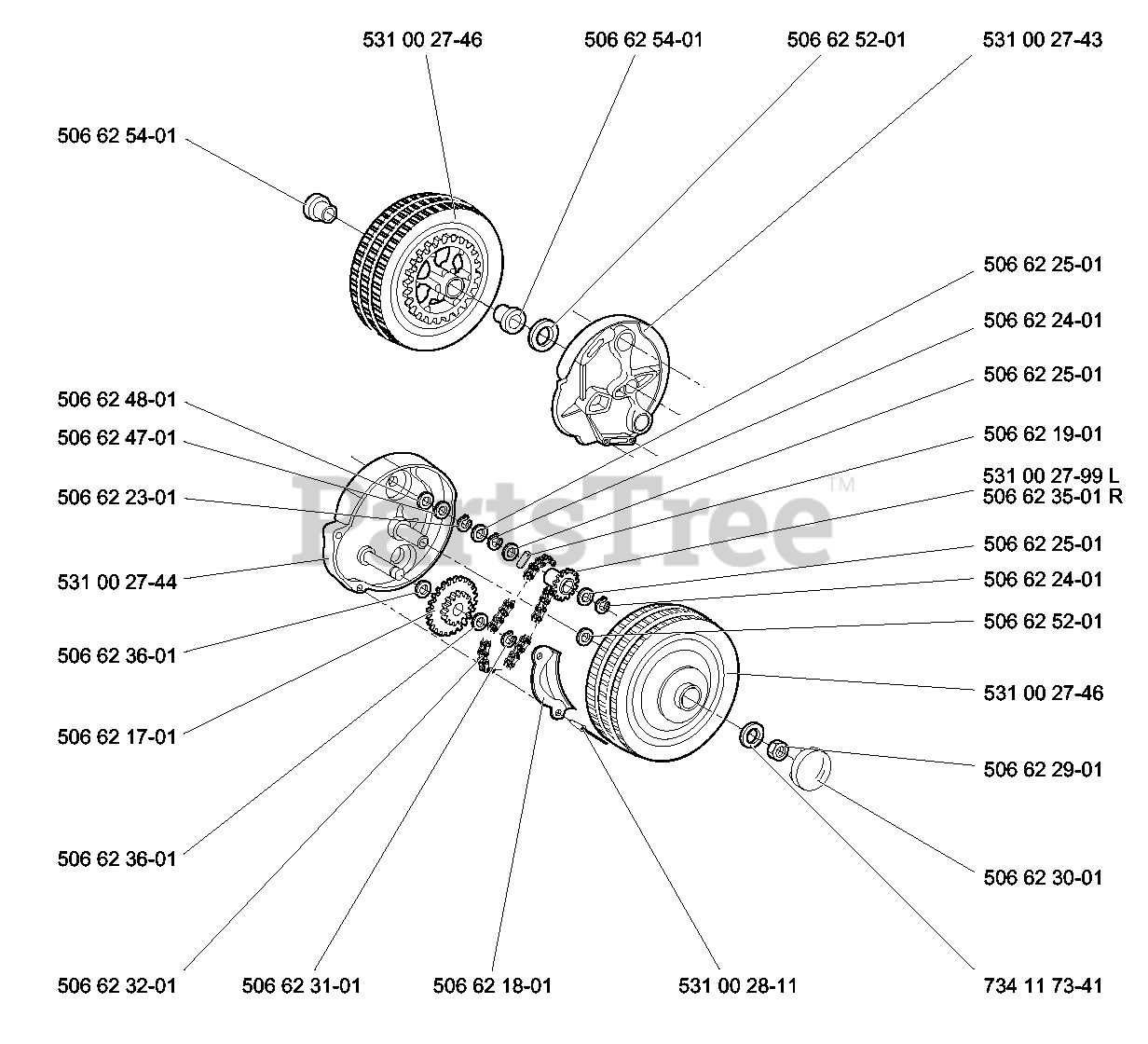

HS 1100 - Husqvarna Tow-Behind Sweeper (1997-04) Reel Parts Diagram

Tow-Behind Sweeper

Reel Parts Diagram

  • Title

506621701

Husqvarna 506621701

Gear Sprucket Sub Assy
(Superseded to 601001940)

$

$

Not available

506621801

Husqvarna 506621801

Dust Cover

$

$

Not available

506621901

Husqvarna 506621901

Pawl

$

$

Not available

506622301

Husqvarna 506622301

Retaining Ring 3/4ä

$

$

Not available

506622401

Husqvarna 506622401

Retaining Ring.594äu-D

$

$

Not available

506622501

Husqvarna 506622501

Shim Waser

$

$

Not available

506622901

Husqvarna 506622901

Hex Lock Nut 3/8-24thd
(Superseded to 873610600)

$3.99

$

Usually ships in 3-10 days

0

506623001

Husqvarna 506623001

Hub Cap

$

$

Not available

506623101

Husqvarna 506623101

Retaining Ring 1/2ä

$

$

Not available

506623201

Husqvarna 506623201

Roller Chain

$

$

Not available

506623501R

Husqvarna 506623501

Ratchet Sprocket

$

$

Not available

506623601

Husqvarna 506623601

Washer

$

$

Not available

506624701

Husqvarna 506624701

Fl-Washer
(Superseded to 819251816)

$6.49

$

Usually ships in 3-10 days

0

506625201

Husqvarna 506625201

Fl Washer

$

$

Not available

506625401

Husqvarna 506625401

Wheel Bearing

$

$

Not available

531002743

Husqvarna 531002743

Shield

$

$

Not available

531002744

Husqvarna 531002744

Shield

$

$

Not available

531002746

Husqvarna 531002746

Wheel
(Superseded to 601001889)

$

$

Not available

534002799L

Husqvarna 531002799

Gear

$

$

Not available

531002811

Husqvarna 531002811

Repl by 722 78 70-03
(Superseded to 722787003)

$2.49

$

Usually ships in 3-10 days

0

734117341

Husqvarna 734117341

Washer

$

$

Not available
