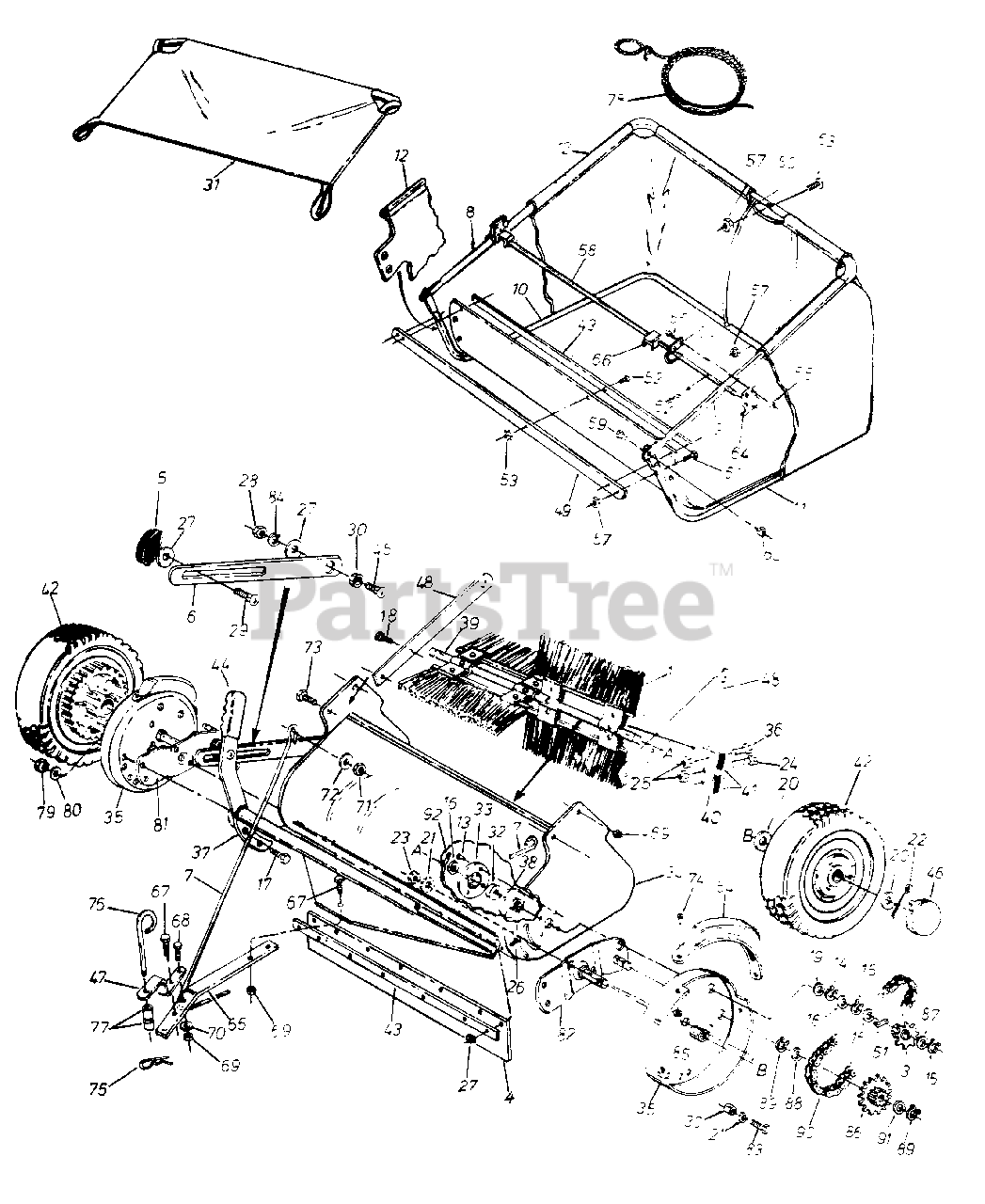

HS 320 (190-527-000) - Husqvarna Tow-Behind Sweeper (1992-04) Repair Parts Parts Diagram

Tow-Behind Sweeper

Repair Parts Parts Diagram

  • Title

1

Husqvarna 43903

Brush

$

$

Currently unavailable

2

Husqvarna 43890

Sprocket-Ratchet R.H.

Note: (Not Shown)

$

$

Currently unavailable

3

Husqvarna 43889

Sprocket-Ratcher L.H.

$

$

Currently unavailable

4

Husqvarna 43645

Skirt

$

$

Currently unavailable

5

Husqvarna 43720

Height Adjustment Knob

$

$

Currently unavailable

6

Husqvarna 23387

Height Adjustment Strap

$

$

Currently unavailable

7

Husqvarna 43979

Brace Rod

$

$

Currently unavailable

8

Husqvarna 44309

Upper Hopper Tube-R.H.

$

$

Currently unavailable

9

Husqvarna 44310

Upper Hopper Tube-L.H.

$

$

Currently unavailable

10

Husqvarna 43930

Lower Hopper Tube-R.H.

$

$

Currently unavailable

11

Husqvarna 43929

Lower Hopper Tube-L.H.

$

$

Currently unavailable

12

Husqvarna 44372

Hopper Bag

$

$

Currently unavailable

13

C9M5732

Rivet

$

$

Not available

14

Husqvarna 43655

Retaining Ring-3/4"

$

$

Currently unavailable

15

165021

Retaining Ring .594 I.D.

$

$

Not available

16

Husqvarna 44007

Fl.-Washer (Shim) .596 x 1.125 x .025

$

$

Currently unavailable

17

Husqvarna 43182

Hex Bolt 5/16-18 x 3/4" Lg

$

$

Currently unavailable

18

Husqvarna 43407

Hex Bolt 3/8-16 x 3/4" Lg. (Gr. 5)

$

$

Currently unavailable

19

Husqvarna 44008

Fl.-Washer .783 x 1.125 x .025

$

$

Currently unavailable

20

Husqvarna 44137

Fl.-Washer .51 x .990 x .020

$

$

Currently unavailable

21

Husqvarna 43070

Washer 3/8" Std.

$

$

Not available

22

Husqvarna 0142000

Cotter Pin 1/8" Dia. x 3/4" - Lg.

$

$

Currently unavailable

23

Husqvarna 1038

Hex Lock Nut 3/8-243 Thd.

$

$

Currently unavailable

24

Husqvarna 43661

Hex Bolt 1/4-20 x 1" Lg.

$

$

Currently unavailable

25

Husqvarna 43013

Hex Lock Nut 1/4-20 Thd.

$

$

Currently unavailable

26

Husqvarna 1095

Truss. Slotted Hd. Scr. #10-32 x 1/2" Lg.

$

$

Currently unavailable

27

Husqvarna 43081

Washer, 5/16" Std.

$

$

Not available

28

Husqvarna 43064

Hex Nut 5/6-18 Thd.

$

$

Not available

29

Husqvarna 43080

Carriage Bolt 5/16-18 x 3/4" Lg.

$

$

Not available

30

Husqvarna 23400

Bushing Spacer

$

$

Currently unavailable

31

Husqvarna 44313

Wind Screen

$

$

Currently unavailable

32

Husqvarna 165213

Ball Bearing .5915" I.D.

$

$

Currently unavailable

33

162956

Bearing Retainer

$

$

Not available

34

Husqvarna 62445

Sweeper Housing Ass'y.

$

$

Currently unavailable

35

Husqvarna 44321

Dust Cover

$

$

Currently unavailable

36

Husqvarna 43012

Hex Bolt 1/4-20 x 3/4" Lg (Gr. 5)

$

$

Not available

37

Husqvarna 62501

Height Adjustment Tube Ass'y.

$

$

Currently unavailable

38

Husqvarna 62489

Brush Bushing Ass'y.

$

$

Currently unavailable

39

Husqvarna 23723

Brush Shaft

$

$

Currently unavailable

40

Husqvarna 23580

Brush Retainer (Double)

$

$

Currently unavailable

41

Husqvarna 23581

Brush Retainer (Single)

$

$

Currently unavailable

42

Husqvarna 43985

Wheel Ass'y. Comp.

$

$

Currently unavailable

43

Husqvarna 23345

Skirt Retainer

$

$

Currently unavailable

44

Husqvarna 43943

Grip

$

$

Currently unavailable

45

Husqvarna 43080

Carriage Bolt 5/16-18 x 3/4" Lg.

$

$

Not available

46

267432

Hub Cap

$

$

Not available

47

Husqvarna 23014

Hitch Bracket

$

$

Currently unavailable

48

Husqvarna 23595

Bag Mount Arm

$

$

Currently unavailable

49

Husqvarna 23351

Bag Frame Strap

$

$

Currently unavailable

50

Husqvarna 43938

Wire Support

$

$

Currently unavailable

51

Husqvarna 16711

Pawl (HT)

$

$

Currently unavailable

52

Husqvarna 43346

Truss Hd. Slotted Scr. #10-32 x 5/8" Lg.

$

$

Not available

53

Husqvarna 43662

Hex Lock Nut #10-32 Thd.

$

$

Currently unavailable

54

Husqvarna 44322

Chain Shield

$

$

Currently unavailable

55

Husqvarna 43064

Hex Lock Nut 5/16-18 Thd.

$

$

Not available

56

Husqvarna 43182

Hex Bolt 5/16-18 x 3/4".

$

$

Currently unavailable

57

Husqvarna 43013

Hex Lock Nut 1/4-20 Thd.

$

$

Currently unavailable

58

Husqvarna 23724

Hopper Bag Pivot Rod

$

$

Currently unavailable

59

Husqvarna 43407

Hex Bolt 3/8-16 x 3/4"

$

$

Currently unavailable

60

Husqvarna 43082

Hex Lock Nut 3/8-16 Thd.

$

$

Not available

61

Husqvarna 150990

Hex Bolt 1/4-20 x 1-1/4" Lg.

$

$

Currently unavailable

62

Husqvarna 0142000

Cotter Pin 1/8" Dia. x 3/4" Lg.

$

$

Currently unavailable

63

Husqvarna 43978

Curved Hd. Bolt 1/4-20 x 1" Lg.

$

$

Currently unavailable

64

Husqvarna 23331

Hopper Mount Clamp

$

$

Currently unavailable

65

Husqvarna 23349

Hitch Bar

$

$

Currently unavailable

66

Husqvarna 23354

Bag Retainer Clevis

$

$

Currently unavailable

67

Husqvarna 43001

Hex Bolt 3/8-16 x 1" Lg. (Gr. 5)

$

$

Not available

68

Husqvarna 43062

Hex Bolt 3/8-16 x 1-1/2" Lg

$

$

Not available

69

Husqvarna 43082

Hex Lock Nut 3/8-16 Thd.

$

$

Not available

70

Husqvarna R19172410

Fl.-Washer 17/32 x 1-1/2"

$

$

Currently unavailable

71

Husqvarna 43082

Hex Lock Nut 3/8-16 Thd.

$

$

Not available

72

Husqvarna 43070

Fl.-Washer 3/8" Std.

$

$

Not available

73

Husqvarna 43087

Hex Bolt 3/8-16 x 1-1/4" Lg.

$

$

Not available

74

Husqvarna 44060

Rivet

$

$

Currently unavailable

75

Husqvarna 43343

Hairpin Cotter 5/32

$

$

Not available

76

Husqvarna 23353

Hitch Pin

$

$

Currently unavailable

77

Husqvarna 23368

Hitch Adjustment Tubes

$

$

Currently unavailable

78

Husqvarna 43737

Hopper Rope

$

$

Currently unavailable

79

Husqvarna 43064

Hex Lock Nut 5/16-18 Thd.

$

$

Not available

80

Husqvarna 19111116

Washer, Std. 5/16" S.A.E.

$

$

Not available

81

Husqvarna 62658

Wheel Hanger Ass'y-R.H.

$

$

Currently unavailable

82

Husqvarna 62657

Wheel Hanger Ass'y-L.H.

$

$

Currently unavailable

83

Husqvarna 44377

Hex Bolt 3/8-24 x 1" Lg.

$

$

Currently unavailable

84

Husqvarna 43086

Lock Washer 5/16" I.D.

$

$

Not available

85

Husqvarna 43910

Washer

$

$

Currently unavailable

86

Husqvarna 44312

Sprocket Gear

$

$

Currently unavailable

87

Husqvarna 44006

Washer, Flat .596 x .859 x .025

$

$

Currently unavailable

88

Husqvarna 44137

Washer .51 x .990 x .02

$

$

Currently unavailable

89

Husqvarna 43894

Retaining Ring - 1/2"

$

$

Currently unavailable

90

Husqvarna 44319

Roller Chain

$

$

Currently unavailable

91

Husqvarna 44320

Washer .515 x .75 x .026

$

$

Currently unavailable

92

Husqvarna 43659

Spring Pin 3/16 x 1"

$

$

Currently unavailable

Husqvarna 44374

Owner's Manual

$

$

Currently unavailable
