HS 420 - Husqvarna Tow-Behind Sweeper (1996-12) General Assembly Parts Diagram

Tow-Behind Sweeper

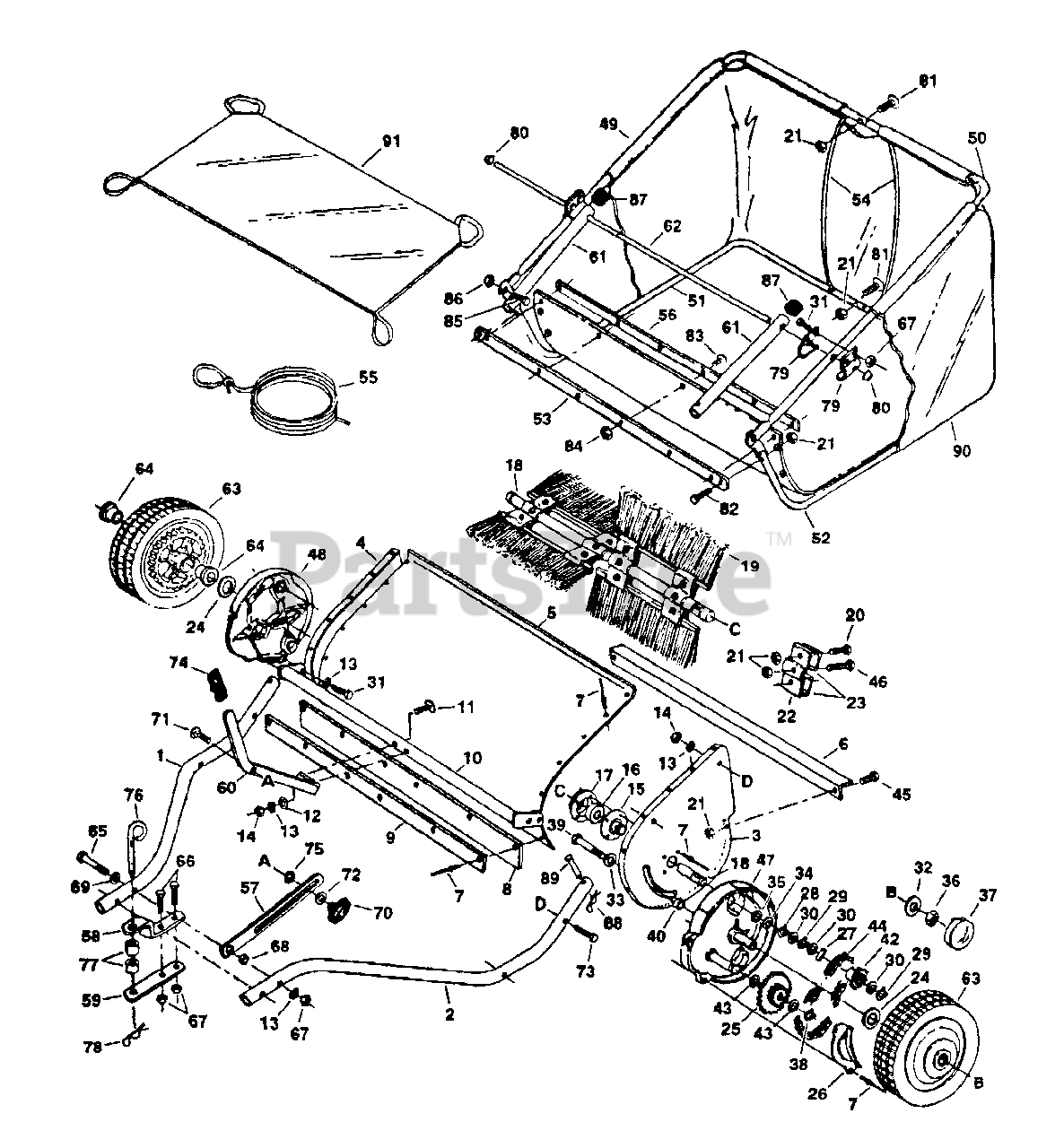

General Assembly Parts Diagram

  • Title

1

Husqvarna 46776

Hitch Tube, R.H.

$

$

Currently unavailable

2

Husqvarna 46777

Hitch Tube, L.H.

$

$

Currently unavailable

3

Husqvarna 24195

End Plate, L.H.

$

$

Currently unavailable

4

Husqvarna 24196

End Plate, R.H,

$

$

Currently unavailable

5

Husqvarna 24184

Wrapper

$

$

Currently unavailable

6

Husqvarna 24185

Brace, Rear Support
(Superseded to 582922501)

$3.99

$

Usually ships in 3-10 days

0

7

C9M5732

Rivet, Pop

$

$

Not available

8

Husqvarna 46778

Skirt, 42"

$

$

Currently unavailable

9

Husqvarna 24186

Retainer, Skirt

$

$

Not available

10

Husqvarna 63468

Height Adjustment Tube Ass'y.

$

$

Currently unavailable

11

Husqvarna 44947

Bolt, Cvd. Hd 5/16-18 x 1-5/8" Lg.

$

$

Currently unavailable

12

Husqvarna 44695

Washer, Bowed 1" x .32" x .06"

$

$

Currently unavailable

13

Husqvarna 43086

Lock Washer, 5/16"

$

$

Not available

14

Husqvarna 43083

Nut, Hex 5/16-18 Thread

$

$

Not available

15

Husqvarna 62489

Brush Bushing Ass'y.

$

$

Currently unavailable

16

Husqvarna 44232

Ball Bearing

$

$

Currently unavailable

17

162956

Retainer, Dust Cover

$

$

Not available

18

Husqvarna 24198

Brush Shaft

$

$

Currently unavailable

19

Husqvarna 46780

Brush, 42"

$

$

Currently unavailable

20

Husqvarna 43012

Bolt, Hex 1/4-20 x 3/4" Lg.

$

$

Not available

21

Husqvarna 43013

Nut, Hex Lock 1/4-20 Thread

$

$

Currently unavailable

22

Husqvarna 23580

Retainer, Brush (Double)

$

$

Currently unavailable

23

Husqvarna 23581

Retainer, Brush (Single)

$

$

Currently unavailable

24

Husqvarna 44008

Washer, Flat 1-1/8" x .78" x .025"

$

$

Currently unavailable

25

Husqvarna 62490

Sprocket / Gear

$

$

Currently unavailable

26

Husqvarna 23573

Dust Cover

$

$

Currently unavailable

27

Husqvarna 16711

Pawl

$

$

Currently unavailable

28

Husqvarna 43655

Ring, Retaining 3/4"

$

$

Currently unavailable

29

165021

Ring, Retaining .594"

$

$

Not available

30

Husqvarna 44007

Washer, Shim 1-1/8" X .594" x .025"

$

$

Currently unavailable

31

Husqvarna 43182

Bolt, Hex 5/16-18 x 3/4" Lg.

$

$

Currently unavailable

32

Husqvarna 141

Washer, Flat 1-1/2" x .375" x .062"

$

$

Currently unavailable

33

Husqvarna 43070

Washer, 3/8" Std. Wrt.

$

$

Not available

34

154031

Washer, Flat .78" x 1.25" x .06"

$

$

Not available

35

Husqvarna 1540107

Washer, Flat .78" x 1.25" x .031"

$

$

Currently unavailable

36

Husqvarna 1038

Nut, Hex Lock 3/8-24 Thread

$

$

Currently unavailable

37

267432

Hub Cap

$

$

Not available

38

Husqvarna 43894

Ring, Retaining 1/2"

$

$

Currently unavailable

39

Husqvarna 43932

Bolt, Hex 3/8-24 x 3-1/2" Lg.

$

$

Currently unavailable

40

Husqvarna 23400

Bushing, Spacer

$

$

Currently unavailable

41

Husqvarna 43890

Sprocket, Ratchet R.H.

Note: (Not shown)

$

$

Currently unavailable

42

Husqvarna 43889

Sprocket, Ratchet L.H.

$

$

Currently unavailable

43

Husqvarna 44137

Washer, 1/2" x 1" x .02"

$

$

Currently unavailable

44

Husqvarna 44542

Chain, Roller

$

$

Currently unavailable

45

Husqvarna 43175

Bolt, Hex 1/4-20 x 1/2" Lg.

$

$

Currently unavailable

46

Husqvarna 43661

Bolt, Hex 1/4-20 x 1" Lg.

$

$

Currently unavailable

47

Husqvarna 82791

Housing, Wheel Drive Ass'y. L.H.

$

$

Currently unavailable

48

Husqvarna 62792

Housing, Wheel Drive Ass'y. R.H.

$

$

Currently unavailable

49

Husqvarna 46734

Tube, Upper Hopper Frame R.H.

$

$

Currently unavailable

50

Husqvarna 46735

Tube, Upper Hopper Frame L.H.

$

$

Currently unavailable

51

Husqvarna 46732

Tube, Lower Hopper Frame R.H.

$

$

Currently unavailable

52

Husqvarna 46733

Tube, Lower Hopper Frame L.H.

$

$

Currently unavailable

53

Husqvarna 24189

Strap, Bag Frame

$

$

Currently unavailable

54

Husqvarna 43938

Rod, Hopper Support 34"

$

$

Currently unavailable

55

Husqvarna 43737

Hopper Rope

$

$

Currently unavailable

56

Husqvarna 24190

Retainer, Bag

$

$

Currently unavailable

57

Husqvarna 24191

Strap, Height Adjustment

$

$

Currently unavailable

58

Husqvarna 23687

Bracket, Hitch

$

$

Currently unavailable

59

Husqvarna 24192

Bracket, Hitch (Straight)

$

$

Currently unavailable

60

Husqvarna 24193

Handle, Height Adjustment

$

$

Currently unavailable

61

Husqvarna 46781

Tube, Bag Arm

$

$

Currently unavailable

62

Husqvarna 46823

Rod, Hopper Bag Pivot

$

$

Currently unavailable

63

Husqvarna 44985

Wheel & Tire Ass'y. (White)

$

$

Currently unavailable

63

Husqvarna 46550

Wheel & Tire Ass'y. (Yellow)

$

$

Currently unavailable

64

Husqvarna 45088

Wheel Bearing

$

$

Currently unavailable

65

Husqvarna 46782

Bolt, Hex 5/16-18 x 3" Lg.

$

$

Currently unavailable

66

Husqvarna 43224

Bolt, Hex 5/16-18 x 2-1/4" Lg.

$

$

Currently unavailable

67

Husqvarna 43064

Nut, Hex Lock 5/16-18 Thread

$

$

Not available

68

Husqvarna 46847

Bushing, Spacer

$

$

Currently unavailable

69

Husqvarna B19111116

Washer, Flat (5/16) 11/32" x 11/16"

$

$

Currently unavailable

70

Husqvarna 43720

Knob, Wing 5/16-18 Thread

$

$

Currently unavailable

71

Husqvarna 43080

Belt, Carriage 5/16-18 x 3/4" Lg

$

$

Not available

72

Husqvarna 43081

Washer, Flat 5/16" Std. Wrt.

$

$

Not available

73

Husqvarna 43084

Bolt, Hex 5/16-18 x 1-3/4" Lg.

$

$

Currently unavailable

74

Husqvarna 43943

Grip, Height Adjust

$

$

Currently unavailable

75

Husqvarna 44732

Washer, Tooth Lock 5/16"

$

$

Currently unavailable

76

Husqvarna 23353

Pin, Hitch

$

$

Currently unavailable

77

Husqvarna 23368

Tube, Hitch Spacer

$

$

Currently unavailable

78

Husqvarna 43343

Hairpin Cotter, 1/8" #4

$

$

Not available

79

Husqvarna 23331

Clamp, Hopper Mount

$

$

Currently unavailable

80

Husqvarna 44917

Palnut, 3/8"

$

$

Currently unavailable

81

Husqvarna 43978

Bolt, Cvd. Hd. 1/4-20 x 1" Lg,

$

$

Currently unavailable

82

Husqvarna 150990

Bolt, Hex 1/4-20 x 1-1/4" Lg.

$

$

Currently unavailable

83

Husqvarna 43346

Bolt, Sl. Tr. Hd. #10-32 x 5/8" Lg.

$

$

Not available

84

Husqvarna 43662

Nut, Hex Lock #10-32 SEMS

$

$

Currently unavailable

85

Husqvarna 43407

Bolt, Hex 3/8-16 x 3/4" Lg.

$

$

Currently unavailable

86

Husqvarna 43082

Nut, Hex Lock 3/8-16 Thread

$

$

Not available

87

Husqvarna 44481

Cap, Vinyl

$

$

Currently unavailable

88

Husqvarna 43055

Hairpin Cotter, 3/32" #3

$

$

Currently unavailable

89

Husqvarna 46867

Pin, Clevis 1/4" x 1-1/2" Lg.

$

$

Currently unavailable

90

Husqvarna 46738

Hopper Bag

$

$

Currently unavailable

91

Husqvarna 46739

Wind Screen

$

$

Currently unavailable

Husqvarna 46815

Owner's Manual

$

$

Currently unavailable
