HS 720 R (41AJHS-B054) - Troy-Bilt Trimmer Plus Hedge Trimmer Attachment General Assembly Parts Diagram

Trimmer Plus Hedge Trimmer Attachment

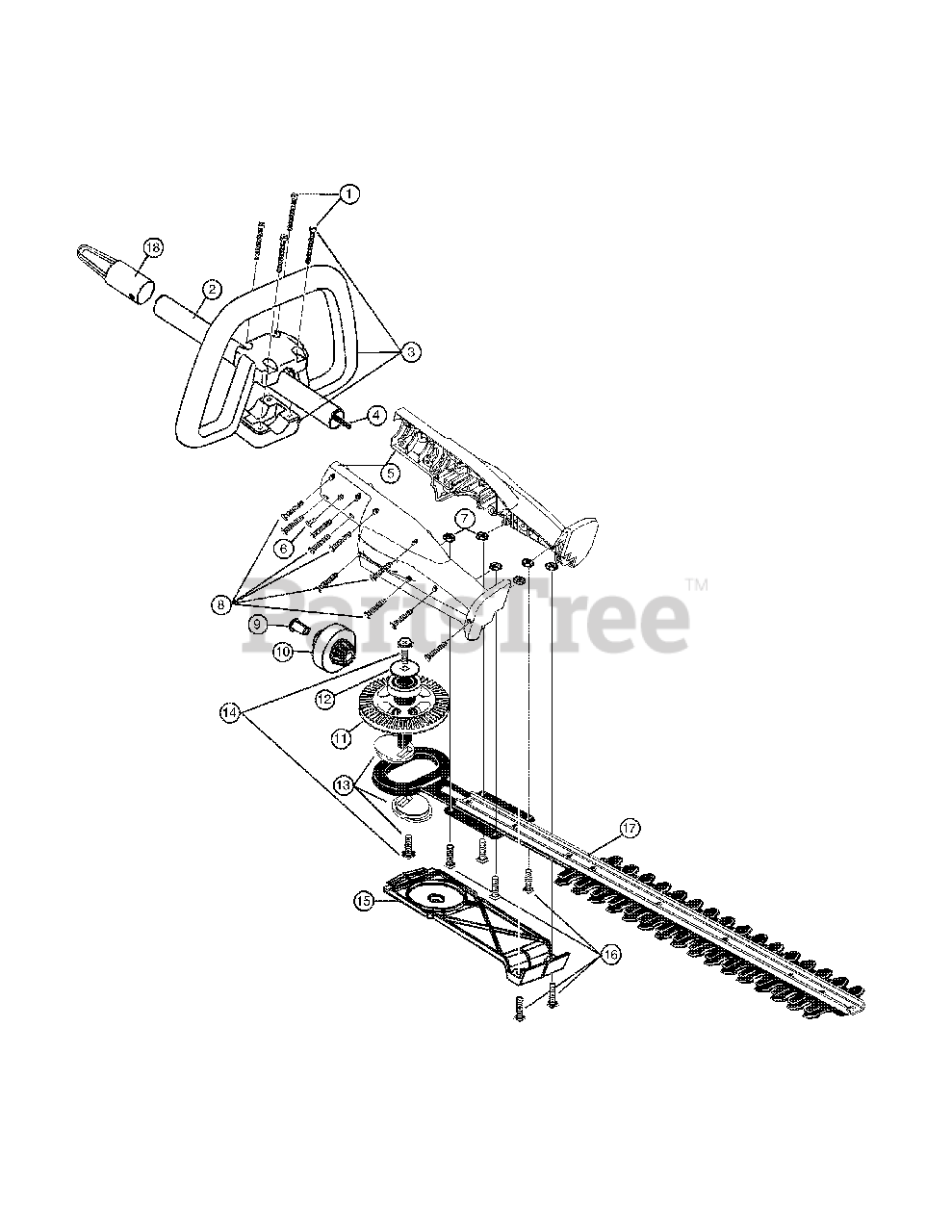

General Assembly Parts Diagram

  • Title

1

Troy-Bilt 791-181070

Screw

$4.49

$

Usually ships in 3-6 days

0

2

MTD 753-1220

Drive Shaft Housing Assembly

$

$

Not available

3

MTD 791-180869

Loop Handle Assembly

$

$

Not available

4

MTD 791-181840

Drive Shaft Assembly

$

$

Not available

5

MTD 753-1219

Housing Set

$

$

Not available

6

MTD 791-181629

Anti-Rotation Screw

$

$

Not available

7

Troy-Bilt 791-181843

Nut

$

$

Not available

8

Troy-Bilt 791-181844

Housing Screw

$5.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 791-181851

Insulator

$6.99

$

In Stock, Qty 6

0

10

MTD 791-181845

Pinion Gear

$

$

Not available

11

Troy-Bilt 791-181846

Bevel Gear Assembly (includes items 12-14)

$

$

Not available

12

Troy-Bilt 791-182169

Washer

$

$

Not available

13

MTD 791-181847

Cam Assembly (includes 14)

$

$

Not available

14

Troy-Bilt 791-181848

Screw

$

$

Not available

15

Troy-Bilt 791-181849

Bottom Plate

$

$

Not available

16

Troy-Bilt 791-181827

Screw

$

$

Not available

17

MTD 791-181660

Cutting Blade Assembly

$

$

Not available

18

Troy-Bilt 791-612605

Hanger
(Superseded to 731-08926)

$2.49

$

In Stock, Qty 16

0
