HS1132 TAS/A (SZBF) - Honda 32" Snow Blower, Made in Japan (SN: SZBF-1010001 - SZBF-9999999) TRANSMISSION CASE Parts Diagram

32" Snow Blower, Made in Japan

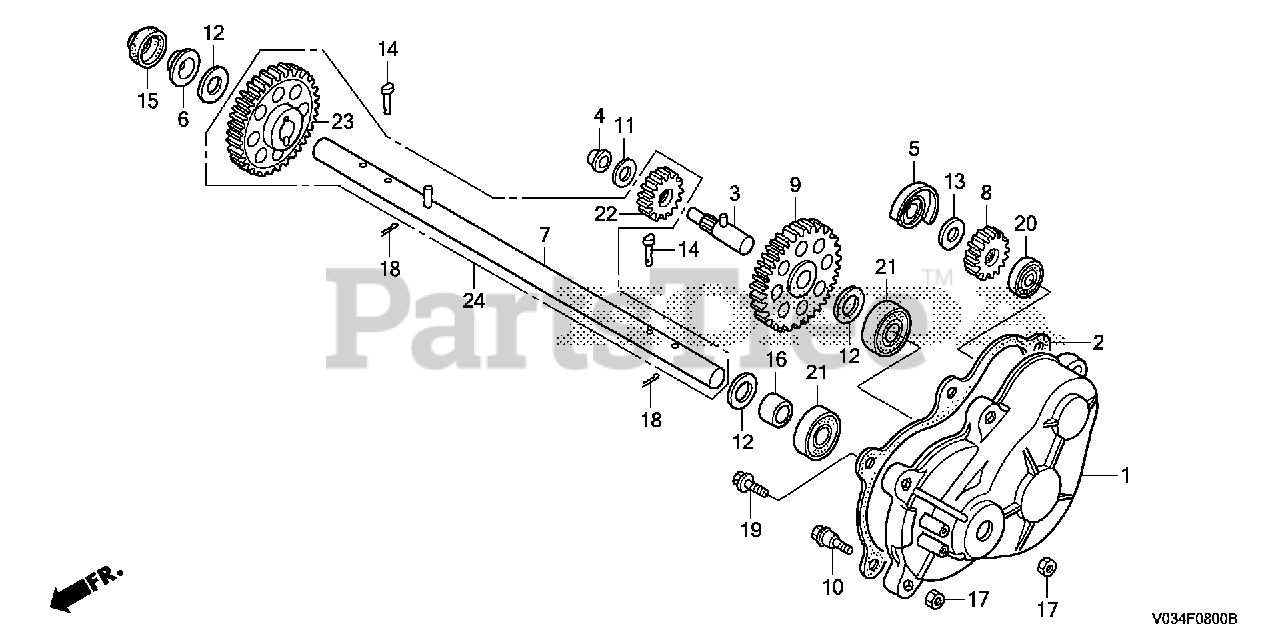

TRANSMISSION CASE Parts Diagram

  • Title

1

Honda 21111-767-000

CASE, R. TRANSMISSION

$212.99

$

Usually ships in 3-6 days

0

2

Honda 21115-767-C30

GASKET, TRANSMISSION CASE

$14.99

$

In Stock, only 2 left!

0

3

Honda 23220-767-000

COUNTERSHAFT

$28.99

$

In Stock, only 1 left!

0

4

Honda 23222-767-A11

BUSH, COUNTERSHAFT

$15.99

$

In Stock, only 2 left!

0

5

Honda 23234-767-000

BUSH, CROSS SHAFT

$11.99

$

In Stock, only 1 left!

0

6

Honda 23252-767-003

BUSH, FINAL SHAFT

$6.99

$

In Stock, Qty 5

0

7

Honda 23370-767-020

SHAFT, WHEEL

Note: Use from Frame SN 1010101.

$100.99

$

In Stock, only 1 left!

0

8

Honda 23421-767-003

GEAR, DRIVE (19T)

$32.99

$

In Stock, only 1 left!

0

9

Honda 23431-767-003

GEAR, DRIVEN (48T)

$137.99

$

Usually ships in 3-6 days

0

10

Honda 90004-732-000

BOLT, TRANSMISSION SETTING

$4.49

$

Usually ships in 3-6 days

0

11

Honda 90461-GJ5-000

WASHER, THRUST (12MM)

$3.49

$

Usually ships in 3-6 days

0

12

Honda 90525-750-000

WASHER, DIFFERENTIAL GEAR

$4.99

$

In Stock, only 4 left!

0

13

Honda 90599-767-000

WASHER, THRUST (15X24X2)

$3.99

$

Usually ships in 3-6 days

0

14

Honda 90702-743-000

PIN (6MM)

$3.99

$

In Stock, Qty 5

0

15

Honda 91251-767-C31

DUST SEAL (20X34X7.5)

$5.49

$

In Stock, only 2 left!

0

16

Honda 91551-767-000

COLLAR, WHEEL SHAFT

$5.49

$

In Stock, only 1 left!

0

17

Honda 94001-06000-0S

SEE PART DETAILS - SUP; NUT, HEX. (6MM)
(Superseded to 94001-06200-0S)

$1.99

$

In Stock, Qty 20+

0

17

Honda 94001-06200-0S

SEE PART DETAILS - PRI; NUT, HEX. (6MM)

$1.99

$

In Stock, Qty 20+

0

18

Honda 94201-30250

PIN, SPLIT (3.0X25)
(Superseded to 94201-30450)

$1.49

$

In Stock, Qty 7

0

18

Honda 94201-30450

PIN, SPLIT (3.0X45)

$1.49

$

In Stock, Qty 7

0

19

Honda 95701-06018-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X18)

$1.99

$

In Stock, Qty 6

0

20

Honda 96150-60020-10

BEARING, RADIAL BALL (6002UU)

$15.99

$

Usually ships in 3-6 days

0

21

Honda 96150-60040-10

BEARING, RADIAL BALL (6004UU)

$21.99

$

In Stock, Qty 7

0

22

Honda 23414-767-000

GEAR, FINAL DRIVE (15T)

Note: Use from Frame SN 1010101.

$28.99

$

In Stock, only 2 left!

0

22

Honda 23414-767-000

GEAR, FINAL DRIVE (15T)

Note: (Optional). Use up to Frame SN 1010100.

$28.99

$

In Stock, only 2 left!

0

22

Honda 23421-767-003

GEAR, DRIVE (19T)

Note: Use up to Frame SN 1010100.

$32.99

$

In Stock, only 1 left!

0

23

Honda 23431-767-003

GEAR, DRIVEN (48T)

Note: Use up to Frame SN 1010100.

$137.99

$

Usually ships in 3-6 days

0

23

Honda 23442-767-000

GEAR, FINAL DRIVEN (38T)

Note: Use from Frame SN 1010101.

$86.99

$

Usually ships in 3-6 days

0

23

Honda 23442-767-000

GEAR, FINAL DRIVEN (38T)

Note: (Optional). Use up to Frame SN 1010100.

$86.99

$

Usually ships in 3-6 days

0

24

Honda 04201-767-000

SEE PART DETAILS - PRI; GEAR SET, FINAL

Note: Use up to Frame SN 1010100.

$201.99

$

In Stock, only 1 left!

0
