HS1132 TAS (SZBF) - Honda 32" Snow Blower, Made in Japan (SN: SZBF-1000001 - SZBF-1009999) CYLINDER Parts Diagram

32" Snow Blower, Made in Japan

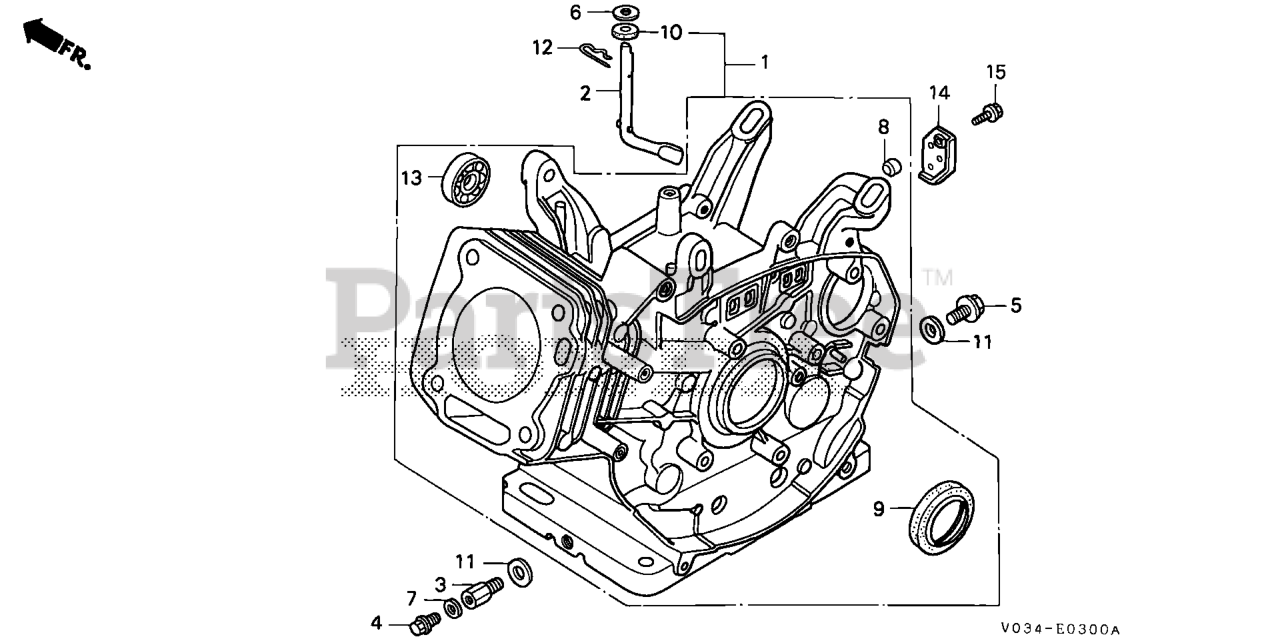

CYLINDER Parts Diagram

  • Title

1

Honda 12000-ZE3-418

CYLINDER ASSY. (SELF STARTER)

Note: Use from Engine SN 3334264.

$826.99

$

Usually ships in 3-6 days

0

2

Honda 16541-ZE3-010

SEE PART DETAILS - PRI; SHAFT, GOVERNOR ARM (Honda Code 4717393).

$16.99

$

In Stock, only 1 left!

0

3

Honda 19526-ZE3-H60

EXTENSION, OIL DRAIN

$13.99

$

Usually ships in 3-6 days

0

4

Honda 90131-ZE1-000

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG

$2.99

$

In Stock, Qty 8

0

5

Honda 90131-896-650

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG (Honda Code 1986231).

$4.99

$

In Stock, Qty 9

0

6

Honda 90446-KE1-000

WASHER (8.2X17X0.8) (Honda Code 2027134).

$2.49

$

In Stock, only 1 left!

0

7

Honda 90601-ZE1-000

WASHER, DRAIN PLUG (10.2MM) (Honda Code 1436583).

$1.49

$

In Stock, Qty 7

0

8

Honda 90801-ZE2-003

PLUG, SEALING (Honda Code 2794048).

$4.49

$

Usually ships in 3-6 days

0

9

Honda 91201-ZE3-004

OIL SEAL (35X52X8) (Honda Code 2108595).

$10.99

$

In Stock, Qty 5

0

10

Honda 91201-ZE9-003

SEE PART DETAILS - PRI; OIL SEAL (8X14X5) (Honda Code 2461713).

$4.99

$

In Stock, only 2 left!

0

10

Honda 91203-952-771

SEE PART DETAILS - SUP; OIL SEAL (8X14X5) (Honda Code 0744326).
(Superseded to 91201-ZE9-003)

$4.99

$

In Stock, only 2 left!

0

11

Honda 94109-12000

SEE PART DETAILS - PRI; WASHER, DRAIN PLUG (12MM) (Honda Code 0171868).

$1.49

$

In Stock, Qty 20+

0

12

Honda 94251-10000

PIN, LOCK (10MM) (Honda Code 0159269).

$1.49

$

In Stock, Qty 5

0

13

Honda 96100-62020-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6202) (Honda Code 0708941).

$11.99

$

In Stock, only 1 left!

0
