HS1132 TAS (SZBF) - Honda 32" Snow Blower, Made in Japan (SN: SZBF-1000001 - SZBF-1009999) DRIVEN PULLEY Parts Diagram

32" Snow Blower, Made in Japan

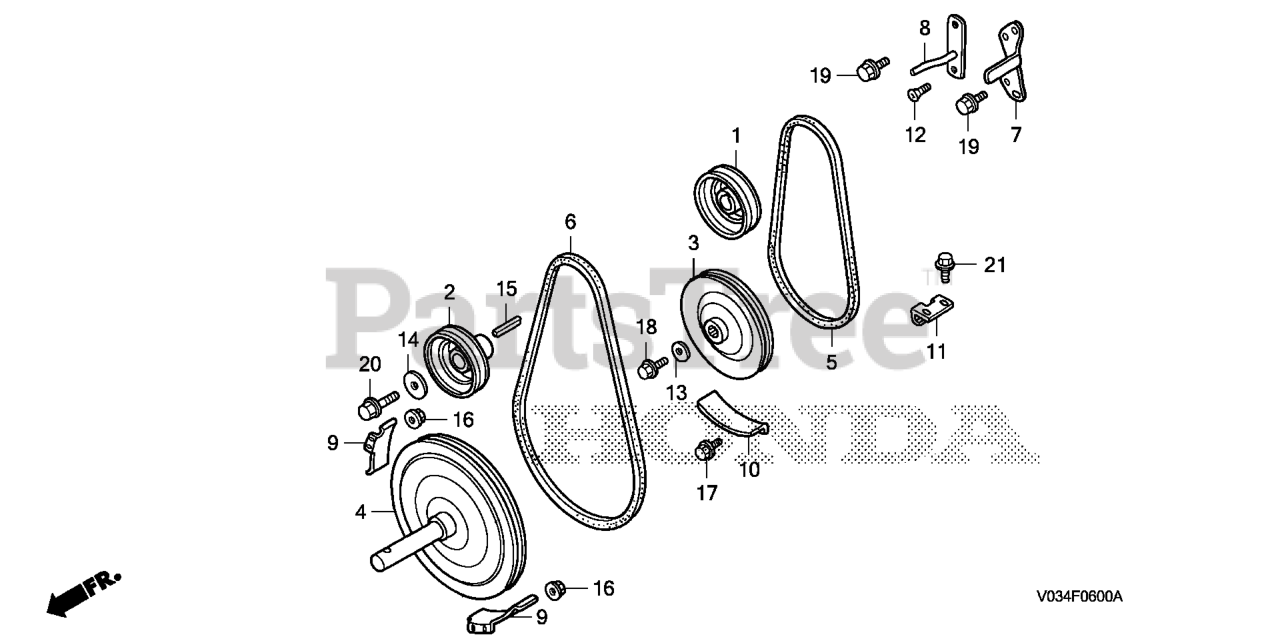

DRIVEN PULLEY Parts Diagram

  • Title

1

Honda 22411-738-000

PULLEY, WHEEL DRIVEN

$44.99

$

In Stock, only 1 left!

0

2

Honda 22412-738-700

PULLEY, AUGER DRIVE

$44.99

$

In Stock, only 1 left!

0

3

Honda 22423-767-000

PULLEY, WHEEL DRIVEN (133MM)

$63.99

$

In Stock, only 1 left!

0

4

Honda 22424-768-020

SEE PART DETAILS - PRI; PULLEY, AUGER DRIVEN (198MM)

$81.99

$

In Stock, only 1 left!

0

5

Honda 22431-768-003

SEE PART DETAILS - PRI; V-BELT (SA-29)

$17.99

$

In Stock, only 2 left!

0

6

Honda 22432-V03-000

SEE PART DETAILS - PRI; V-BELT (SB-35)

$34.99

$

In Stock, only 1 left!

0

7

Honda 22441-767-000

STOPPER, R. BELT (L. SIDE)

$15.99

$

Usually ships in 3-6 days

0

8

Honda 22442-738-A00

STOPPER, L. BELT (R. SIDE)

$31.99

$

Usually ships in 3-6 days

0

9

Honda 22444-768-000

STOPPER, AUGER BELT

$12.99

$

In Stock, only 1 left!

0

10

Honda 22451-767-000

PROTECTOR, BELT (WHEEL)

$6.49

$

Usually ships in 3-6 days

0

11

Honda 22453-767-C30

GUIDE, BELT

$20.99

$

Usually ships in 3-6 days

0

12

Honda 75556-605-010

BOLT, DOOR LOCK STRIKER

$7.99

$

Usually ships in 3-6 days

0

13

Honda 90417-115-000

WASHER, CAMSHAFT SIDE

$3.49

$

Usually ships in 3-6 days

0

14

Honda 90534-706-010

SEE PART DETAILS - PRI; WASHER, LOCK (8MM) (Honda Code 0177998).

$6.49

$

Usually ships in 3-6 days

0

15

Honda 90741-889-810

SEE PART DETAILS - PRI; KEY (7X7X33) (Honda Code 1064039).

$8.99

$

Usually ships in 3-6 days

0

16

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

17

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use up to Engine SN 1543277.

$1.99

$

In Stock, Qty 20+

0

18

Honda 95701-06016-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16) (Honda Code 2105807).

$1.99

$

In Stock, Qty 5

0

19

Honda 95701-08016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16) Use from Engine SN 1000016.

$2.49

$

In Stock, Qty 20+

0

20

Honda 95701-08028-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X28) (Honda Code 2581387).

$1.99

$

Usually ships in 3-6 days

0

21

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use up to Engine SN 1543277.

$1.99

$

In Stock, Qty 20+

0
