HS1132 TAS (SZBF) - Honda 32" Snow Blower, Made in Japan (SN: SZBF-1000001 - SZBF-1009999) FUEL TANK Parts Diagram

32" Snow Blower, Made in Japan

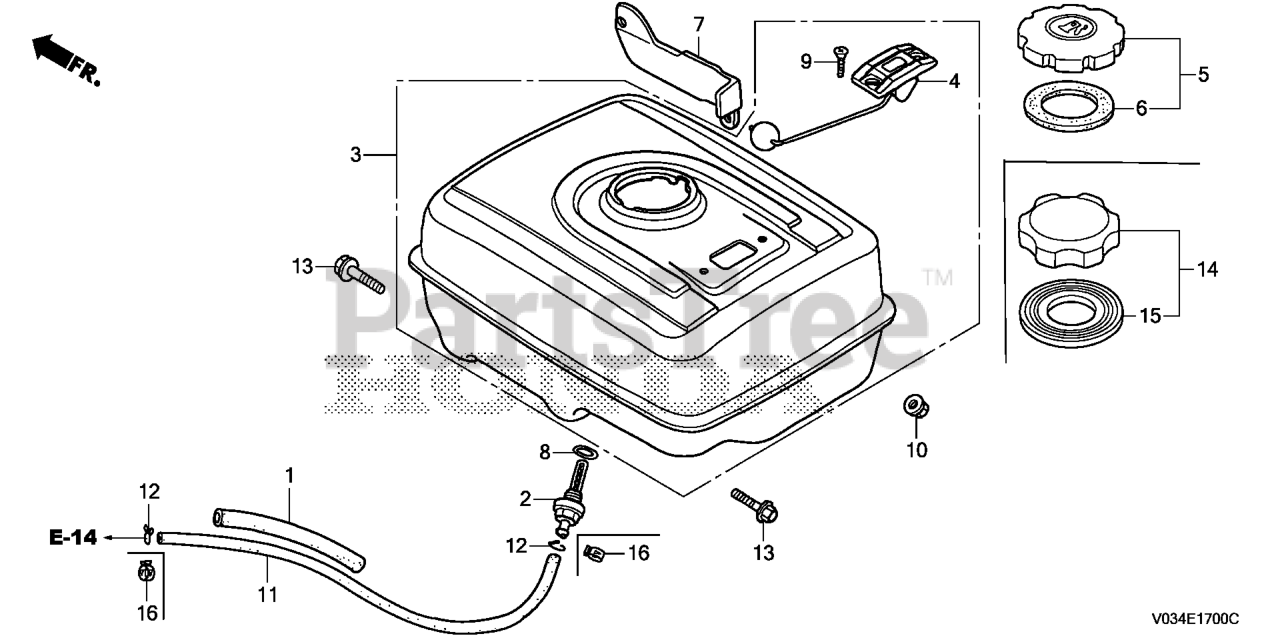

FUEL TANK Parts Diagram

  • Title

1

Honda 16854-ZH8-000

SEE PART DETAILS - PRI; RUBBER, SUPPORTER (107MM) (Honda Code 3683646).

$4.99

$

In Stock, Qty 9

0

2

Honda 16955-ZE1-010

SEE PART DETAILS - PRI; JOINT, FUEL TANK

$7.99

$

In Stock, Qty 17

0

3

Honda 17500-ZE3-813ZF

TANK ASSY., FUEL *R280* (GAUGE) (POWER RED)

$162.99

$

Usually ships in 3-6 days

0

4

Honda 17505-ZE2-013

GAUGE ASSY., FUEL

$35.99

$

Usually ships in 3-6 days

0

5

Honda 17620-ZH7-023

SEE PART DETAILS - PRI; CAP, FUEL FILLER (BLACK) Use up to Engine SN 2115700.
(Superseded to 17620-Z0T-305)

$

$

Not available

5

Honda 17620-Z0T-305

SEE PART DETAILS - PRI; CAP, FUEL FILLER (CHROME PLATED)

$

$

Not available

5

Honda 17620-Z0T-315

CAP COMP

$17.99

$

In Stock, Qty 9

0

6

Honda 17631-ZE1-000

GASKET, FUEL FILLER CAP (39X58X3) (NOT AVAILABLE)

$3.49

$

In Stock, only 3 left!

0

6

Honda 17631-329-003

SEE PART DETAILS - PRI; GASKET, FUEL FILLER CAP Use from Engine SN 1543258.
(Superseded to 17631-329-013)

$

$

Not available

6

Honda 17631-329-013

GASKET, FUEL FILLER CAP (39X58X3)

$

$

Not available

7

Honda 19718-ZE3-H60

COVER, SNOW PLATE

$12.99

$

Usually ships in 3-6 days

0

8

Honda 91353-671-003

SEE PART DETAILS - PRI; O-RING (14MM) (ARAI) Use up to Engine SN 2949254.

$3.49

$

In Stock, Qty 14

0

9

Honda 93600-05010-0A

SEE PART DETAILS - PRI; SCREW, FLAT (5X10) (Honda Code 0181529).

$0.99

$

In Stock, only 4 left!

0

10

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0481143).

$1.49

$

In Stock, Qty 20+

0

11

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (Honda Code 5137104). (4.5X140)

$51.99

$

In Stock, Qty 7

0

12

Honda 95002-02080

CLIP, TUBE (B8) (Honda Code 0250647).

$2.49

$

In Stock, Qty 20+

0

13

Honda 95701-08028-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X28) (Honda Code 2581387).

$1.99

$

Usually ships in 3-6 days

0
